Modular Light. Seamless Recessed Integration.

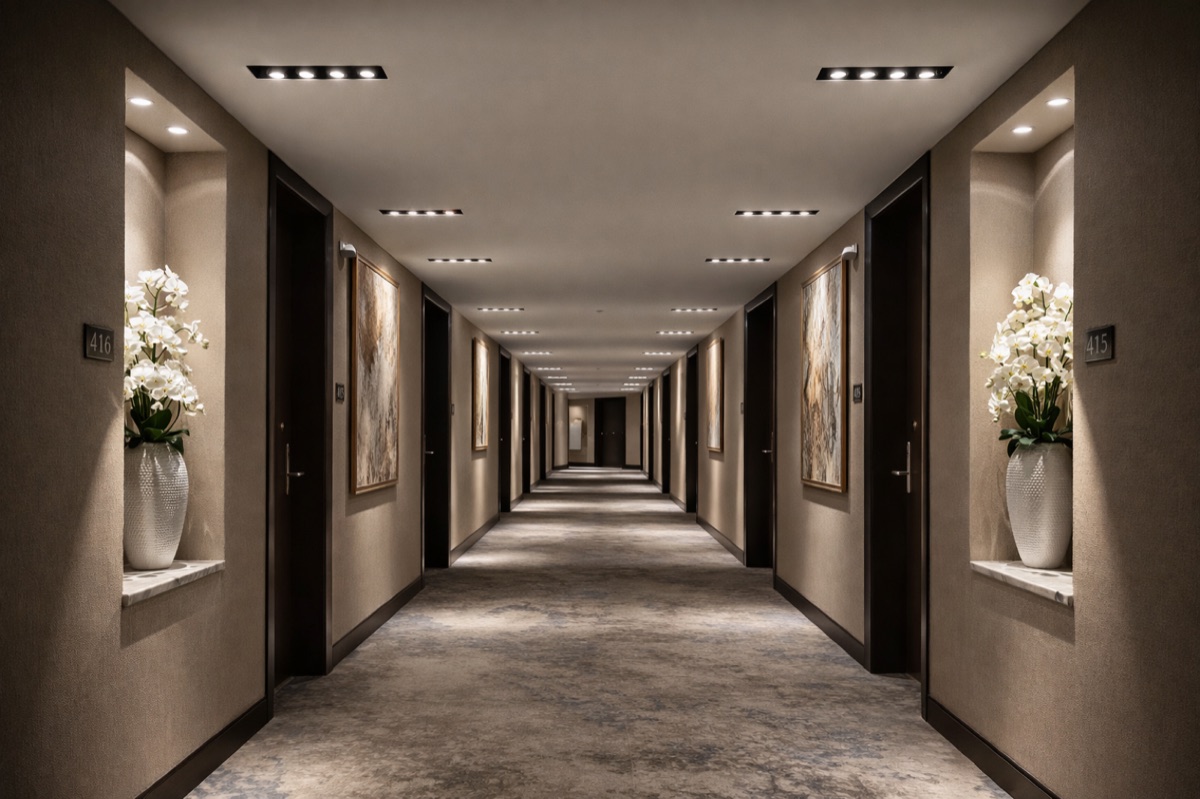

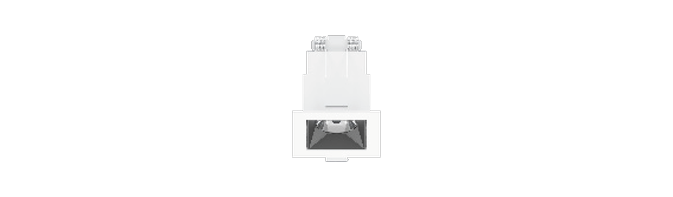

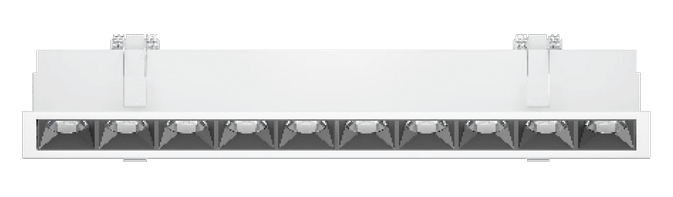

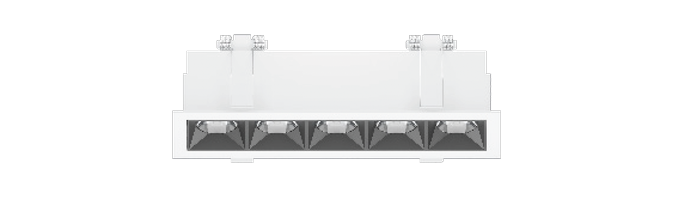

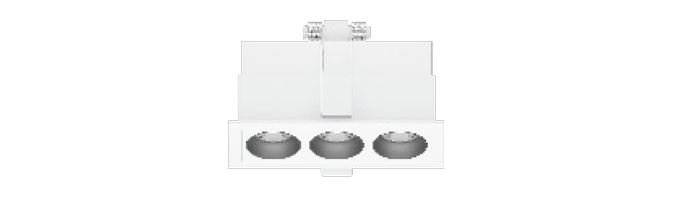

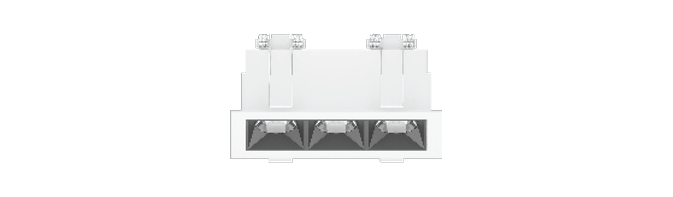

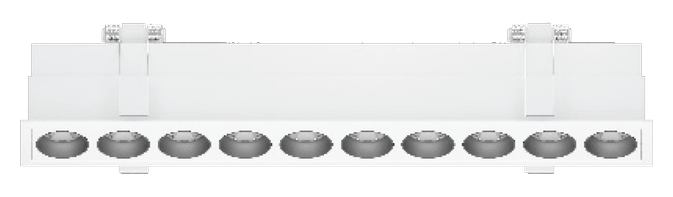

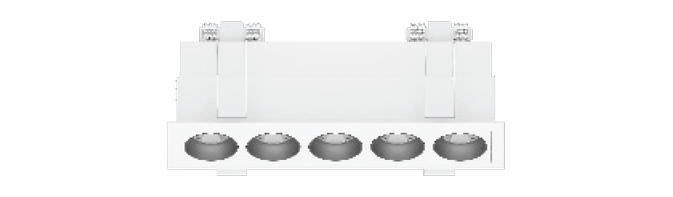

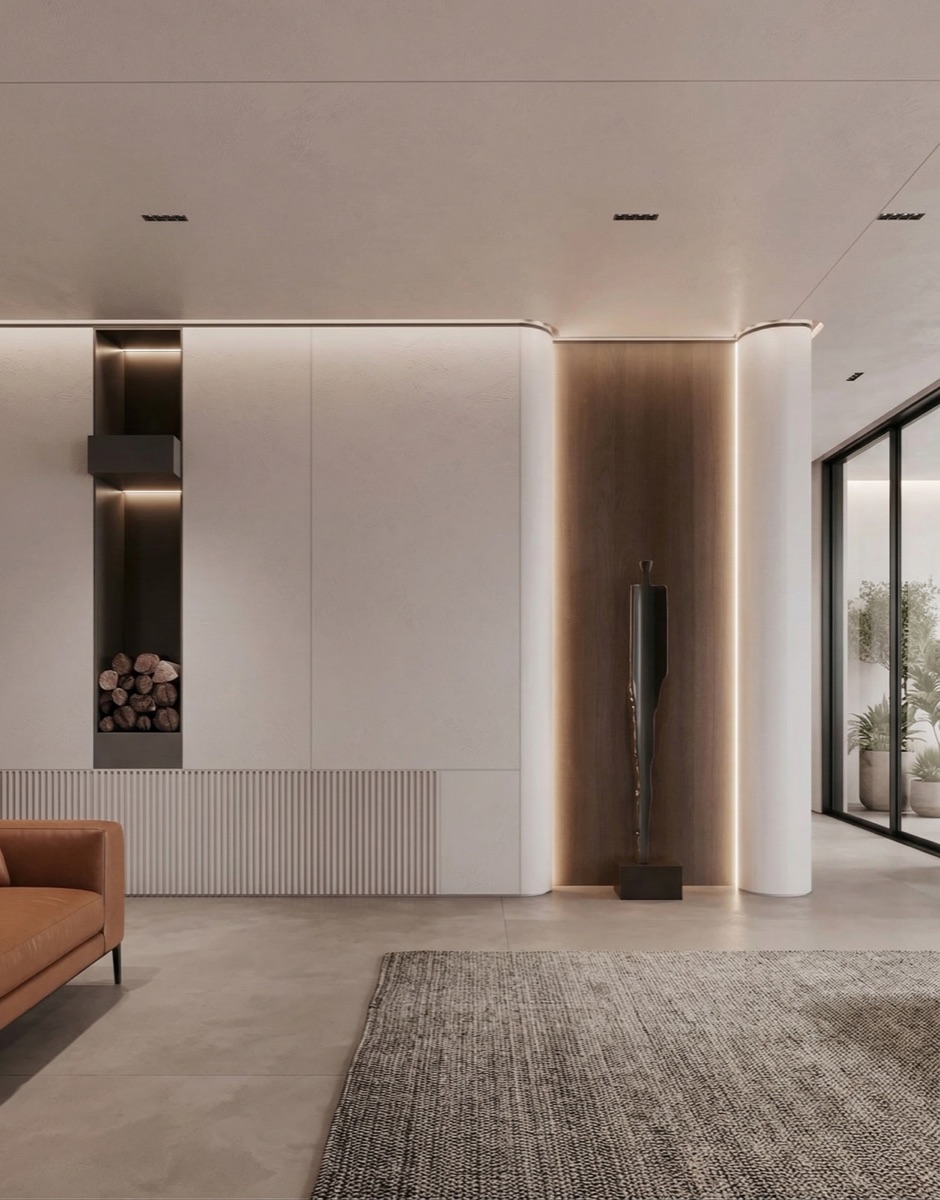

MINI S Recessed (NLC-MSR) is the recessed member of the MINI S modular linear family. It sinks flush into the ceiling with spring-clip fixing, leaving only a slim anti-glare aperture visible for a clean architectural look.
Offered in 7 power tiers from 5W to 40W delivering up to 3,485 lumens at 91 lm/W, with beam angles from 17° to 50° for accent, wall-wash, and general illumination. Features CRI >90 (optional >95) and comes backed by a 5-year warranty.
Also available in surface-mounted, tiltable and track-mounted versions.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >50,000 times |
| Housing | Aluminum |
| Mounting | Recessed (Spring Clips) |
| Optics | Lens (Anti-Glare) |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| LED Type | SMD |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >90 · Optional >95 |
| Dimming | Optional |
| Warranty | 5 Years |
| NLC-MSR (Recessed) | 5W–40W · from L56 × W56 × H63 mm up to L399 × W56 × H63 mm |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MSR 5W | 5W | 356 lm | 71 lm/W | 23° / 46° | >90 · >95 opt |
| NLC-MSR 8W | 8W | 560 lm | 70 lm/W | 19° / 36° / 49° | >90 · >95 opt |
| NLC-MSR 12W | 12W | 1,049 lm | 87 lm/W | 23° / 50° | >90 · >95 opt |
| NLC-MSR 13W | 13W | 913 lm | 70 lm/W | 17° / 37° / 50° | >90 · >95 opt |
| NLC-MSR 20W | 20W | 1,824 lm | 91 lm/W | 23° / 50° | >90 · >95 opt |
| NLC-MSR 24W | 24W | 1,802 lm | 75 lm/W | 18° / 36° / 50° | >90 · >95 opt |
| NLC-MSR 40W | 40W | 3,485 lm | 87 lm/W | 23° / 49° | >90 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance
