Modular Light. Clean Surface Mounting.

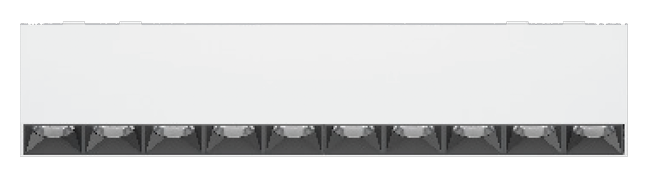

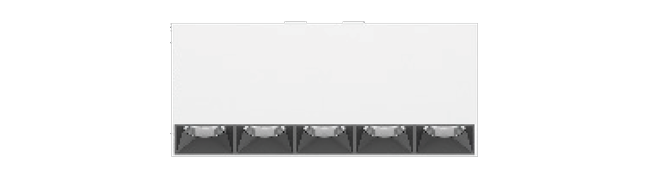

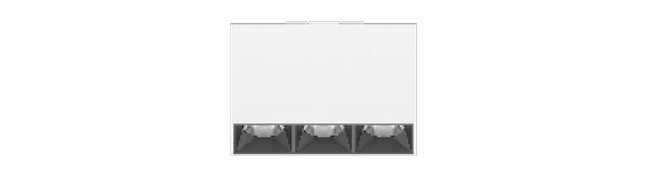

MINI S Surface (NLC-MSF) is the surface-mounted fixed version of the MINI S modular linear family. Its low-profile aluminum housing mounts directly onto ceilings and soffits where recessing is not possible, keeping the same miniature anti-glare optics.
Offered in 4 power tiers from 5W to 40W delivering up to 3,485 lumens at 91 lm/W, with 23°–50° beam angles for accent and general illumination. Features CRI >90 (optional >95) and comes backed by a 5-year warranty.
Also available in recessed, tiltable and track-mounted versions.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >50,000 times |
| Housing | Aluminum |
| Mounting | Surface-Mounted Fixed |
| Optics | Lens (Anti-Glare) |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| LED Type | SMD |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >90 · Optional >95 |
| Dimming | Optional |
| Warranty | 5 Years |
| NLC-MSF (Surface Fixed) | 5W–40W · from L102 × W42 × H61 mm up to L385 × W44 × H75 mm |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MSF 5W | 5W | 356 lm | 71 lm/W | 23° / 46° | >90 · >95 opt |
| NLC-MSF 12W | 12W | 1,049 lm | 87 lm/W | 23° / 50° | >90 · >95 opt |
| NLC-MSF 20W | 20W | 1,824 lm | 91 lm/W | 23° / 50° | >90 · >95 opt |
| NLC-MSF 40W | 40W | 3,485 lm | 87 lm/W | 23° / 49° | >90 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance
