Focused power for every project.

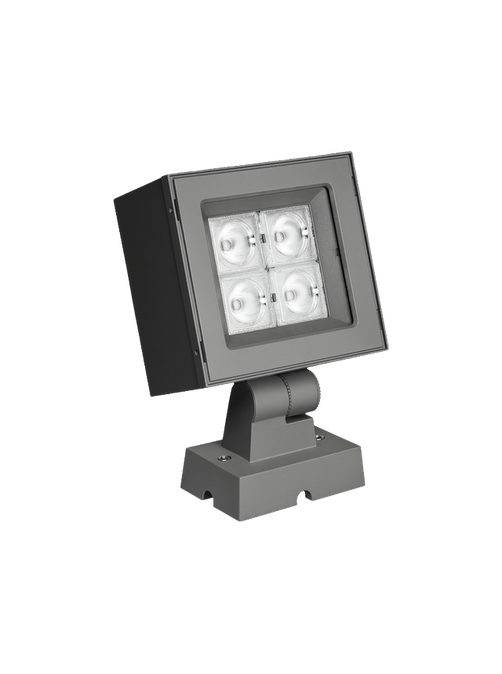

HERO-SM is a compact LED floodlight featuring a multi-lens optical system and a sturdy adjustable base. It delivers controlled, uniform illumination with a durable die-cast aluminum design that ensures long-lasting performance.
Available in 17W (30° beam) and 30W (9° narrow spot) variants with four powder-painted body colors and optional dimming.
| Input Voltage | 100–240VAC · 50/60Hz |
| THD | <20 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Optional |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Dimensions (17W) | W214.5 × H120 × L120 mm |
| Dimensions (30W) | W252 × H120 × L160 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted (multi-lens system, adjustable base) |
| Optics | Tempered Glass |
| Body Finish | Powder Painting |
| Body Colors | Bronze · Black · White · Dark Gray |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| Switching Cycles | >15,000 times |
| Dimming | Optional |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-HOS 17W-4K | 17W | 1,206 lm | 30° | ≥80 | 70.9 lm/W |
| NLC-HOS 30W-4K | 30W | 2,632 lm | 9° | ≥80 | 87.7 lm/W |
* Values based on CCT 3000K | ±10% tolerance
