Reliable Light for Every Road.

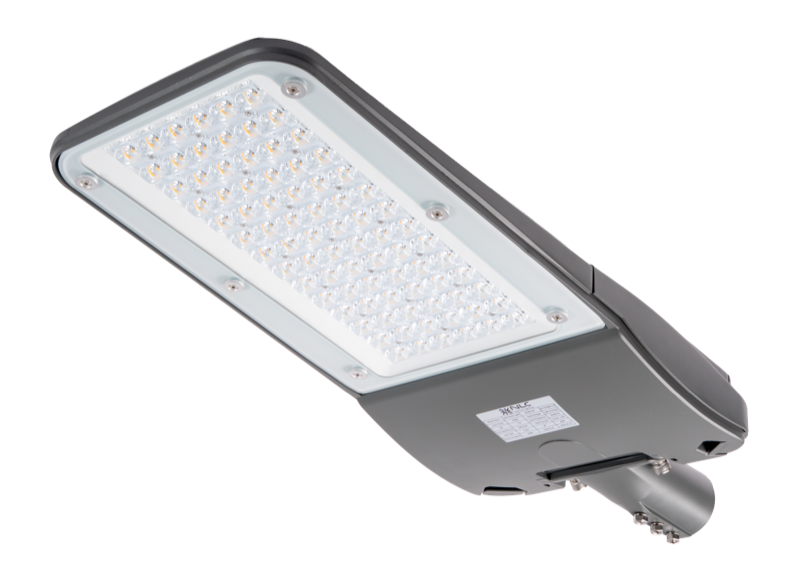

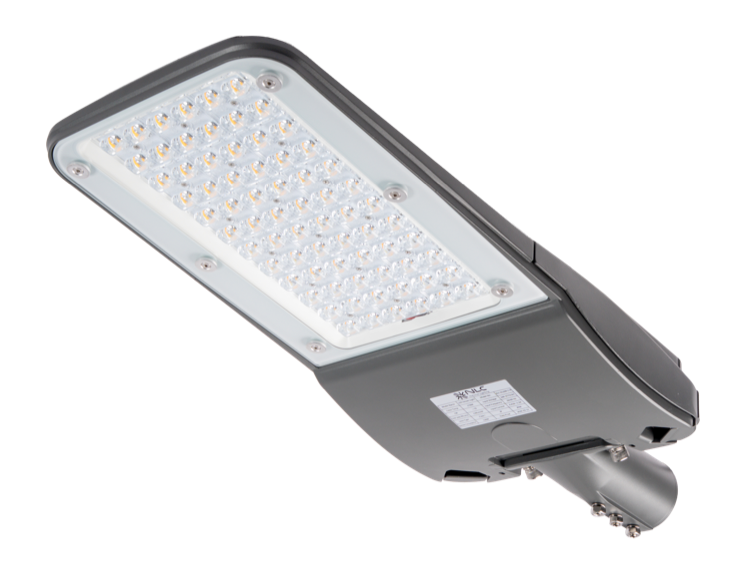

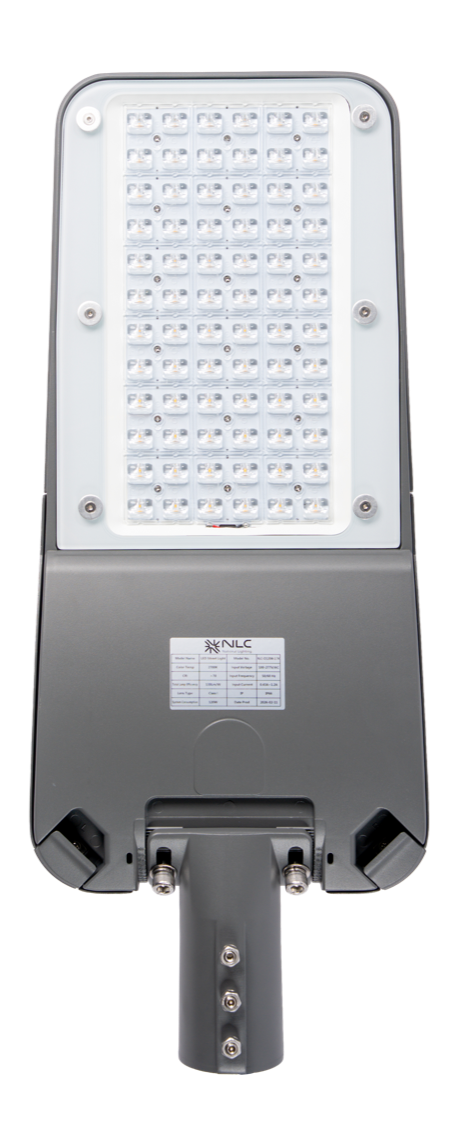

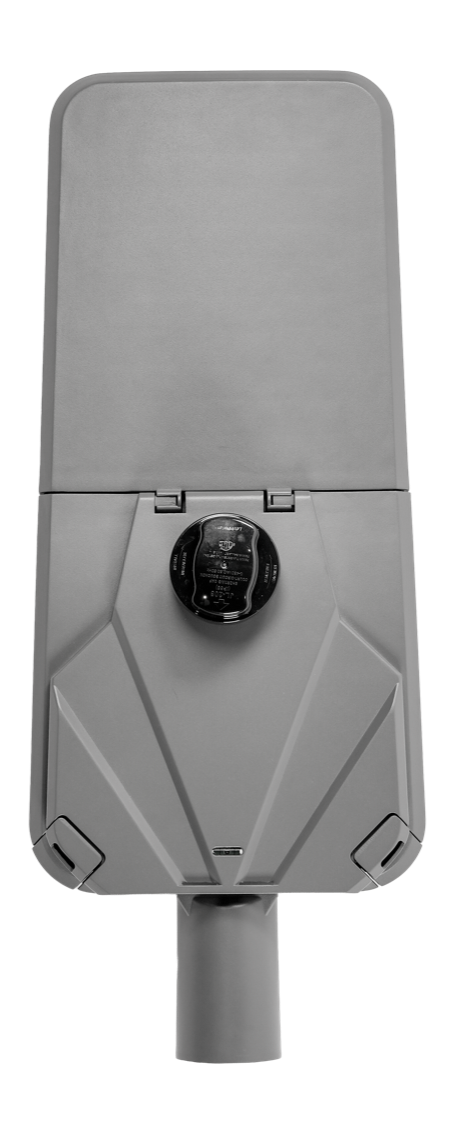

COMET is a high-performance LED street luminaire built for highways, urban roads, bridges, and large public spaces. Its smooth, dust-free die-cast aluminum housing carries an IP66 / IK09 rating for years of reliable outdoor service. The adjustable fitter supports both side-entry and vertical pole mounting for project flexibility.

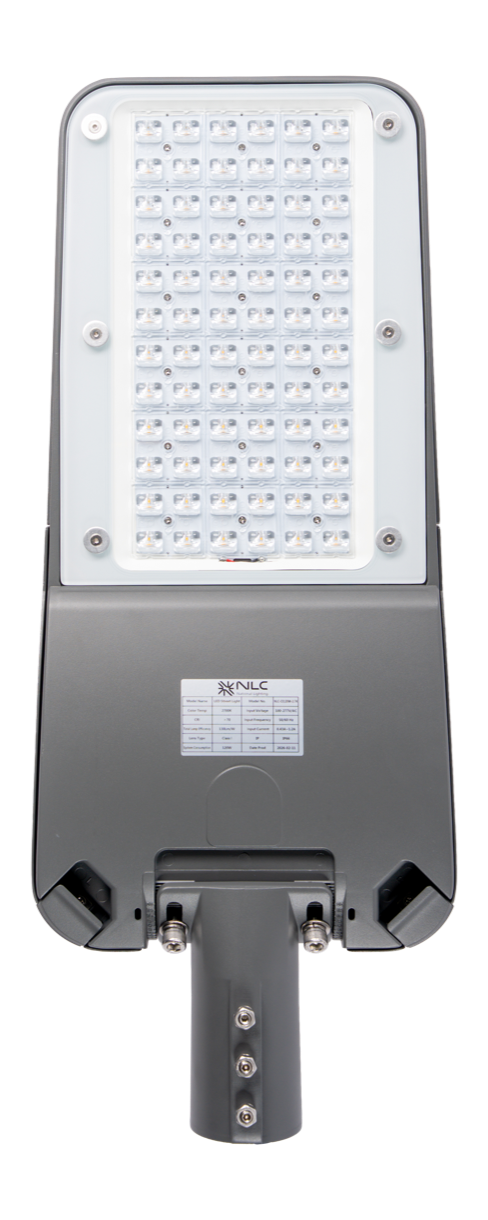

Available in 8 power tiers from 50W to 300W producing 6,500 to 36,000 lumens at up to 130 lm/W, with CREE XP-G3 SMD3535 LEDs and SDCM <5 color consistency. Standard 0–10V dimming with optional 1–10V or DALI, plus ZHAGA socket / photocell / smart-controller integration on request. 10kV surge standard, 20kV optional.
| Input Voltage | 100–240VAC / 277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 10kV (Standard) · 20kV (Optional) |
| Electrical Class | Class I |
| Dimming | 0–10V (Standard) · 1–10V · DALI |

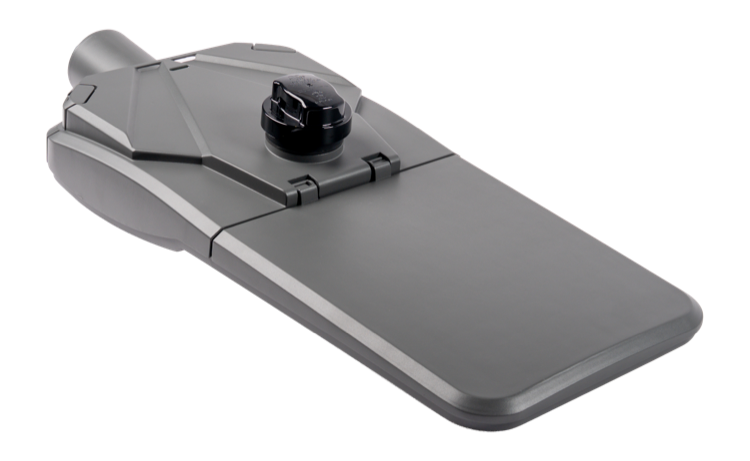

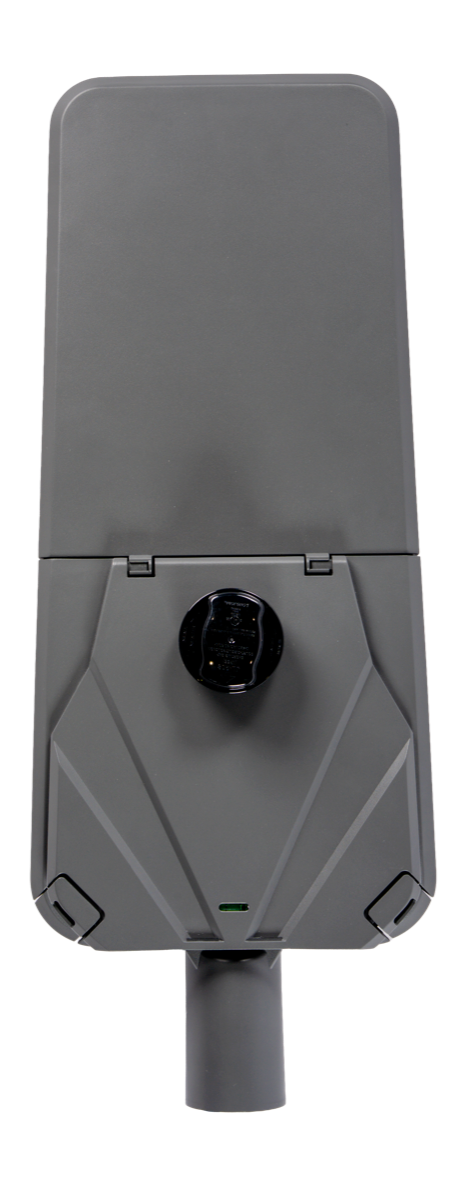

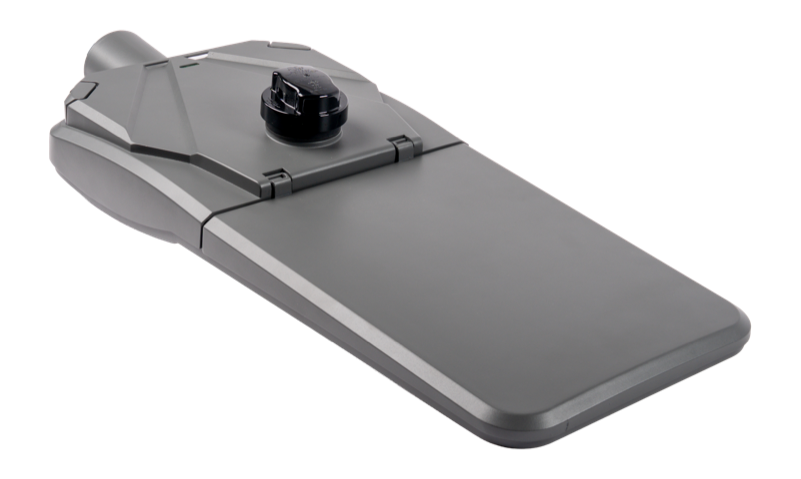

| Smart Controls | ZHAGA Socket · Photocell · Smart Controller (on request) |
| Flicker-Free | Yes |
| Working Temperature | -40°C to +55°C |
| Operating Humidity | 10–90% RH |
| Ingress Protection | IP66 |
| Impact Resistance | IK09 |
| SDCM (Color Consistency) | <5 |
| Switching Cycles | >50,000 times |
| Housing | Die-Cast Aluminum |
| Mounting | Side Entry / Vertical Pole |
| Optics | UV-Resistant Polycarbonate / PMMA |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Color | Gray (other colors on request) |
| Beam Angles | All types available |
| LED Type | SMD3535 · CREE XP-G3 |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >70 · Optional >80 |
| Switching Cycles | >50,000 times |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-CE 50W | 50W | 6,500 lm | 130 lm/W | All types | >70 · >80 opt |
| NLC-CE 75W | 75W | 9,750 lm | 130 lm/W | All types | >70 · >80 opt |
| NLC-CE 100W | 100W | 13,000 lm | 130 lm/W | All types | >70 · >80 opt |
| NLC-CE 120W | 120W | 15,600 lm | 130 lm/W | All types | >70 · >80 opt |
| NLC-CE 140W | 140W | 18,200 lm | 130 lm/W | All types | >70 · >80 opt |
| NLC-CE 215W | 215W | 27,950 lm | 130 lm/W | All types | >70 · >80 opt |
| NLC-CE 280W | 280W | 33,600 lm | 120 lm/W | All types | >70 · >80 opt |
| NLC-CE 300W | 300W | 36,000 lm | 120 lm/W | All types | >70 · >80 opt |
* Values based on CCT 2700K | ±5% tolerance | Dimensions vary by power tier, 50W: L563×W215, 75W: L595×W255, 100W: L645×W255, 120W: L695×W280, 140W: L760×W300, 215–300W: L835×W335 mm.
