Strong illumination in a smart form.

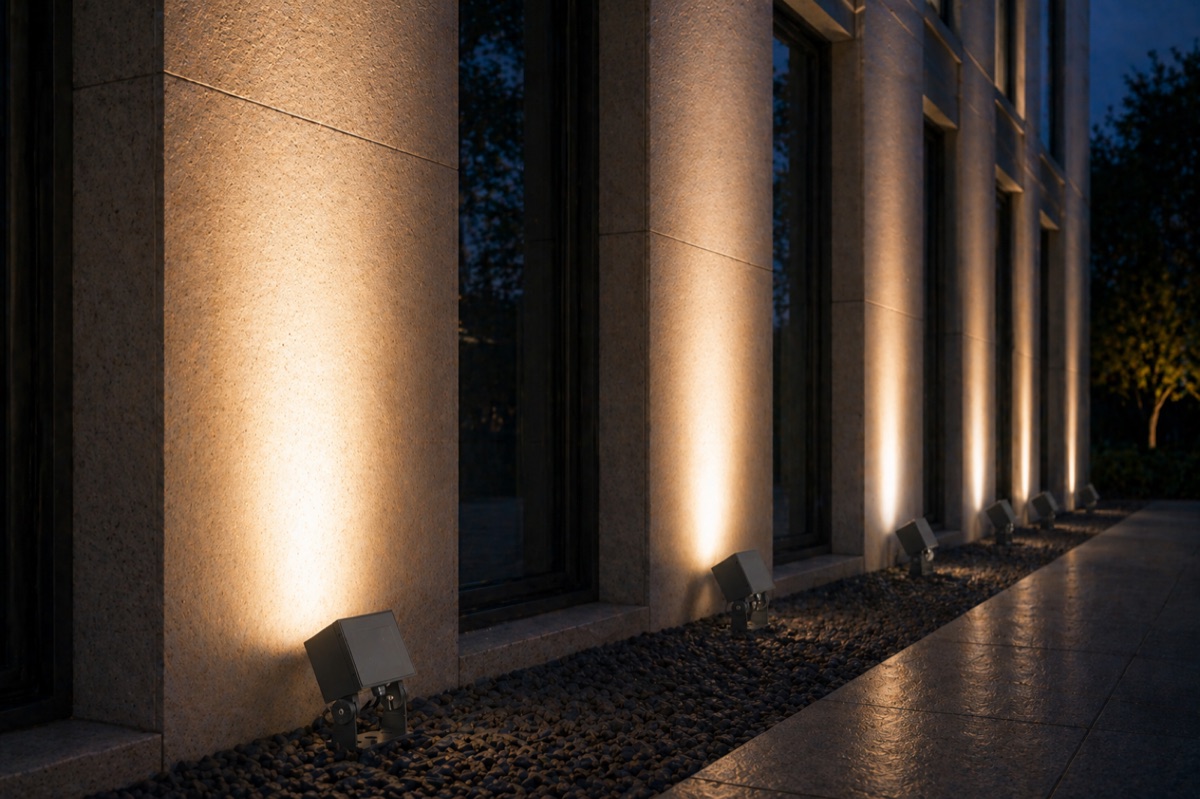

HERO-ASM is a compact LED floodlight with an asymmetric beam pattern, designed for reliable, uniform illumination. Its sturdy die-cast aluminum construction and adjustable bracket make it ideal for highlighting architectural elements, pathways, and outdoor features with clean, consistent light.
Available in 12.6W and 21W with four powder-painted body colors and optional dimming.
| Input Voltage | 100–240VAC · 50/60Hz |
| Power Factor | >0.86 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Dimming | Optional |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP66 |
| Impact Resistance | IK06 |
| Dimensions (12.5W) | W120 × L75 × H190.7 mm |
| Dimensions (21W) | W160 × L80 × H238.4 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Surface Mounted |
| Optics | Tempered Glass |
| Body Finish | Powder Painting |
| Body Colors | Bronze · Black · White · Dark Gray |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| Switching Cycles | >15,000 times |
| Dimming | Optional |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-HOA 12.5W-4K | 12.6W | 730 lm | 72°×42° | ≥80 | 57.93 lm/W |
| NLC-HOA 21W-4K | 21W | 1,533 lm | 79°×49° | ≥80 | 73 lm/W |
* Values based on CCT 3000K | ±10% tolerance
