Powerful Focus. Precise Illumination.

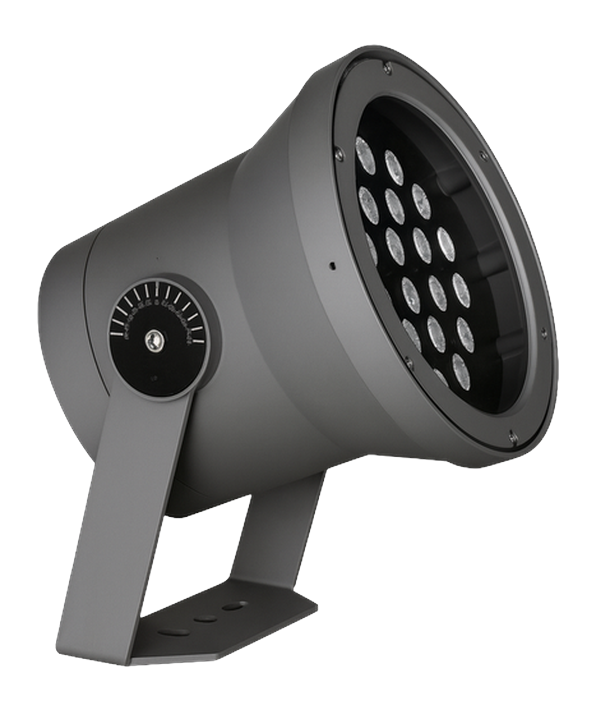

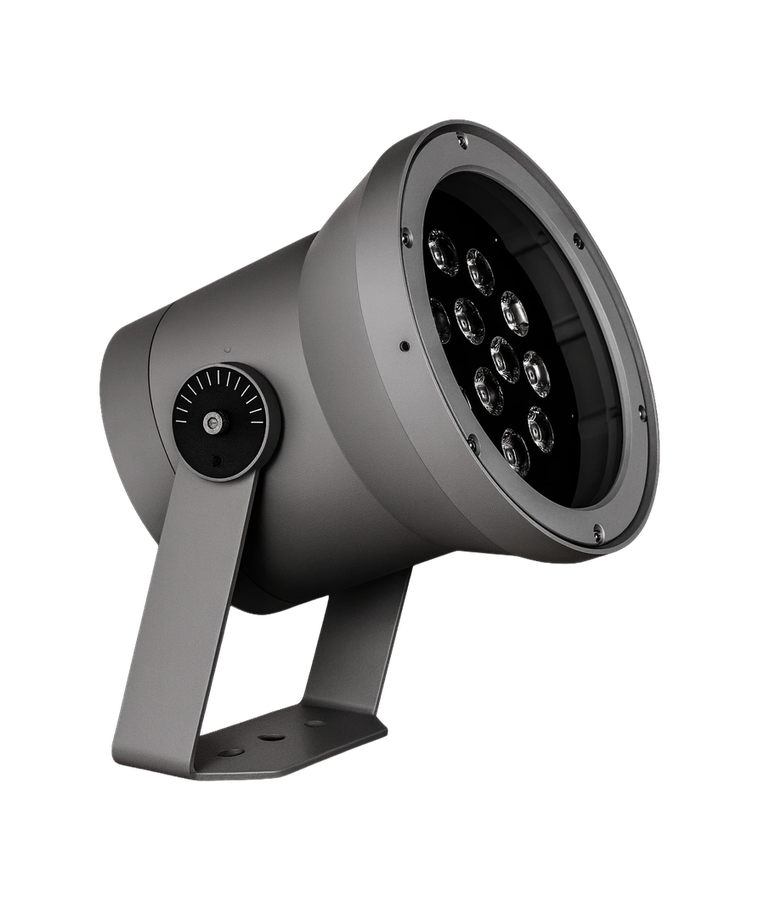

BUCKET is a outdoor spotlight designed for powerful, focused illumination. Its adjustable bracket and solid die-cast aluminum construction ensure reliable performance, making it ideal for highlighting architectural and landscape features at distance.
Available in 90W and 135W variants with 5 beam-angle options. Optional accessories include hood and anti-glare louver for precise light control.
| Input Voltage | 100–240VAC · 50/60Hz |
| Power Factor | >0.9 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP66 |
| Impact Resistance | IK07 |
| Dimensions | D250 × H333 × W222 mm (90W) / D300 × H390 × W260 mm (135W) |
| Housing | Die-Cast Aluminum |
| Mounting | Surface Mounted (adjustable bracket) |
| Optics | Tempered Glass |
| Body Finish | Powder Painting |
| Body Colors | Bronze · Black · White · Dark Gray |
| Accessories | Hood · Anti-glare Louver |
| LED Type | SMD |
| Lifetime | L70B50 > 35,000h |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-BUCKET 90W | 90W | 7,771 lm | 10°/15°/20°/30°/50° | ≥80 | 86 lm/W |
| NLC-BUCKET 135W | 135W | 11,234 lm | 10°/15°/20°/30°/50° | ≥80 | 83 lm/W |
* Values based on CCT 3000K | ±10% tolerance
