Bright. Solid. Simple.

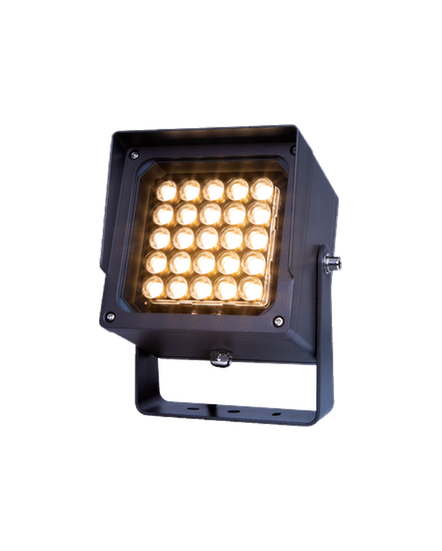

CUBE is an outdoor architectural spotlight built around a die-cast aluminum housing with a clear tempered-glass front protecting a 25W LED. Its square body sits on a right-angle U-bracket for smooth up/down aiming.

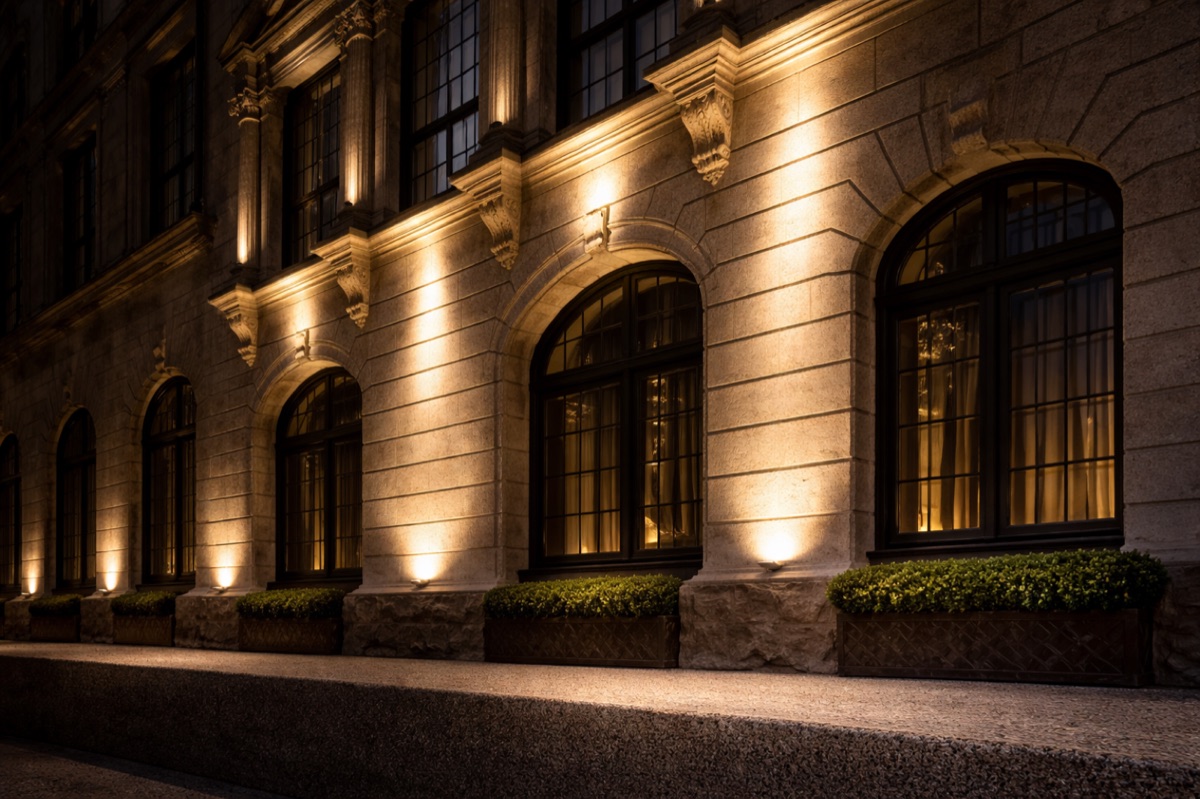

With the driver fully integrated and an IP65 / IK06 rating, CUBE offers reliable, weather-resistant performance, perfect for accenting trees, façades, landscape elements, and garden features. Choose from five beam angles (10° / 15° / 25° / 40° / 60°) to suit any aiming requirement.
| Input Voltage | 220–240V · 50/60Hz |
| Power Factor | >0.80 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK06 |
| Switching Cycles | >15,000 times |
| Housing | Die-Cast Aluminum |
| Mounting | Surface (with adjustable U-bracket) |
| Optics | Tempered Glass |
| Body Finish | Powder-Coated |
| Body Colors | Dark Gray · Black · White · Corten · Silver |
| Dimensions | L1 145 / L2 164 × W133 × H193 mm |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| CRI | Standard >80 |
| Switching Cycles | >15,000 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-CU 25W | 25W | 2,250 lm | 90 lm/W | 10° / 15° / 25° / 40° / 60° | >80 |
* Values based on CCT 3000K | ±10% tolerance | Choose beam angle at order time.
