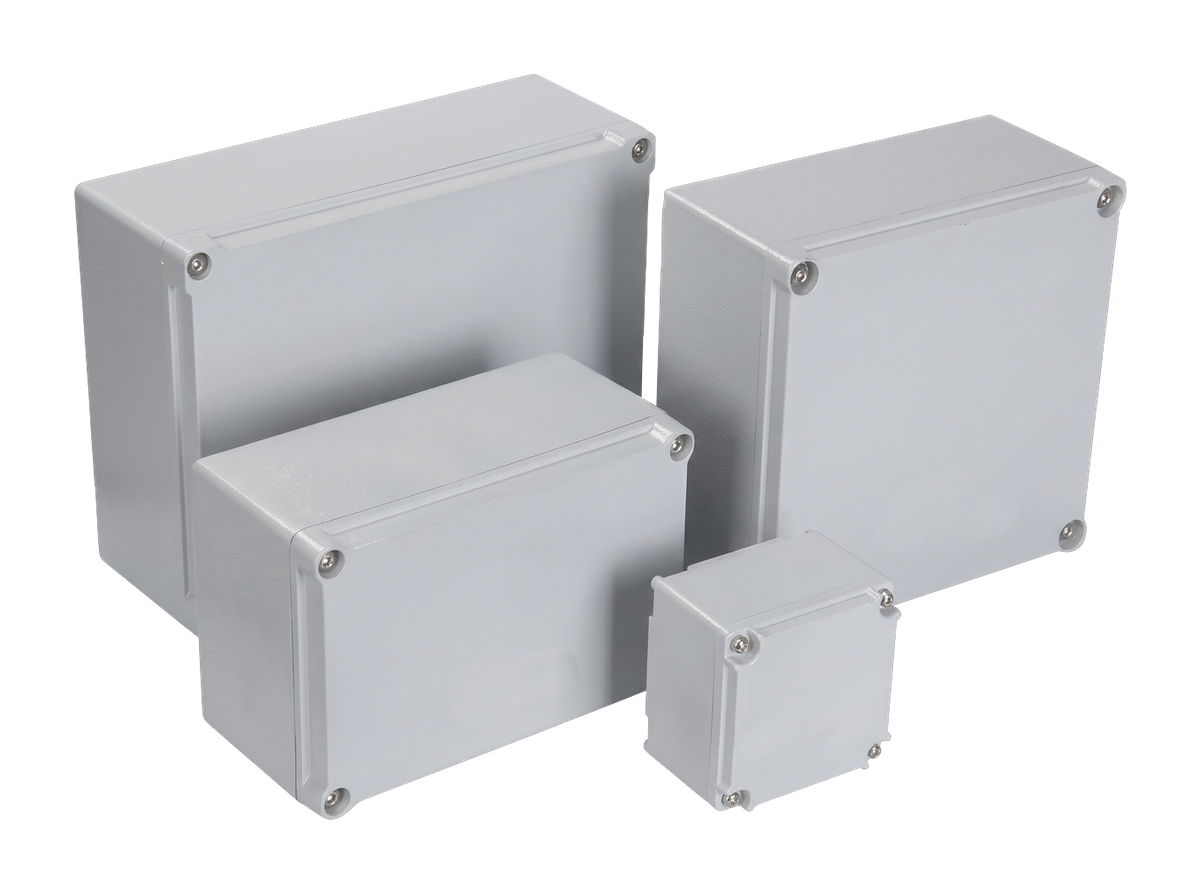

Increased-safety die-cast aluminium junction and terminal boxes for Zones 1, 2, 21 and 22, in seven certified shapes.
EX-PD66 is a range of die-cast aluminium (ADC12) junction and terminal boxes, Ex eb IIC T6…T4 Gb for gas Zones 1 and 2 and Ex tb IIIC T80 °C…T110 °C Db for dust Zones 21 and 22, sealed to IP65 with stainless exposed fasteners. The protection concept is increased safety: sparks and hot spots are prevented by certified terminals and controlled creepage and clearance, rather than contained.
Seven certified shapes run from 135 × 135 × 96 mm (66-A) to 400 × 500 × 150 mm (66-G), under certificate IECEx TUR 26.0013X. Each box is assembled to order with certified WDU / UK series terminals, at up to 690 V; the nameplate states the rating and ambient limits of the finished assembly.
| Gas marking | Ex eb IIC T6…T4 Gb |
| Dust marking | Ex tb IIIC T80 °C…T110 °C Db |
| Suitable zones | Zones 1, 2 (gas) · Zones 21, 22 (dust) |
| Certificate | IECEx TUR 26.0013X, Issue 0 · TÜV Rheinland Industrie Service |
| Ambient temperature | From -60 °C; upper limit +40 °C to +65 °C by assembly and current |
| Rated Voltage | Up to 690 V; the nameplate states each assembly's rating |
| Terminals | Certified WDU / UK series, types and quantities per shape |
| Ingress Protection | IP65 |
| Housing | Die-cast aluminium ADC12 |
| Fasteners | Stainless steel, exposed |
| Body sizes (L × W × H) | 135 × 135 × 96 mm to 400 × 500 × 150 mm |
| Specify with the order | Shape code · terminal types and quantities · conductor sizes · currents · entries (size, thread, position) · glands or plugs |
| Installation | Certified glands and blanking elements, IP65 minimum · clean with a damp cloth only · low mechanical risk locations |
Contact our engineering team to match the model to your area classification drawing and for ordering codes.
| Shape | Certified Body L × W × H | Overall (datasheet) |
|---|---|---|
| 66-A | 135 × 135 × 96 mm | 135 × 182 × 98 mm |
| 66-B | 135 × 200 × 100 mm | 135 × 247 × 102 mm |
| 66-C | 200 × 200 × 88 mm | 200 × 247 × 94 mm |
| 66-D | 200 × 300 × 148 mm | 200 × 386 × 163 mm |
| 66-E | 300 × 300 × 148 mm | 300 × 386 × 163 mm |
| 66-F | 300 × 400 × 148 mm | 300 × 486 × 163 mm |
| 66-G | 400 × 500 × 150 mm | 400 × 563 × 165 mm |
Dimensions in mm. Every box is assembled to order; the nameplate states the rating of the finished assembly.
