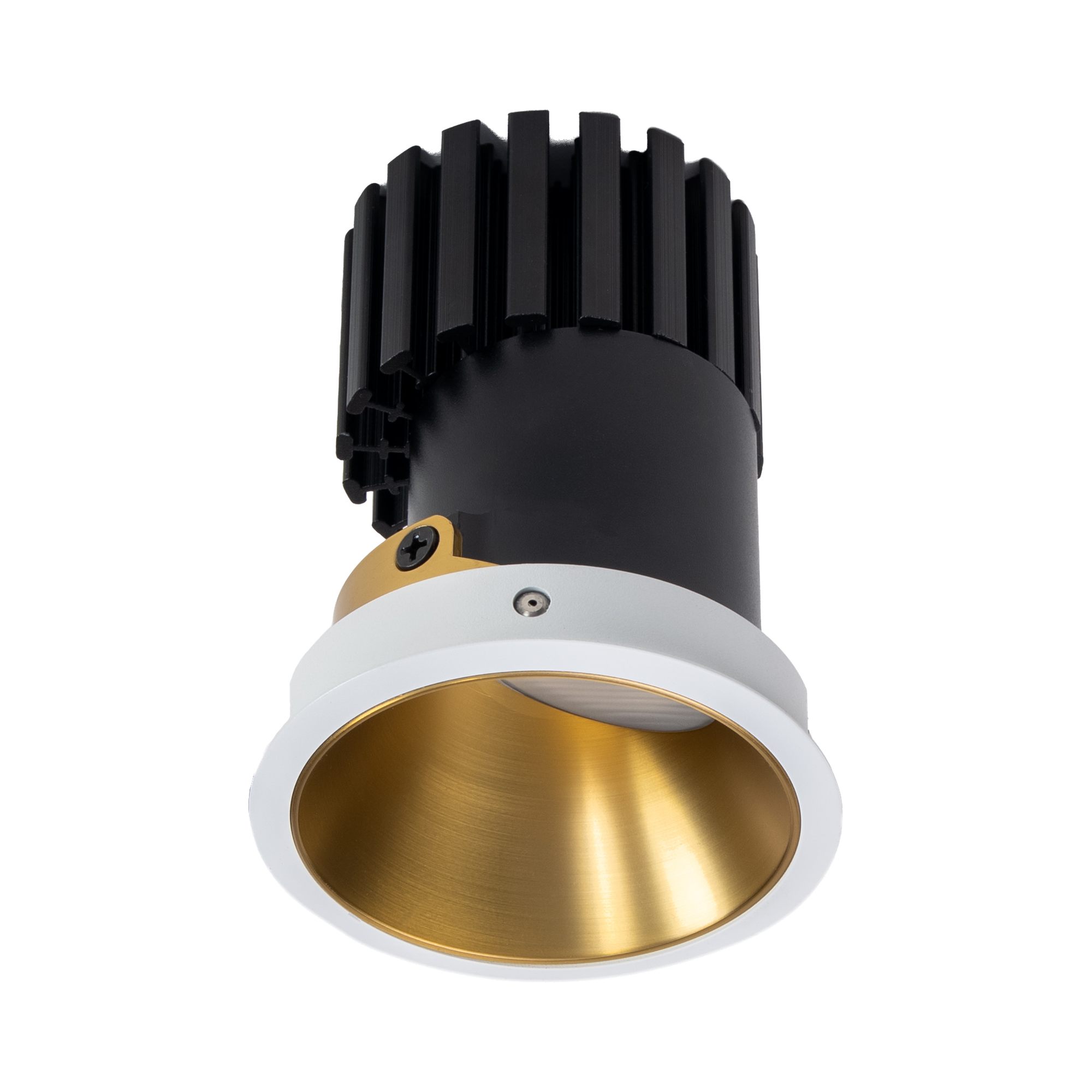

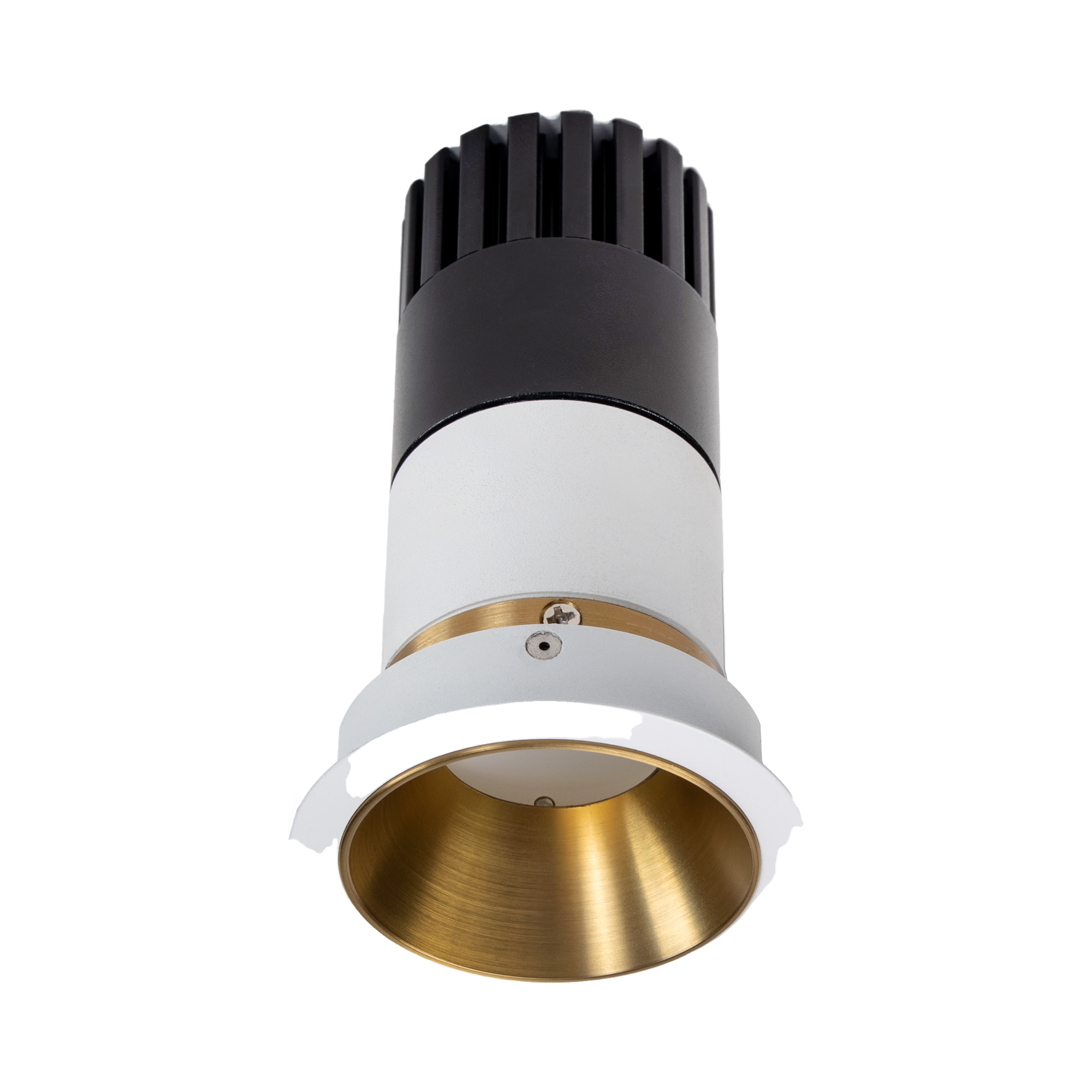

Down Light Luminaire, High Lumens with Anti-glare Reflector
BRASS is a recessed downlight with high-lumen output and a customized anti-glare reflector. Small cutout, high wattage, one product family meeting the requirements of different cutouts and illumination levels for any commercial space. Classic appearance, durable and practical.

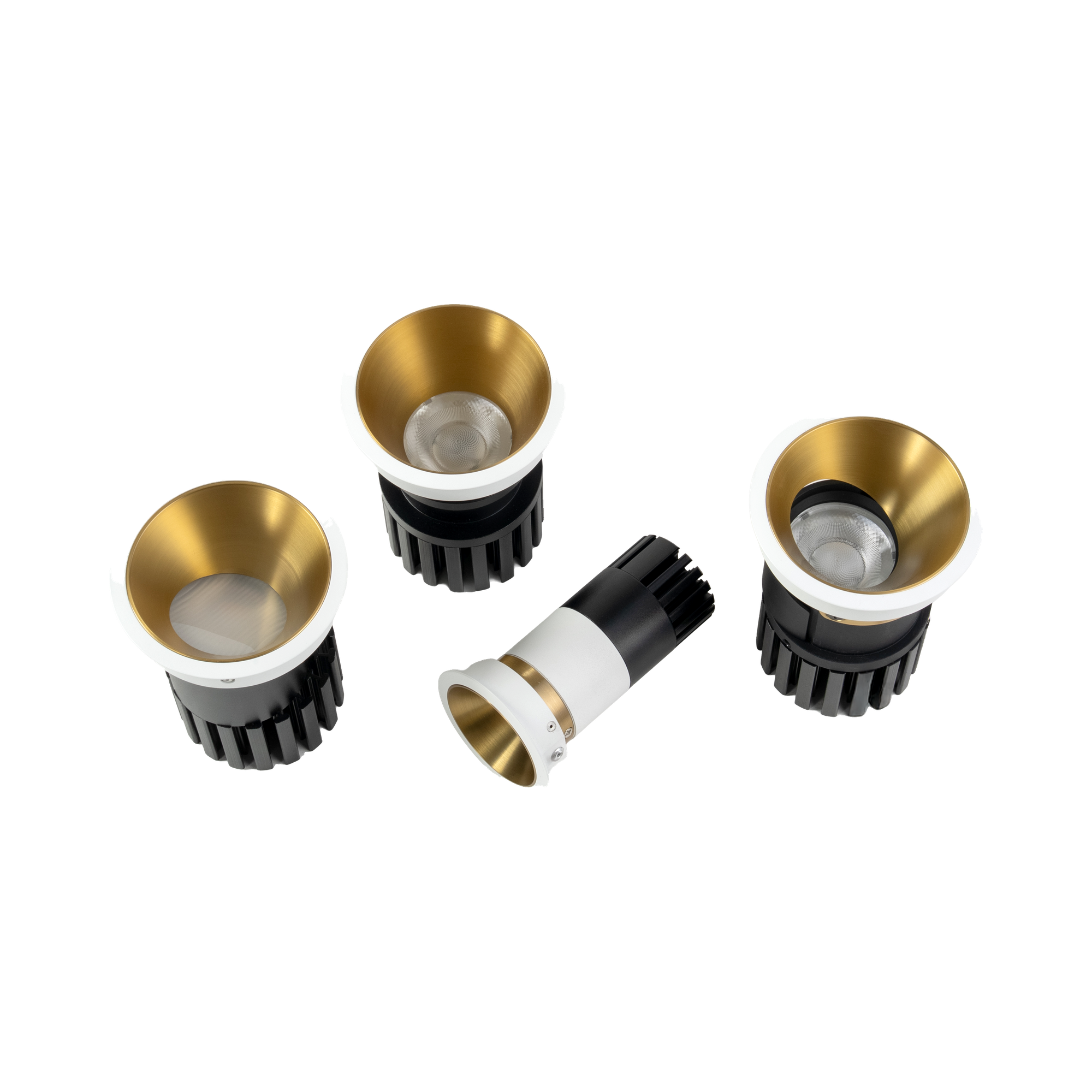

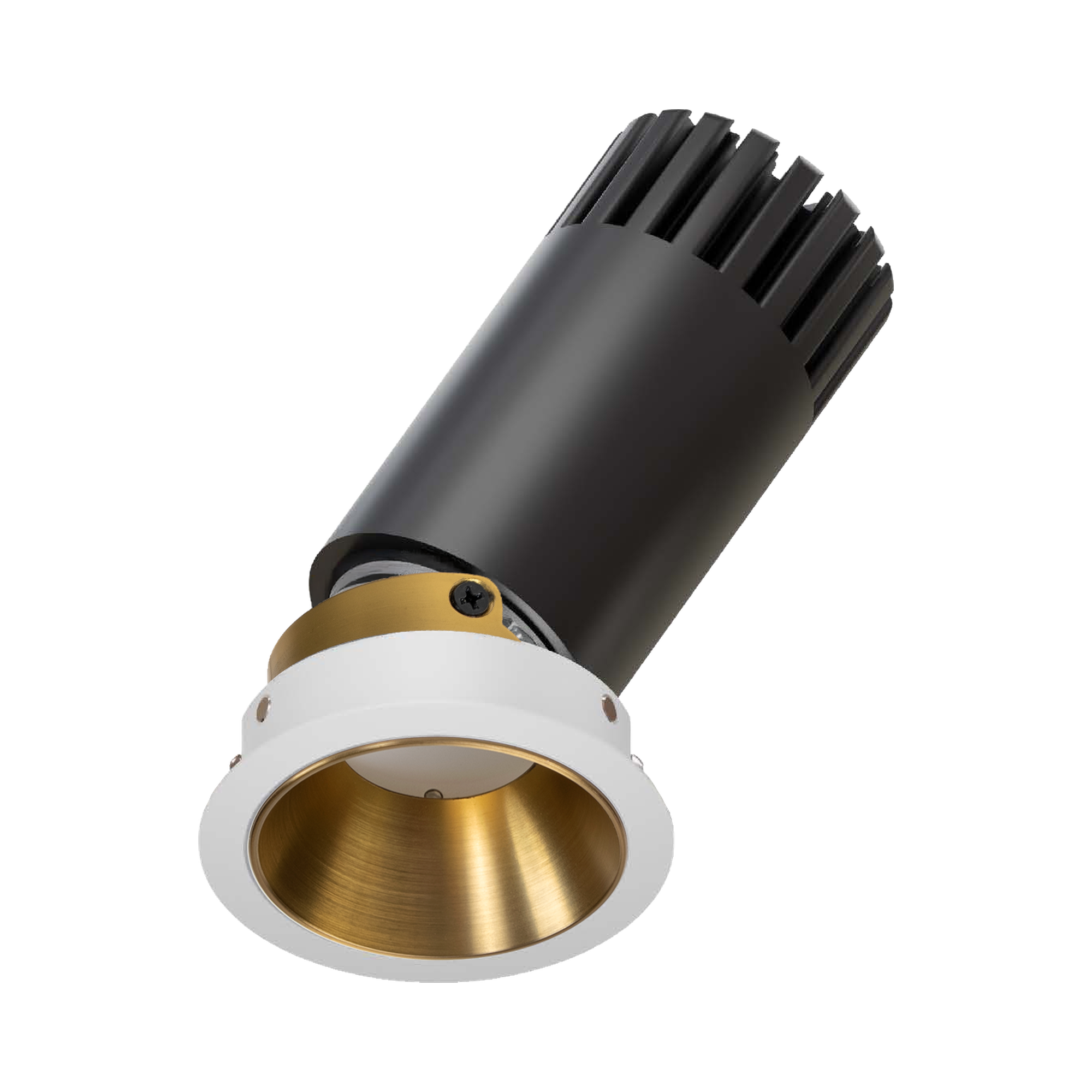

Three optical configurations: Fixed (15°–52°), Wall Washer (asymmetric), and Adjustable. UGR <19 with SDCM <3 ensures premium light quality for hospitality, retail, museum and office applications.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Dimming | Non-DIM · 0–10V · DALI-2 |
| Emergency Backup | Optional |
| UGR | <19 |
| SDCM | <3 |
| Working Temperature | -20°C to +45°C |
| Ingress Protection | IP20 |
| Impact Resistance | IK07 |
| Switching Cycles | >50,000 times |
| Dimensions (Fixed) | H90 × D65 cutout 55mm / H108 × D81 cutout 75mm / H133 × D110 cutout 100mm |
| Dimensions (Adjustable) | H93 × D65 cutout 55mm / H112 × D81 cutout 75mm / H142 × D110 cutout 100mm |
| Dimensions (Wall Washer) | H98 × D58 cutout 50mm / H136 × D75 cutout 65mm |
| Housing | Die-Cast Aluminum |
| Mounting | Recessed |
| Reflector | Aluminum Anti-glare |
| Body Finish | Electrostatically Applied Polyester Powder Coating |
| Body Colors | Black · White |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Switching Cycles | >50,000 times |
| CRI | Standard >90 · Optional >95 |
| Flicker Free | Yes |
| Warranty | 5 Years |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-BR Fixed | 9W | 656 lm | 15°–52° | ≥90 | 72.8 lm/W |
| NLC-BR Fixed | 15W | 1,624 lm | 15°–52° | ≥90 | 108.2 lm/W |
| NLC-BR Fixed | 28W | 3,235 lm | 15°–52° | ≥90 | 115.5 lm/W |
| NLC-BR Wall Washer | 10W | 420 lm | Asymmetric | ≥90 | 42 lm/W |
| NLC-BR Wall Washer | 15W | 1,179 lm | Asymmetric | ≥90 | 78.6 lm/W |
| NLC-BR Wall Washer | 28W | 1,842 lm | Asymmetric | ≥90 | 65.7 lm/W |
| NLC-BR Adjustable | 9W | 651 lm | 19°–52° | ≥90 | 72.3 lm/W |
| NLC-BR Adjustable | 15W | 1,604 lm | 19°–52° | ≥90 | 106.9 lm/W |
| NLC-BR Adjustable | 28W | 3,172 lm | 19°–52° | ≥90 | 113.2 lm/W |
| NLC-BR Adjustable | 8W | 631 lm | 19°–52° | ≥90 | 78.8 lm/W |
| NLC-BR Adjustable | 14W | 1,233 lm | 19°–52° | ≥90 | 88 lm/W |
* Values based on CCT 4000K | ±10% tolerance
