Where Design Meets Efficiency.

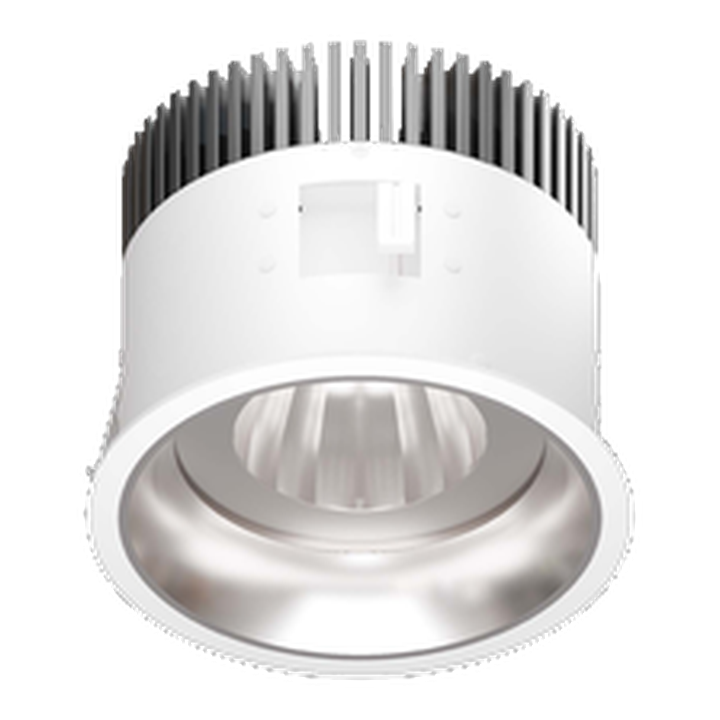

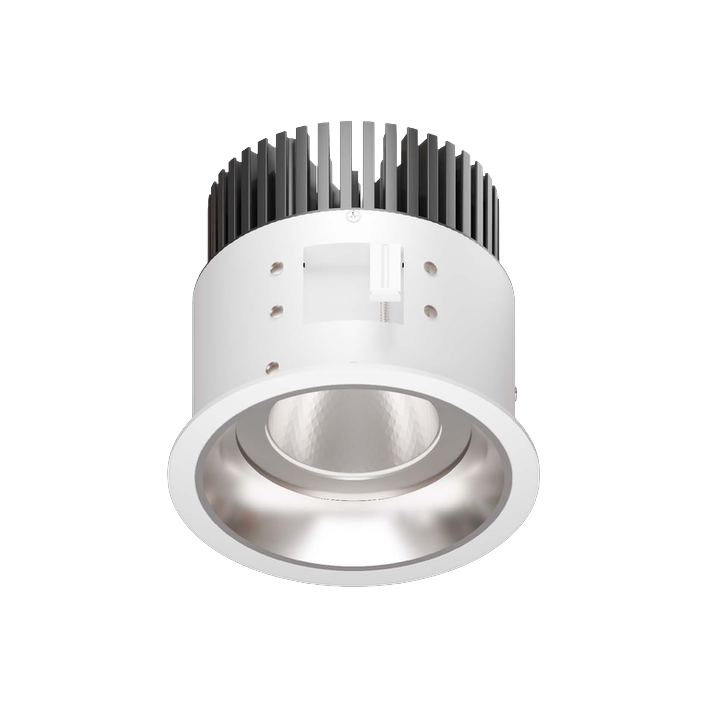

HIGH BEAM is a compact recessed COB LED downlight built for efficient heat dissipation and consistent, high-quality illumination. Its stout housing, strong mounting clips, and integrated anti-drop safety hook make it a reliable choice for ceilings where secure fixation and serviceability matter.
Available in 40W (4,769 lm, 119 lm/W) and 60W (7,546 lm, 126 lm/W) with multiple beam-angle selections. Features CRI >90 (optional >95), COB light source, full CCT range, and a 5-year warranty.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >50,000 |
| Housing | Aluminum |
| Mounting | Recessed |
| Optics | Lens |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| Dimensions (40W) | D123 × H110 mm |
| Dimensions (60W) | D150 × H124 mm |
| Safety | Anti-drop safety hook · strong mounting clips |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >90 · Optional >95 |
| Switching Cycles | >50,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-HB 40W | 40W | 4,769 lm | 119 lm/W | 22° / 42° / 60° | >90 · >95 opt |
| NLC-HB 60W | 60W | 7,546 lm | 126 lm/W | 21° / 38° / 56° / 66° | >90 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance
