Elegance Scaled to Perfection

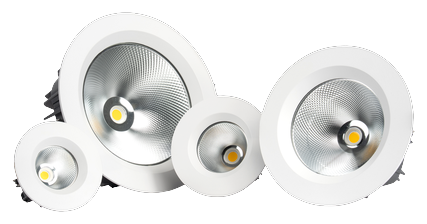

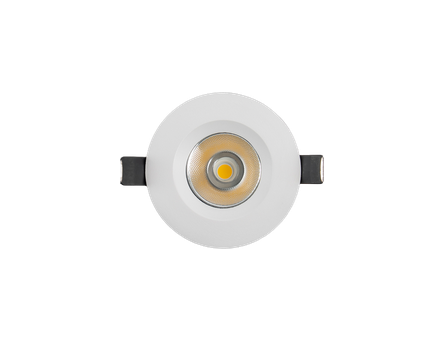

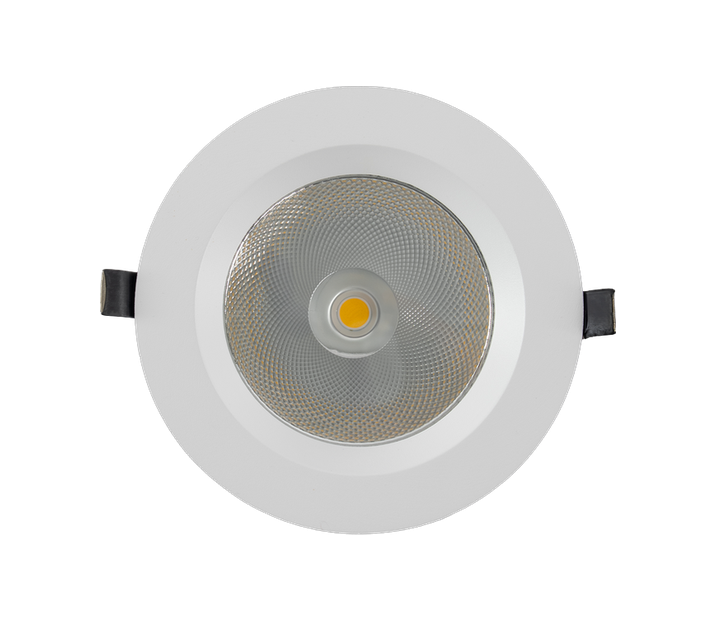

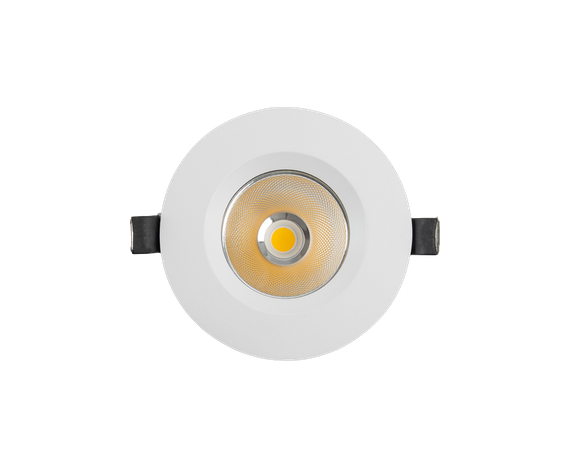

ALPHA is a refined recessed-mounted COB downlight defined by clean geometry and high-performance output. Available in a single, unified design with multiple size options, this luminaire ensures visual consistency across every space while offering complete flexibility in lighting layout.

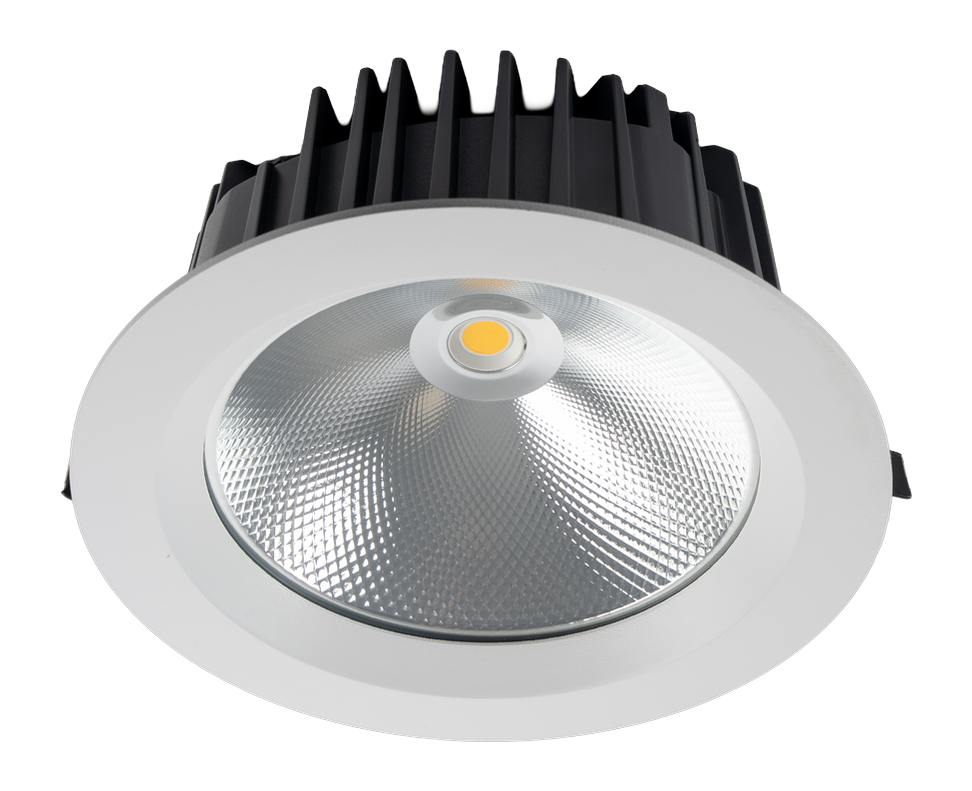

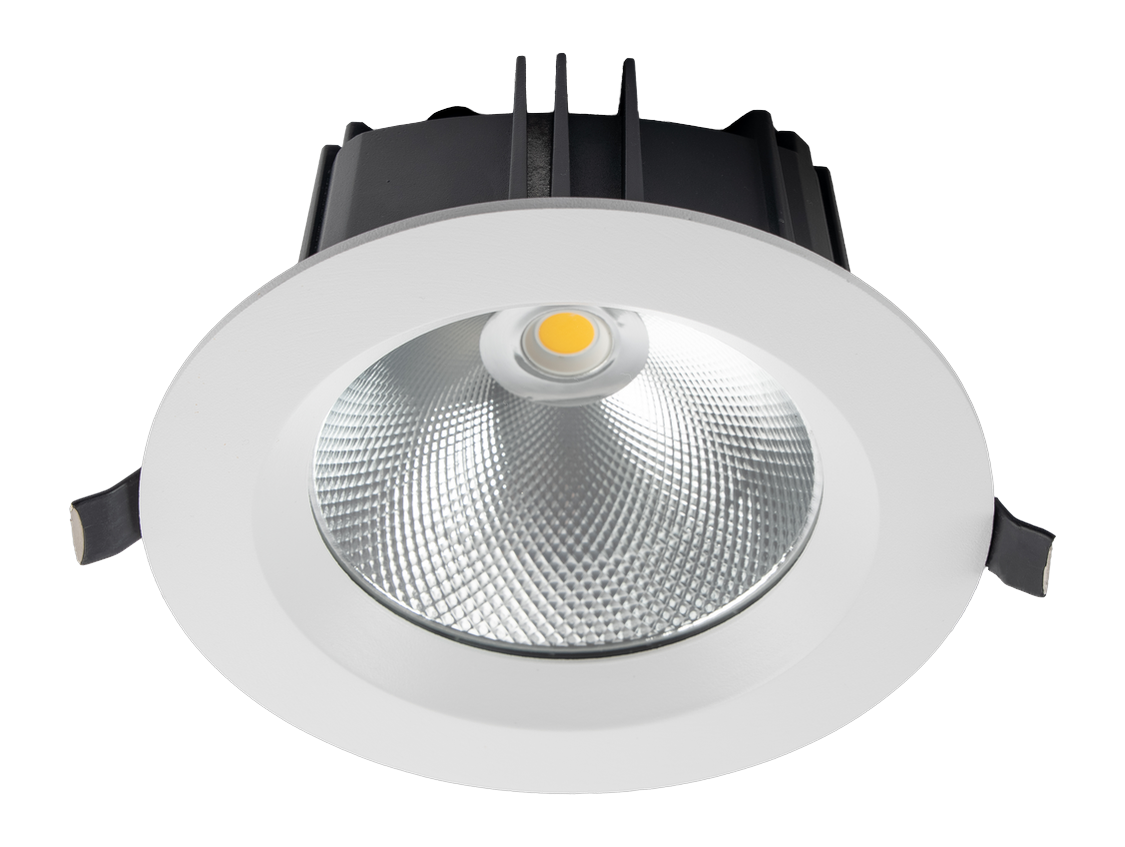

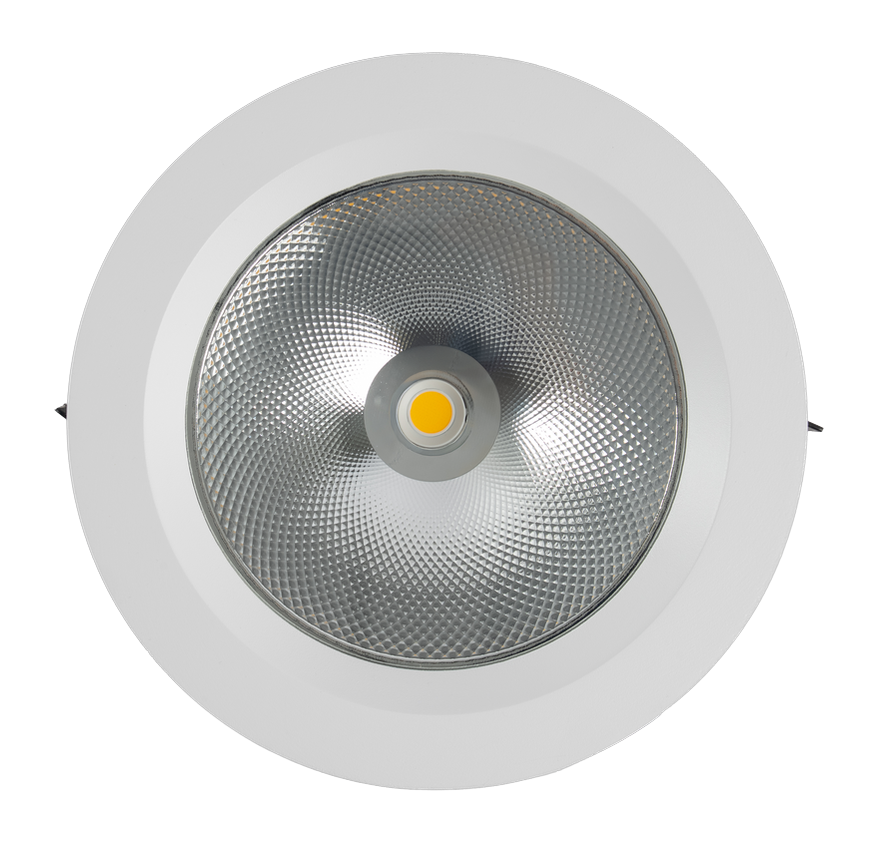

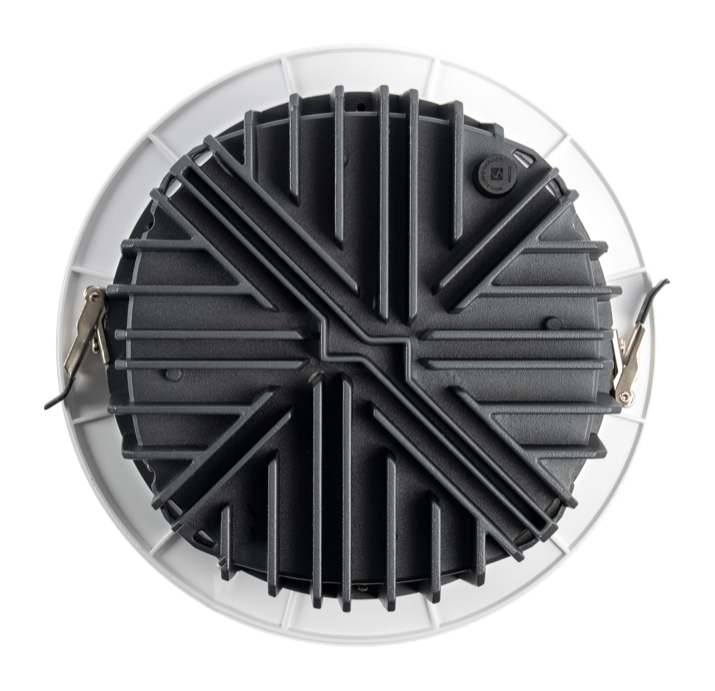

Engineered with die-cast aluminum housing and aluminum reflector optics for superior heat dissipation, ALPHA delivers premium light quality (CRI >90 standard, >95 optional) across power ranges from 10W to 40W.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP65 |
| NLC-AP10W | D95 × H50.5 mm · Cutout 75 mm |
| NLC-AP20W | D120 × H63.5 mm · Cutout 95 mm |
| NLC-AP30W | D170 × H75 mm · Cutout 145 mm |
| NLC-AP40W | D225 × H95.5 mm · Cutout 195 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Recessed |
| Optics | Aluminum Reflector |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black · Gray · White |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Switching Cycles | >50,000 times |
| Dimming | Optional |
| Emergency Backup | Optional |
| Flicker Free | Yes |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-AP10W | 10W | 120 lm/W | 1,200 lm | 27° | >90 std · >95 opt |
| NLC-AP20W | 20W | 125 lm/W | 2,500 lm | 27° | >90 std · >95 opt |
| NLC-AP30W | 30W | 125 lm/W | 3,750 lm | 27° | >90 std · >95 opt |
| NLC-AP40W | 40W | 130 lm/W | 5,200 lm | 93° | >90 std · >95 opt |
* Values based on CCT 4000K | ±10% tolerance
