High Lumens. Small Cut-Out. Serious Performance.

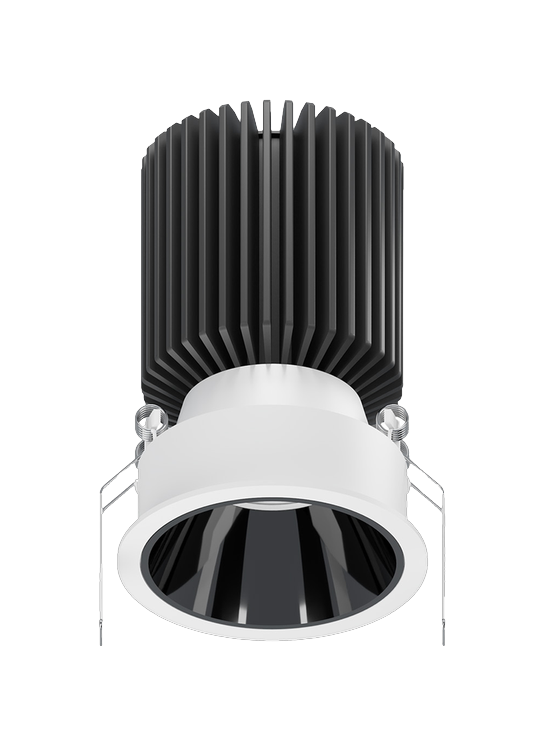

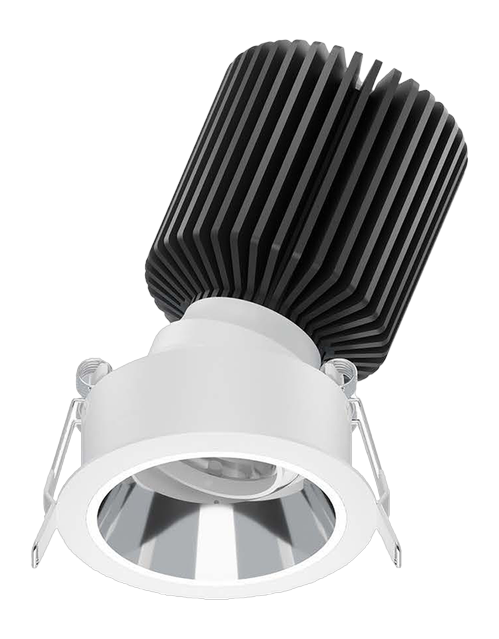

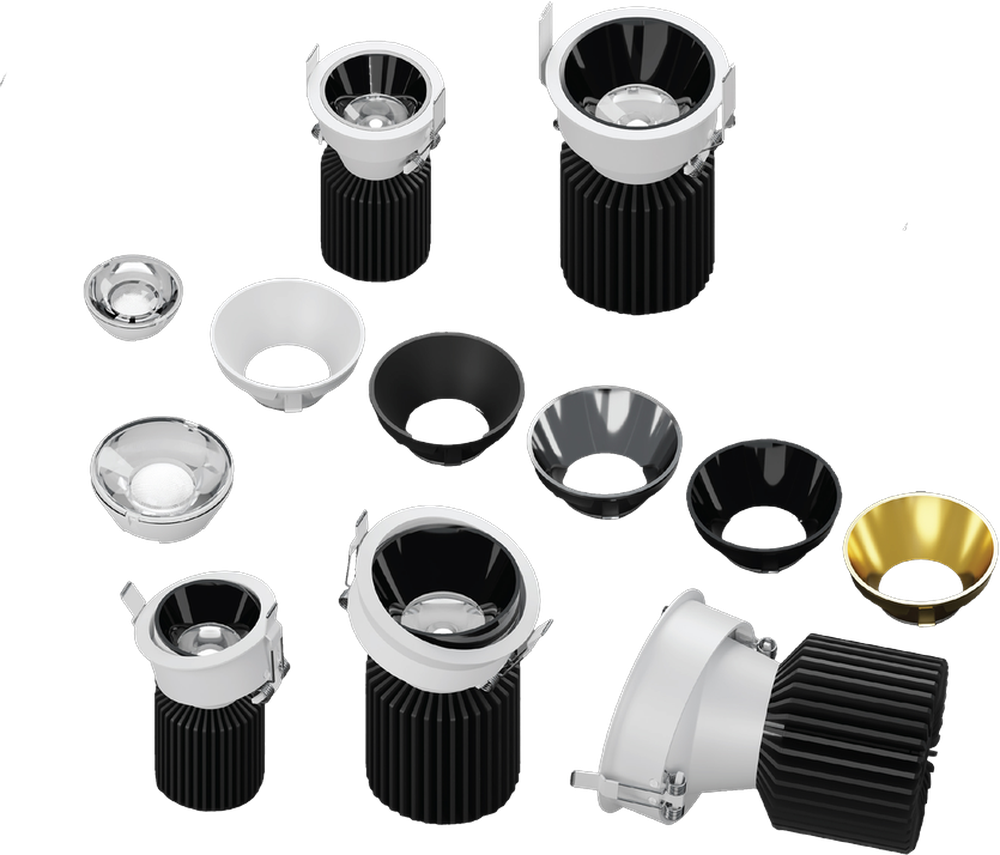

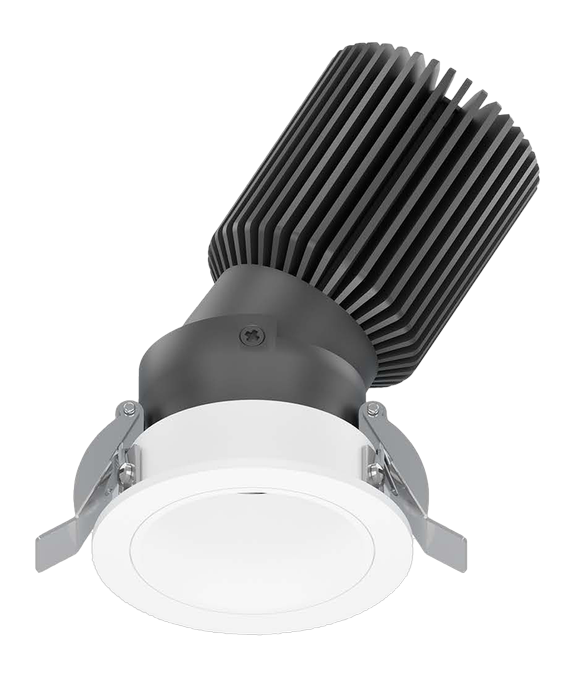

GRAVITY is a high-lumen recessed COB downlight engineered around a small cut-out, high-wattage architecture, giving specifiers a single series that covers a wide range of cut-out sizes and illuminance requirements. Its customized anti-glare reflector (available in multiple trim colours) ensures visual comfort while preserving punch.
Available in 10W, 15W, 25W, 32W, and 42W covering 1,190 to 4,998 lumens at up to 119 lm/W, with seven beam-angle options (21°/28°/32°/42°/46°/51°/54°). Features 0–10V / DALI / Triac dimming, optional emergency backup, and a 5-year warranty. A classic, durable, and practical fixture, the best choice for commercial spaces.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Dimming | 0–10V · DALI · Triac |
| Emergency Backup | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Ingress Protection | IP20 (Indoor) |
| Impact Resistance | IK07 |
| Switching Cycles | >50,000 times |
| Housing | Die-Cast Aluminum |
| Mounting | Recessed |
| Reflector | Aluminum (Anti-Glare, Multiple Colours) |
| Optics | PC |
| Body Finish | Electrostatic Polyester Powder Coating |
| Body Colors | Black · White |
| Accessories | Honeycomb Louvre · Linear Spread Glass |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >90 · Optional >95 |
| Dimming | 0–10V · DALI · Triac |
| Emergency Backup | Optional |
| Switching Cycles | >50,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-GR 10W | 10W | 1,190 lm | 119 lm/W | 21° / 28° / 32° / 42° / 46° / 51° / 54° | >90 · >95 opt |
| NLC-GR 15W | 15W | 1,785 lm | 119 lm/W | 21° / 28° / 32° / 42° / 46° / 51° / 54° | >90 · >95 opt |
| NLC-GR 25W | 25W | 2,975 lm | 119 lm/W | 21° / 28° / 32° / 42° / 46° / 51° / 54° | >90 · >95 opt |
| NLC-GR 32W | 32W | 3,808 lm | 119 lm/W | 21° / 28° / 32° / 42° / 46° / 51° / 54° | >90 · >95 opt |
| NLC-GR 42W | 42W | 4,998 lm | 119 lm/W | 21° / 28° / 32° / 42° / 46° / 51° / 54° | >90 · >95 opt |
* Values based on CCT 4000K | ±10% tolerance | Cut-out sizes 55 / 60 / 75 / 80 / 85 / 95 / 100 mm (varies by SKU and housing).
