Subtle Design. Sharp Focus.
PIXEL is a compact adjustable recessed spotlight family designed for precise directional lighting. Each variant features a clean trim design and smooth tilt mechanism for focused, controlled illumination.

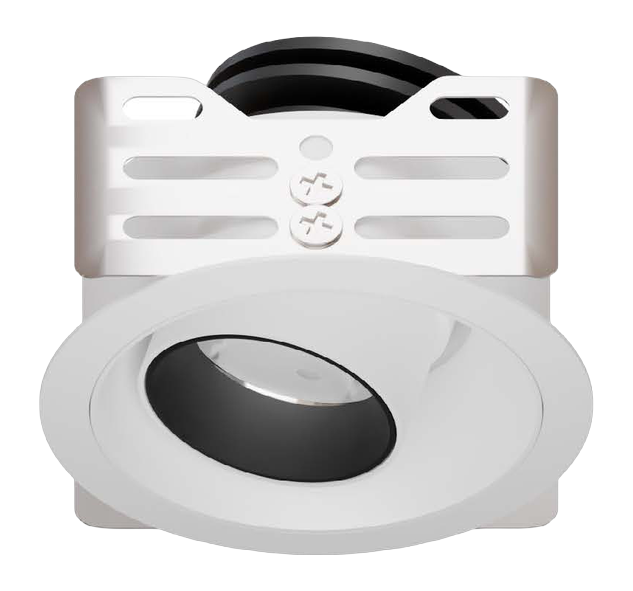

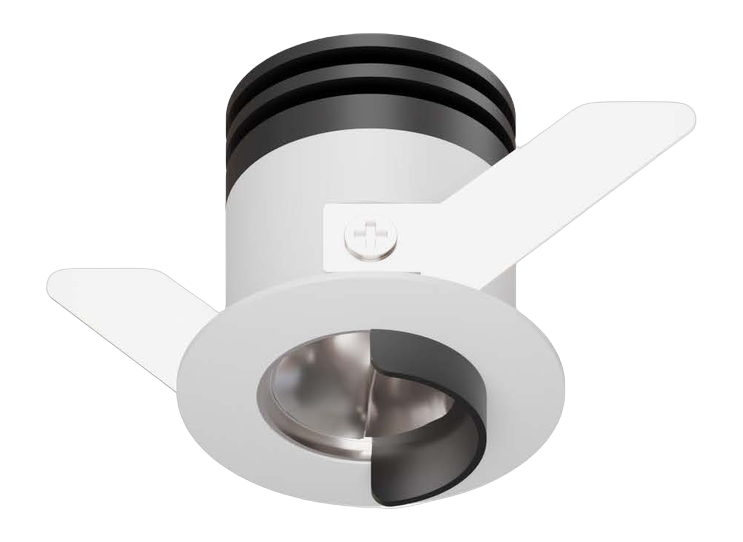

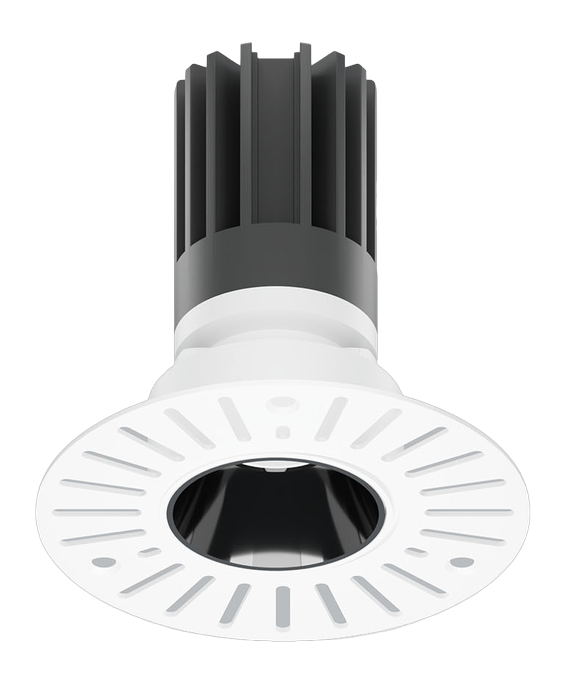

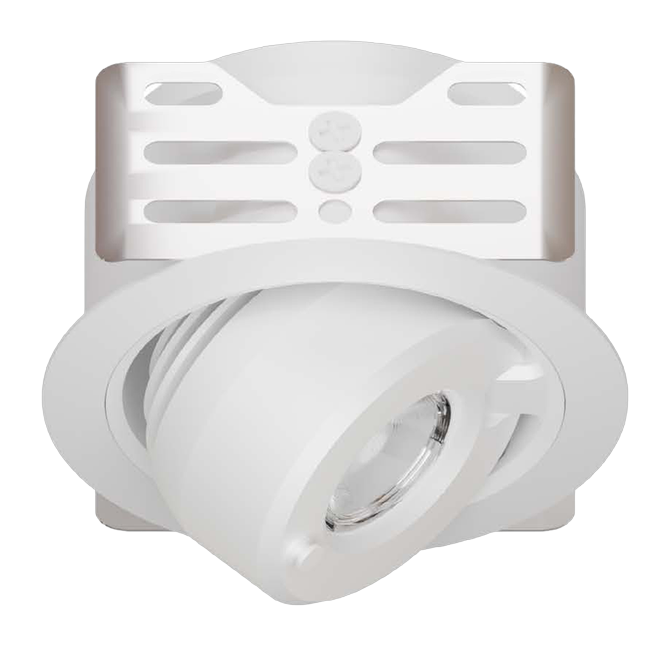

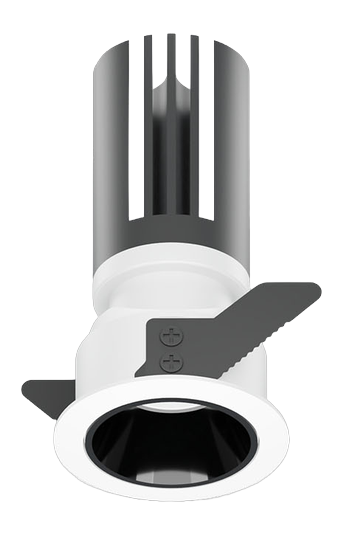

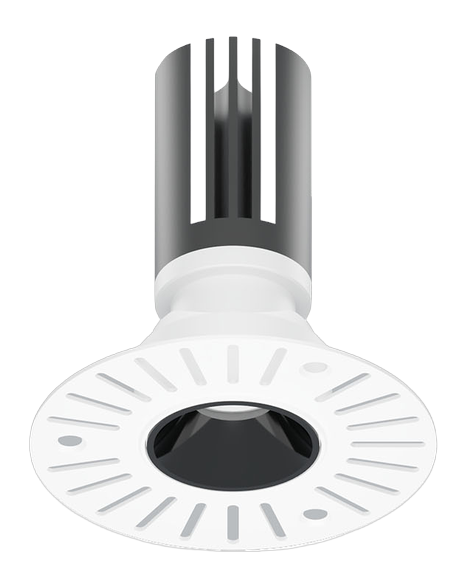

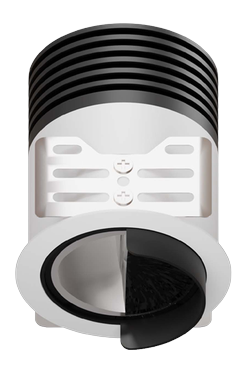

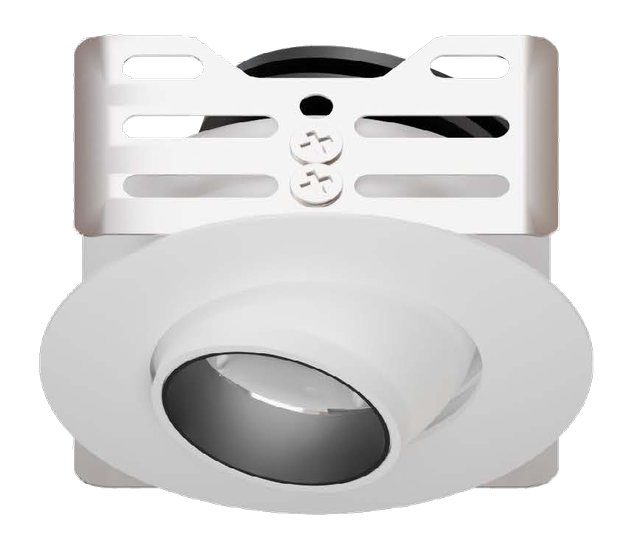

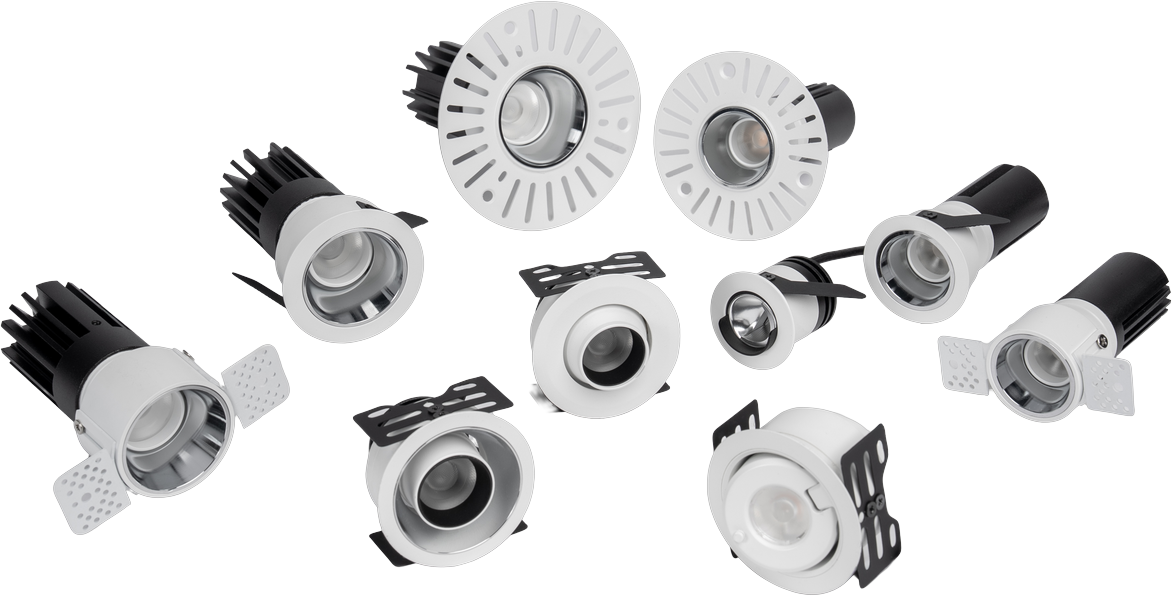

The PIXEL family includes seven distinct variants, PXA, PXB, PXD (fixed trims) · PXW (wall wash) · PXT, PXR, PXH (adjustable bodies), covering 3.5W to 8.5W with beam angles from 19° to 54°. All variants feature COB source, CRI >90 (optional >95), and a 5-year warranty.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Flicker-Free | Yes |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 (Indoor) |
| Switching Cycles | >50,000 |
| Housing | Aluminum |
| Mounting | Recessed |
| Optics | Lens (Anti-Glare) |
| Body Finish | Powder Coating |
| Body Colors | Black · White |
| Rotation / Tilt | Varies by variant, up to 350° rotation · 65° tilt |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >90 · Optional >95 |
| Switching Cycles | >50,000 |
| Warranty | 5 Years |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PXA 3.5W | 3.5W | 285 lm | 81 lm/W | 19° / 23° / 28° / 46° | >90 · >95 opt |
| NLC-PXB 3.5W | 3.5W | 277 lm | 79 lm/W | 20° / 23° / 28° / 40° | >90 · >95 opt |
| NLC-PXD 3.5W | 3.5W | 301 lm | 86 lm/W | 28° / 35° / 38° / 53° | >90 · >95 opt |
| NLC-PXW 3.5W | 3.5W | 150 lm | 43 lm/W | Tilted 10° · Beam 45° | >90 · >95 opt |
| NLC-PXW 8.5W | 8.5W | 425 lm | 50 lm/W | Tilted 10° · Beam 48° | >90 · >95 opt |
| NLC-PXT 6W | 6W | 288 lm | 48 lm/W | 20° / 26° / 29° / 54° | >90 · >95 opt |
| NLC-PXT 8W | 8W | 617 lm | 77 lm/W | 19° / 25° / 31° / 43° | >90 · >95 opt |
| NLC-PXR 6W | 6W | 288 lm | 48 lm/W | 20° / 26° / 29° / 54° | >90 · >95 opt |
| NLC-PXR 8W | 8W | 617 lm | 77 lm/W | 19° / 25° / 31° / 43° | >90 · >95 opt |
| NLC-PXH 6W | 6W | 288 lm | 48 lm/W | 20° / 26° / 29° / 54° | >90 · >95 opt |
| NLC-PXH 8W | 8W | 617 lm | 77 lm/W | 19° / 25° / 31° / 43° | >90 · >95 opt |
* Values based on CCT 3000K | ±10% tolerance | PXA/PXB/PXD: fixed trims · PXW: wall washer · PXT/PXR/PXH: adjustable bodies
