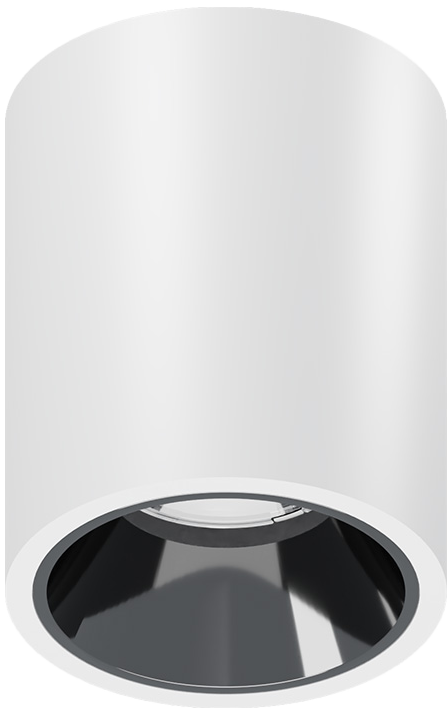

Down Light Luminaire, Sleek Cylinder Form
CYLINDER is a surface-mounted LED downlight with a sleek cylindrical design that complements modern interiors. Constructed from high-quality die-cast aluminum for excellent heat dissipation and durability, it delivers uniform, glare-free illumination with premium color quality (CRI >90 standard, >95 optional).

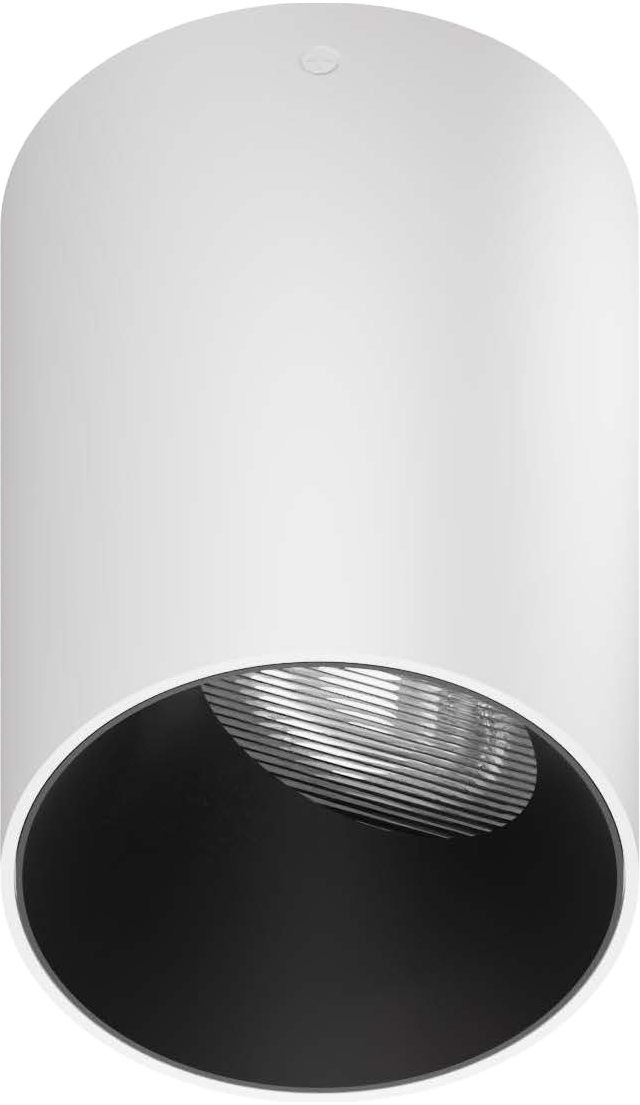

Three optical configurations: CLA (Spot/Medium/Flood/Wide Flood from 17° to 55°), WASHO (asymmetric wall washer), and ADJ (adjustable). SDCM <3 ensures consistent color point across multiple fixtures.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Dimming | Non-DIM · 0–10V · DALI-2 |
| Emergency Backup | Optional |
| SDCM | <3 |
| Working Temperature | -20°C to +45°C |
| Ingress Protection | IP20 |
| Impact Resistance | IK07 |
| Switching Cycles | >50,000 times |
| Dimensions (CLA) | H60×D60 / H80×D80 / H100×D100 mm |
| Dimensions (Adjustable) | H90×D62 / H120×D84 / H160×D116 mm |
| Dimensions (Washer) | H90×D55 (tilt 20mm) / H105×D73 (tilt 20mm) / H116×D90 (tilt 22mm) |
| Housing | Die-Cast Aluminum |
| Mounting | Surface |
| Reflector | Aluminum |
| Body Finish | Electrostatically Applied Polyester Powder Coating |
| Body Colors | Black · White |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Switching Cycles | >50,000 times |
| CRI | Standard >90 · Optional >95 |
| Flicker Free | Yes |
| Warranty | 5 Years |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-BR CLA | 6W | 666 lm | 17°–55° | ≥90 | 111 lm/W |
| NLC-BR CLA | 10W | 1,116 lm | 17°–55° | ≥90 | 111.6 lm/W |
| NLC-BR CLA | 13W | 1,477 lm | 17°–55° | ≥90 | 113.6 lm/W |
| NLC-BR Washer | 9W | 420 lm | 48° asym | ≥90 | 46.6 lm/W |
| NLC-BR Washer | 15W | 1,179 lm | 72° asym | ≥90 | 78.6 lm/W |
| NLC-BR Washer | 28W | 1,842 lm | 52° asym | ≥90 | 65.7 lm/W |
| NLC-BR Adjustable | 6W | 467 lm | 19°–57° | ≥90 | 77.8 lm/W |
| NLC-BR Adjustable | 14W | 1,305 lm | 19°–57° | ≥90 | 93.2 lm/W |
| NLC-BR Adjustable | 20W | 2,300 lm | 19°–57° | ≥90 | 115 lm/W |
* Values based on CCT 4000K | ±10% tolerance
