Premium recessed 4-in-1 emergency downlight, D63 400 lm / D80 475 lm DIP-switchable.

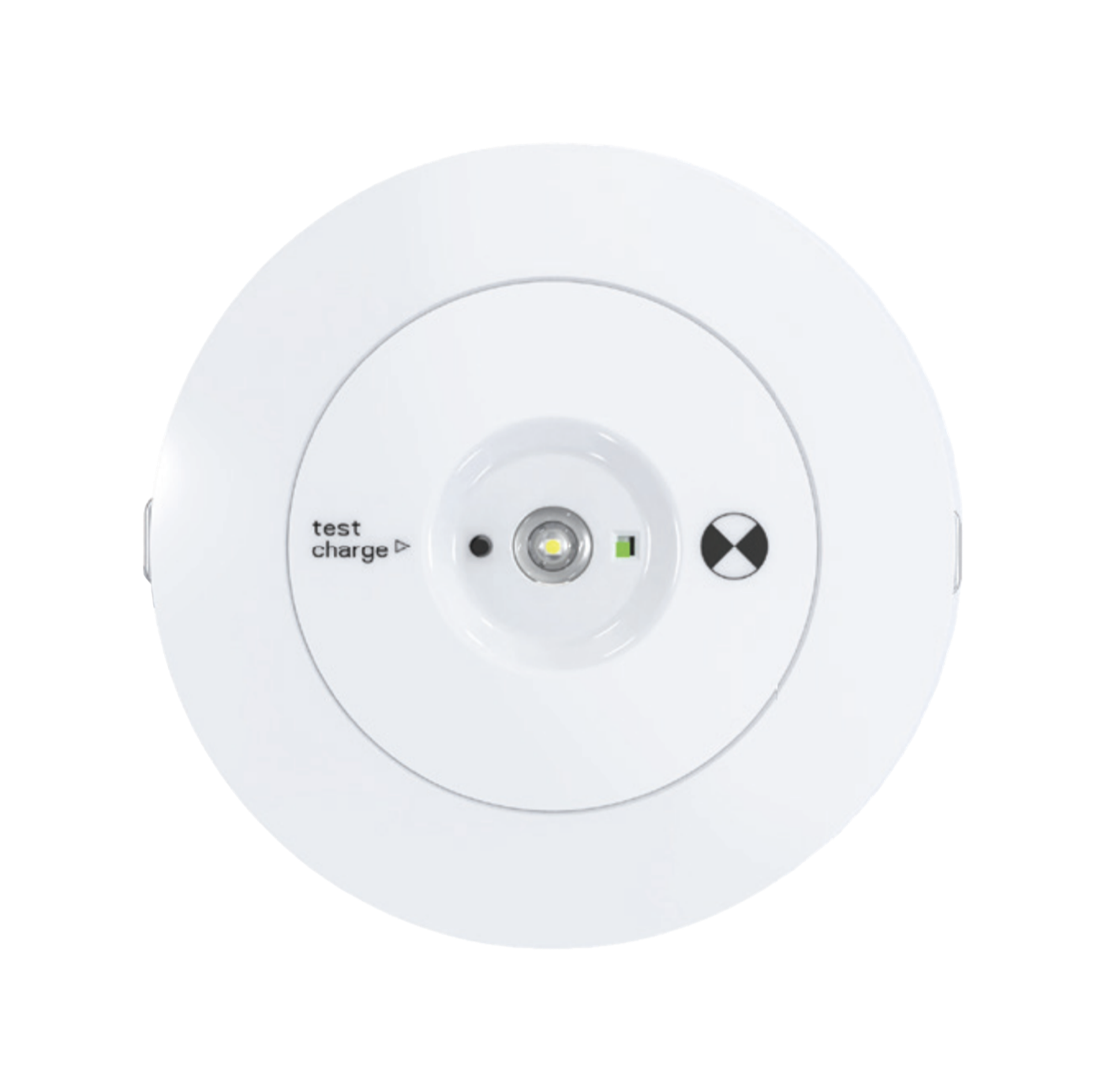

STAID is a premium recessed 4-in-1 non-maintained emergency downlight (Spit Fire) built on a Bridgelux SMD LED. A single unit covers D40, D50, D63 (400 lm) and D80 (475 lm) via DIP switch, fitting 75–125 mm cut-outs with over 3 hours of backup.
Flame-retardant polycarbonate, white / black / grey finish, 1.2 m flex and AC plug. CB / CE / SAA and AS/NZS 2293.3 verified.
| Source | LED |
| LED Source | Bridgelux SMD5050 · 1×5W |
| Power / Lumens | 1.8–4.0W · up to 475 lm |
| Input Voltage | 200–240V · 50/60Hz |
| Emergency Backup | >3 Hours |
| Operating Mode | Non-Maintained |
| Test Mode | Manual test |
| Mounting | Recessed · 75–125 mm cut-out |
| Housing | 850°C flame-retardant polycarbonate |
| Ingress Protection | IP20 |
| Weight | 360 g |
| Dimensions | Ø95 / 145 mm × H26 mm |
| Body Colour | White / Black / Grey |
| Working Temperature | 0–50°C |
| Warranty | 5 yr product · 4 yr battery |
| Standards | CB · CE · SAA · AS/NZS 2293.3 |
| Battery | Bodofor LiFePO4 6.4V 1600/2000mAh |
| Housing | 850°C flame-retardant polycarbonate |
| Mounting | Recessed · 75–125 mm cut-out |
| Body Colour | White / Black / Grey |
| Operating Mode | Non-Maintained |
| D40 / D50 | DIP switchable |
| D63 | 400 lm |
| D80 | 475 lm |
Contact our engineering team for detailed photometric data, custom configurations, and ordering codes.
