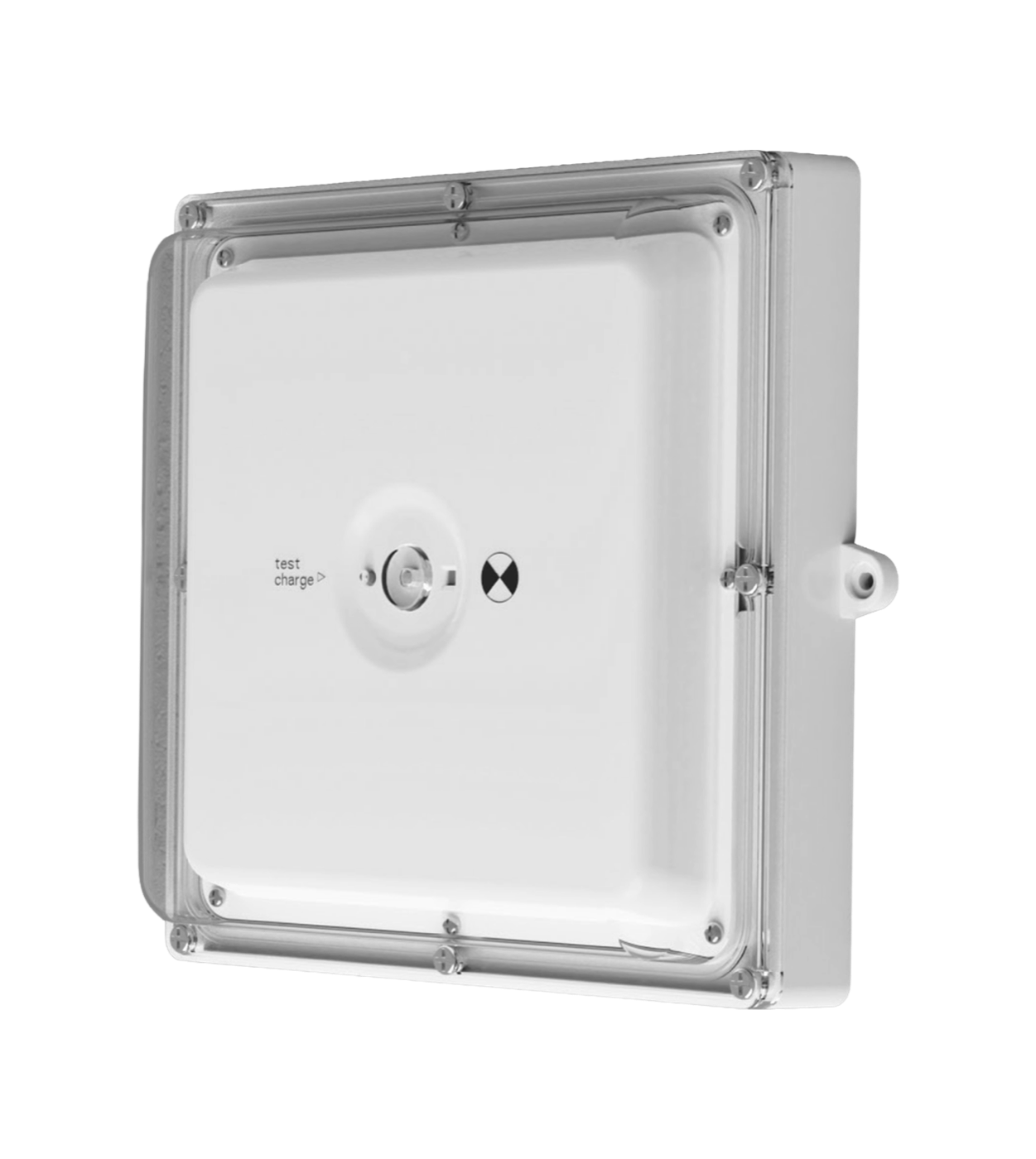

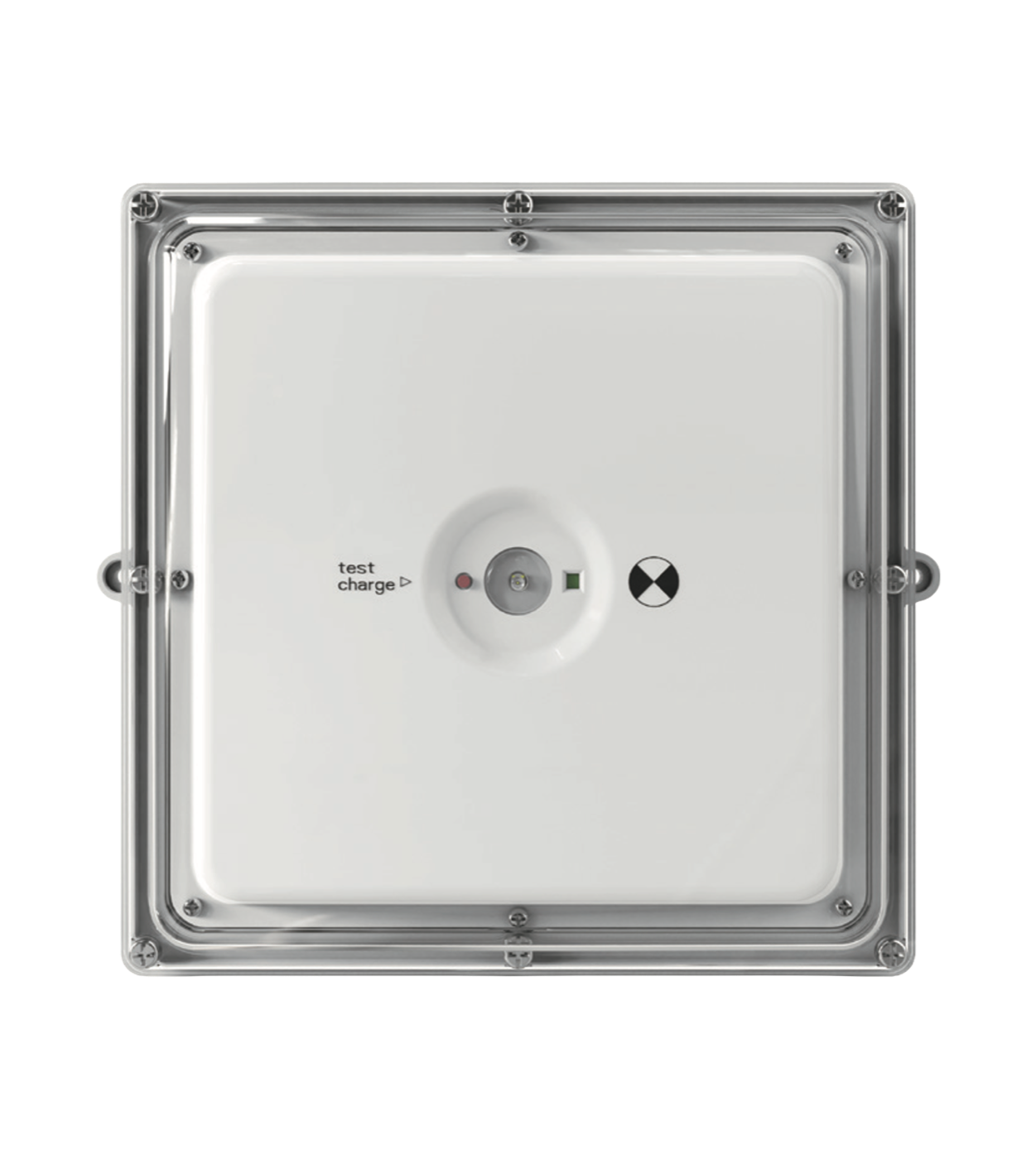

-40°C ultra-low-temperature IP65 waterproof surface-mounted emergency light.
CALM is an IP65 waterproof surface-mounted non-maintained emergency light built around leading -40°C ultra-low-temperature battery technology for cold and harsh environments. A Lumileds LUXEON LED with over 3 hours of backup secures egress on mains failure.
Flame-retardant polycarbonate enclosure, surface ceiling mounting, white / black / grey finish. CB / CE / SAA verified.
| Source | LED |
| LED Source | Lumileds LUXEON 5050 · 1×5W |
| Power / Lumens | 1.9–3.3W · 240–360 lm |
| Input Voltage | 200–240V · 50/60Hz |
| Emergency Backup | >3 Hours |
| Operating Mode | Non-Maintained |
| Test Mode | Manual / Self-test option |
| Mounting | Surface – ceiling |
| Housing | 850°C flame-retardant polycarbonate |
| Ingress Protection | IP65 |
| Weight | 650 g |
| Dimensions | 200 × 225 × 62 mm |
| Body Colour | White / Black / Grey |
| Working Temperature | 0–50°C |
| Warranty | 3 yr product · 2 yr battery |
| Standards | CB · CE · SAA · IEC 60598 · AS/NZS 2293.3 |
| Battery | NTC LiFePO4 3.2V 3400/4000mAh |
| Housing | 850°C flame-retardant polycarbonate |
| Mounting | Surface – ceiling |
| Body Colour | White / Black / Grey |
| Operating Mode | Non-Maintained |
| X5M23 | 240 lm · 2.5W |
| X5M33 | 360 lm · 3.3W |
| Option | -40°C ultra-low temperature |
Contact our engineering team for detailed photometric data, custom configurations, and ordering codes.
