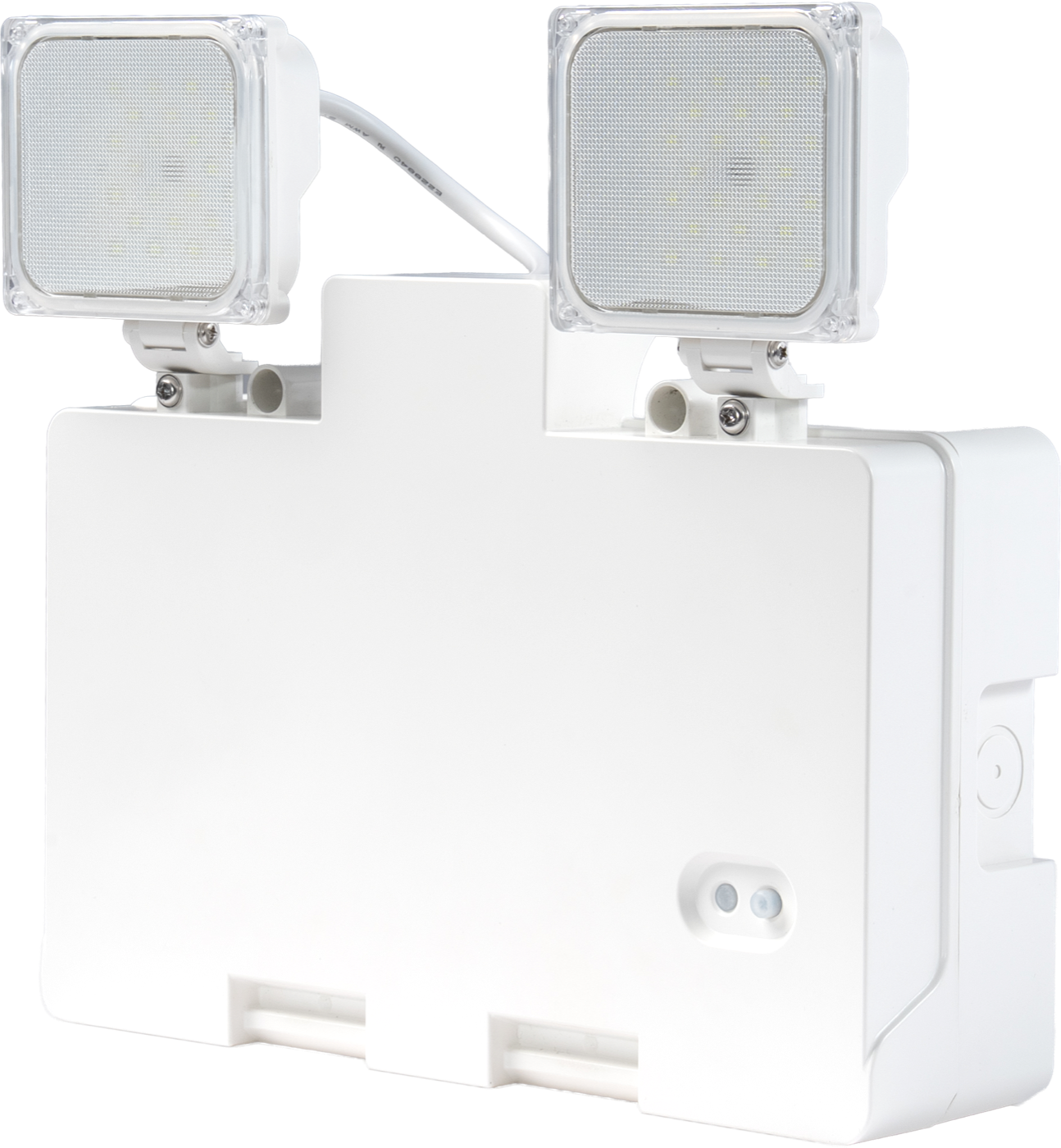

IP65 super-bright LED twin-spot emergency luminaire with self-test.
TWINS is an IP65 super-bright LED twin-spot non-maintained emergency luminaire. Its two adjustable high-output spotlights give wide egress coverage, with a LiFePO4 battery delivering over 3 hours of backup on mains failure.
Dual-mode manual and self-test, with wall or ceiling mounting and white or black finish. Compliant to IEC 60598 and AS/NZS 2293.3 (CB / CE / RCM).
| Source | LED |
| LED Source | SMD 2835R · 2-spot |
| Power / Lumens | 1.5–12W · 300–1,650 lm |
| Input Voltage | 200–240V · 50/60Hz |
| Emergency Backup | >3 Hours |
| Operating Mode | Non-Maintained |
| Test Mode | Dual-mode: Manual + Self-test |
| Mounting | Wall / Ceiling |
| Housing | PC base · PC+ABS head · PC diffuser |
| Ingress Protection | IP65 |
| Weight | 0.78–1.21 kg |
| Dimensions | 250 × 240 × 82 mm |
| Body Colour | White / Black |
| Working Temperature | 0–50°C |
| Warranty | 5 yr product · 4 yr battery |
| Standards | CB · CE · RCM · IEC 60598 · AS/NZS 2293.3 |
| Battery | LiFePO4 6.4V 1.5–9.0Ah |
| Housing | PC base · PC+ABS head · PC diffuser |
| Mounting | Wall / Ceiling |
| Body Colour | White / Black |
| Operating Mode | Non-Maintained |
| S5D23 (1.5W) | 300 lm · 2×0.75W |
| S5D33 (3W) | 450 lm · 2×1.5W |
| S5D53 (5W) | 900 lm · 2×2.5W |
| S5D93 (9W) | 1,350 lm · 2×4.5W |
| S5D123 (12W) | 1,650 lm · 2×6W |
Contact our engineering team for detailed photometric data, custom configurations, and ordering codes.
