Linear High Bay
PODIUM
Industrial High Bay with Flexible Mounting.
IP65
IK10
140 lm/W
2.5–6.2 kg
Colours
220–240V / 110–277V
Years Warranty
60–240W
Power
Up to 33,600 lm
Lumens
140 lm/W
Efficacy
72,000h
Lifetime
Industrial High Bay with Flexible Mounting.

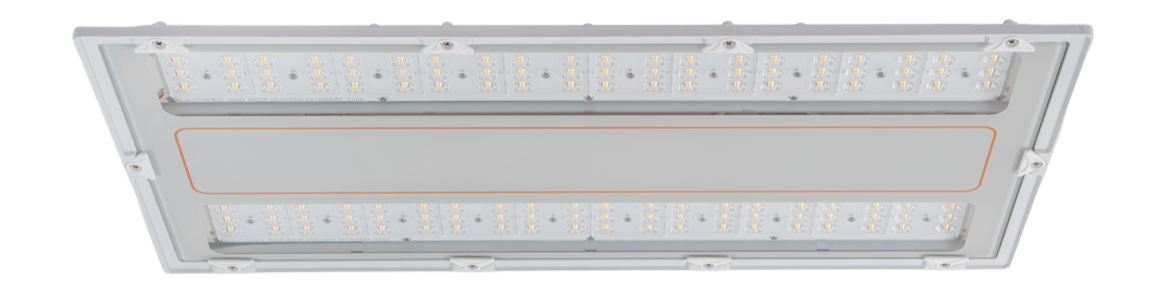

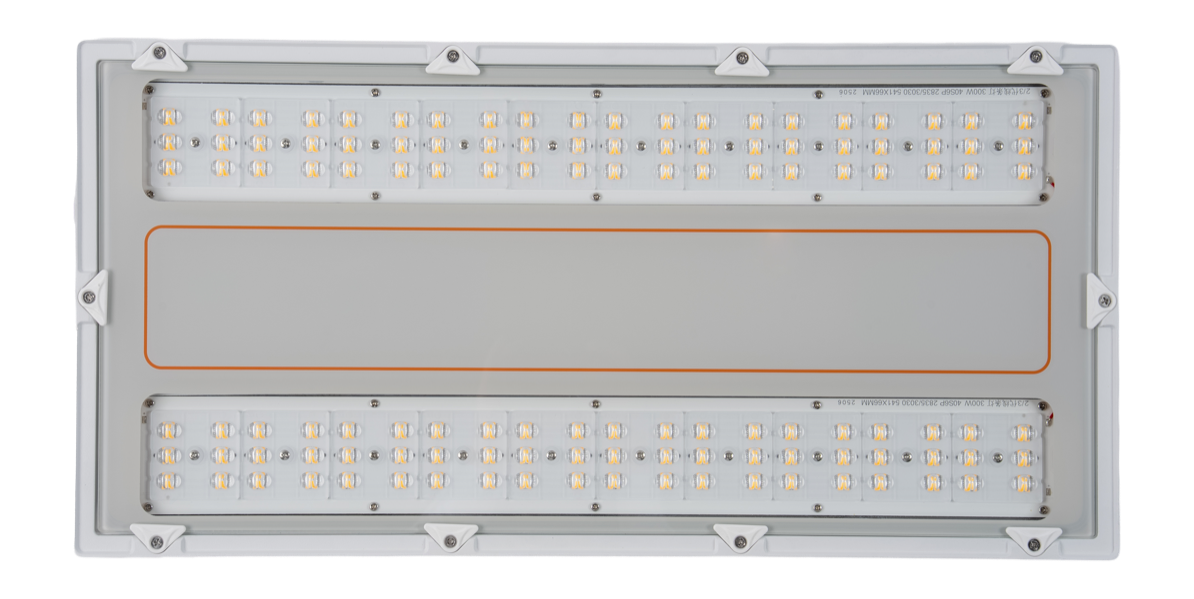

PODIUM is a linear high-bay luminaire, offering a broader weight range (2.5–6.2 kg) for heavier-duty industrial installations. Die-cast aluminum housing with a polycarbonate lens and pendant-chain mounting.
Available across a wide wattage range with IP65 / IK10 protection, 140 lm/W efficacy and options for trunion bracket, surface mounting, emergency, 0-10V dimming and DALI.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.98 |
| THD | <10 |
| Working Temperature | 55°C |
| Electrical Class | Class I |
| Ingress Protection | IP65 |
| Impact Resistance | IK10 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Die-Cast Aluminum |
| Mounting | Pendant by Chain |
| Diffuser | Polycarbonate Lens |
| Weight | 2.5–6.2 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · Trunion Bracket · Surface Mount · 170 lm/W High Efficacy |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PD 60W | 60W | 8,400 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-PD 100W | 100W | 14,000 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-PD 150W | 150W | 21,000 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-PD 200W | 200W | 28,000 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-PD 240W | 240W | 33,600 lm | 140 lm/W | 60°/90°/120° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
