WP Series · UFO High Bay
L62
Reliable High Bay for Industrial Spaces.
IP65
IK08
140 lm/W
2.9–6.2 kg
Colours
220–240V / 110–277V
Years Warranty
60–240W
Power
Up to 33,600 lm
Lumens
140 lm/W
Efficacy
72,000h
Lifetime
Reliable High Bay for Industrial Spaces.

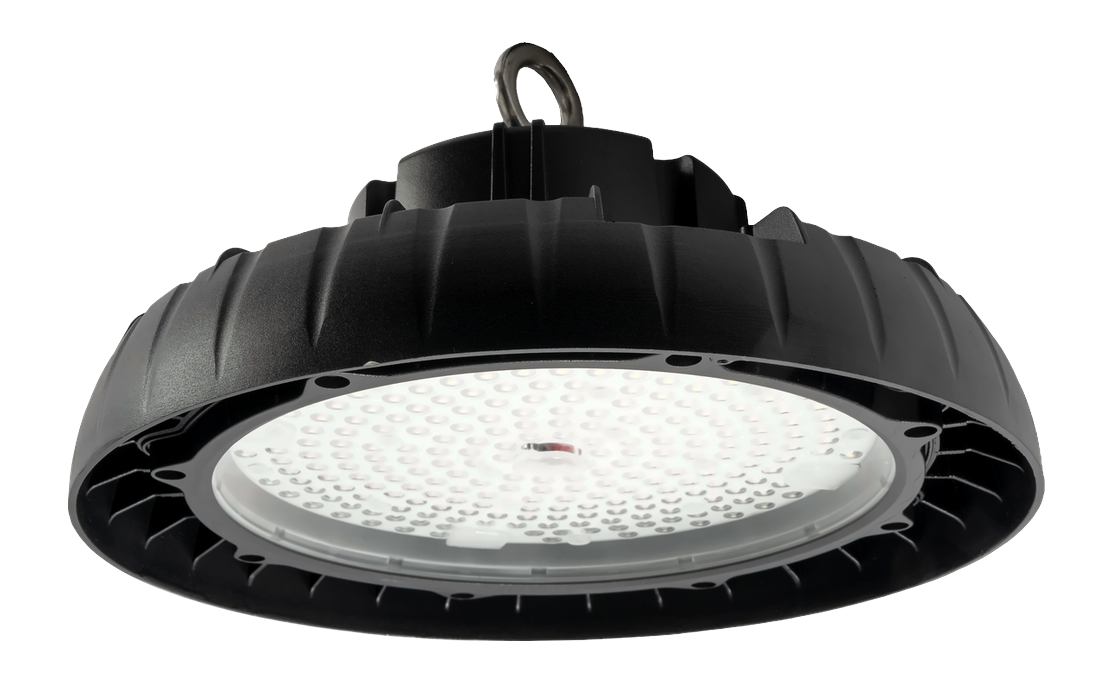

L62 is a UFO-style high-bay luminaire built for indoor industrial applications, factories, workshops, warehouses, tunnels and hangars. Die-cast aluminum housing with a polycarbonate lens and pendant-chain mounting.
Available from 60W to 240W with IP65 / IK08, 140 lm/W efficiency, and options including emergency backup, 0-10V dimming, DALI, trunion bracket, surface mounting and a high-efficacy 170 lm/W variant.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.98 |
| THD | <10 |
| Working Temperature | 55°C |
| Electrical Class | Class I |
| Ingress Protection | IP65 |
| Impact Resistance | IK08 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Die-Cast Aluminum |
| Mounting | Pendant by Chain |
| Diffuser | Polycarbonate Lens |
| Weight | 2.9–6.2 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · Trunion Bracket · Surface Mount · 170 lm/W High Efficacy |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-L62 60W | 60W | 8,400 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-L62 100W | 100W | 14,000 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-L62 150W | 150W | 21,000 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-L62 200W | 200W | 28,000 lm | 140 lm/W | 60°/90°/120° | >80 |
| NLC-L62 240W | 240W | 33,600 lm | 140 lm/W | 60°/90°/120° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
