IP 66 LED projector from 18W to 75W, 2000LM to 9500LM, up to 127LM/W.

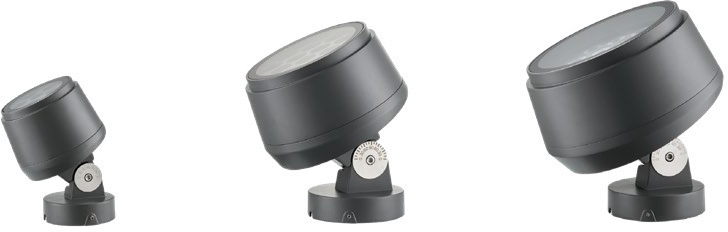

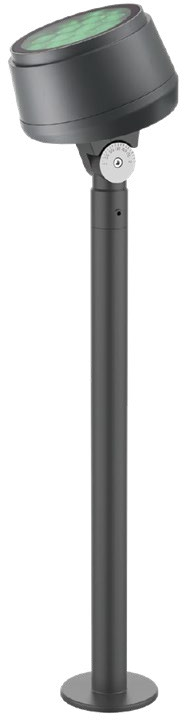

Cyclone is an LED projector rated IP 66 and IK08, running on AC 110-270 or DC 24V at 50/60Hz as a Class I fitting with a power factor above 0.9. It is catalogued from 18W to 75W, producing 2000LM to 9500LM at 109LM/W to 127LM/W from an SMD3535 source. Two beam option sets are printed for the range, 15° to 80° and 4° to 60°. Colour temperatures cover 2700K, 3000K, 4000K and 5700K, CRI is above 80 as standard and above 90 as an option, rated life is 50,000 hours, and the finish is dark gray.
| Input Voltage | AC 110-270 / DC24V | 50/60Hz |
| Power Factor | >0.9 |
| Protection Class | Class I |
| Ingress Protection | IP 66 |
| Finish | Dark Gray |
| Impact Resistance | IK08 |
| LED Source | SMD3535 |
| Efficiency | 109LM/W - 127LM/W |
| CRI | Standard: >80, Optional: >90 |
| Lifetime | 50,000h |
| Colour Appearance | 2700K Candlelight, 3000K Warm, 4000K Daylight, 5700K Daylight |
| Model | Power | Efficiency | System Lumen | CRI | Source |
|---|---|---|---|---|---|
| NLC-CYXXW-YYK | 18W | 111LM/W | 2000LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 18W | 122LM/W | 2200LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 30W | 110LM/W | 3300LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 30W | 127LM/W | 3800LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 40W | 110LM/W | 4400LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 40W | 125LM/W | 5000LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 60W | 110LM/W | 6600LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 60W | 125LM/W | 7500LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 75W | 109LM/W | 8200LM | Standard: >80, Optional: >90 | SMD3535 |
| NLC-CYXXW-YYK | 75W | 127LM/W | 9500LM | Standard: >80, Optional: >90 | SMD3535 |
* Values as published in the NLC product catalogue
