Diamond Die-cast Elegance

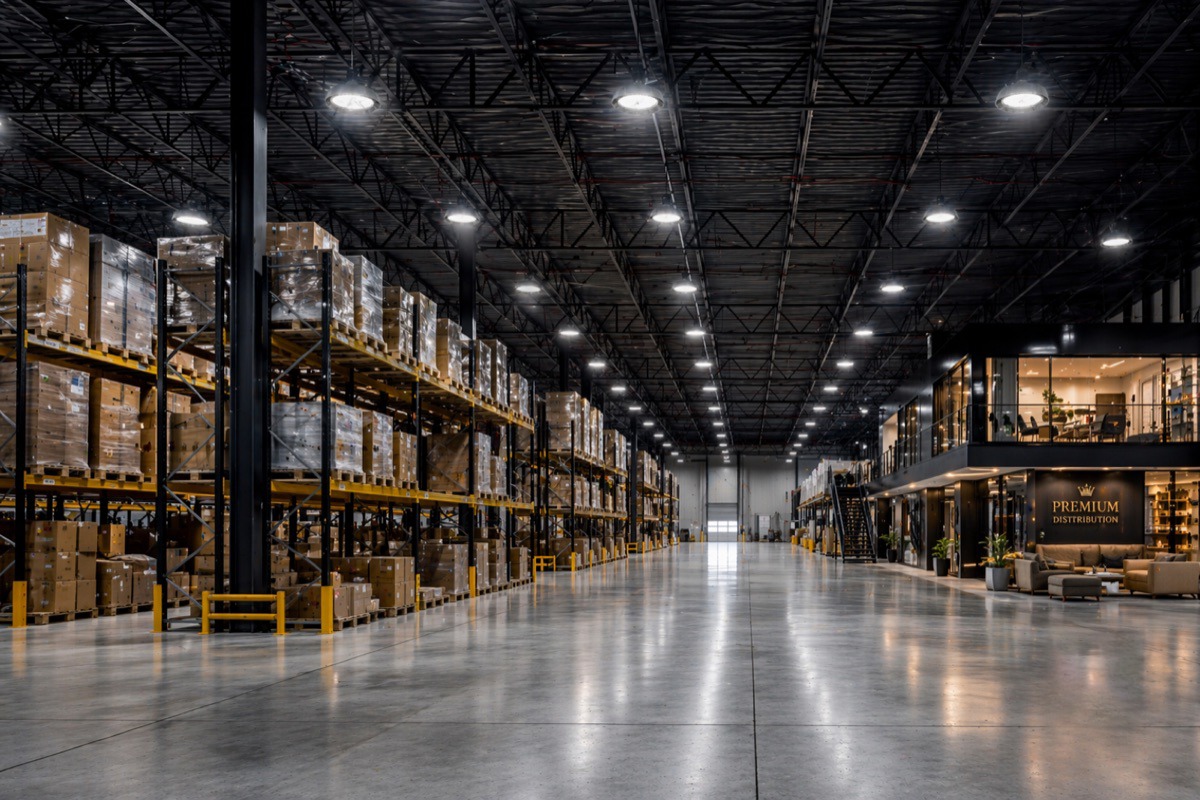

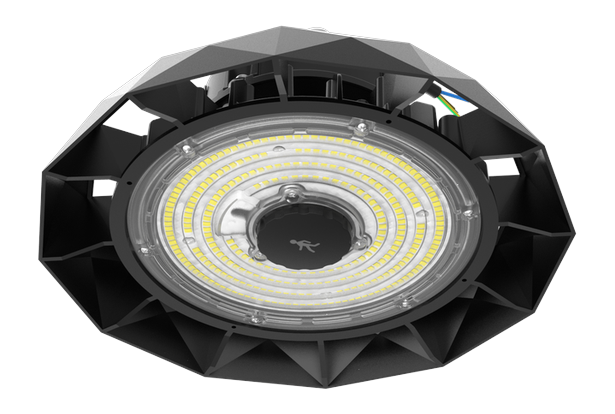

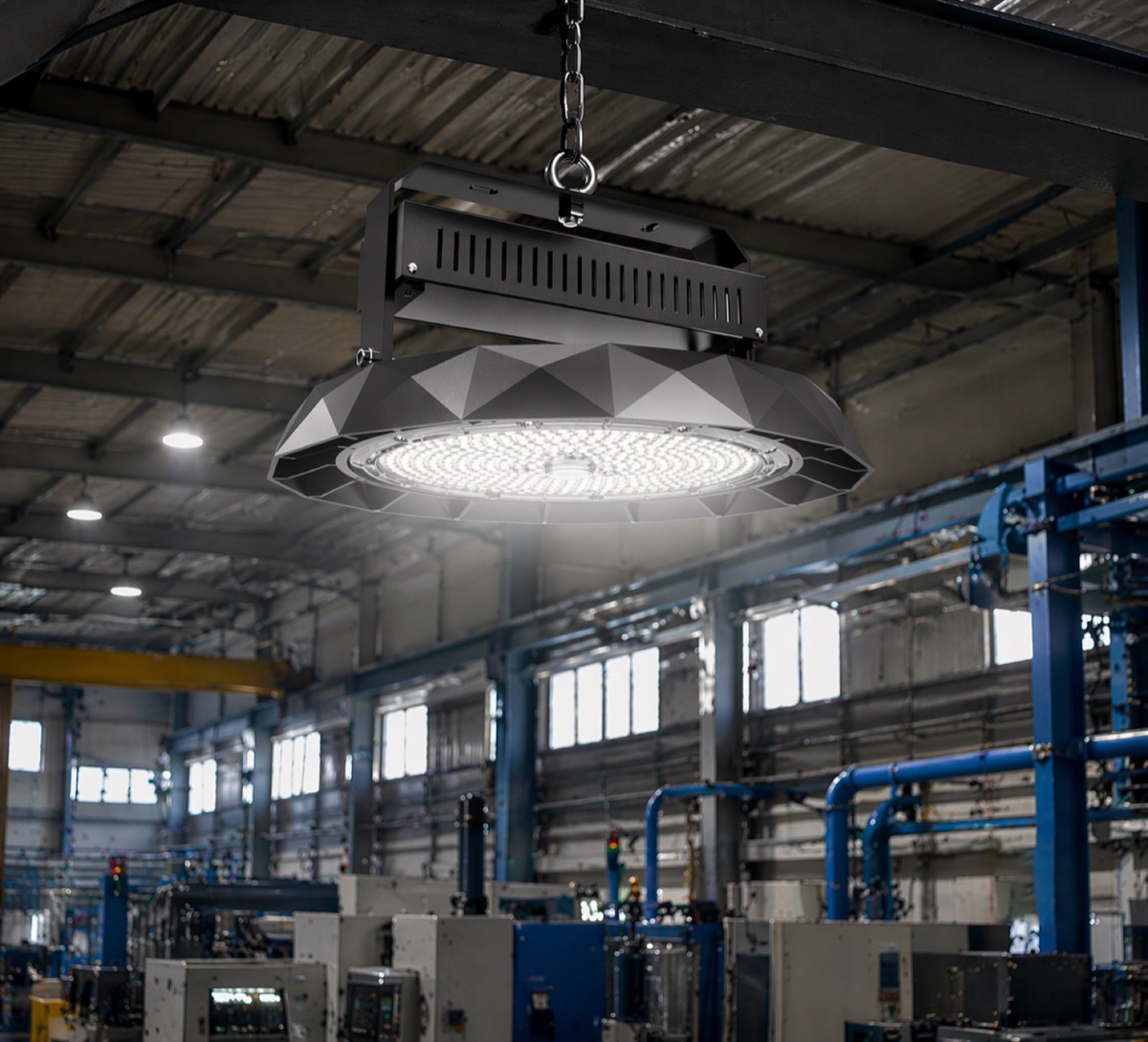

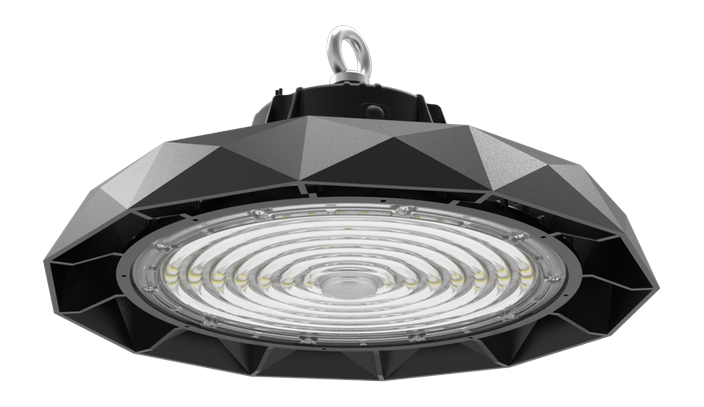

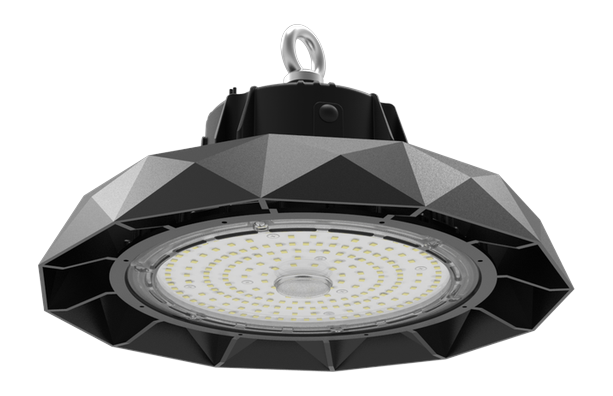

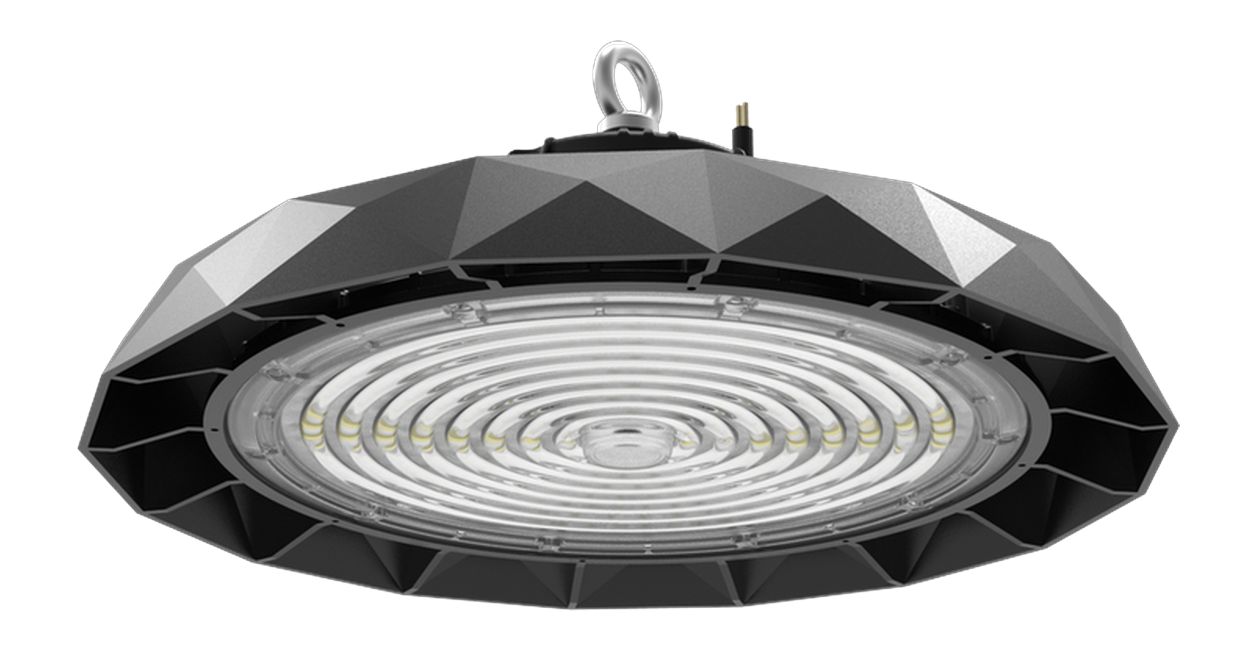

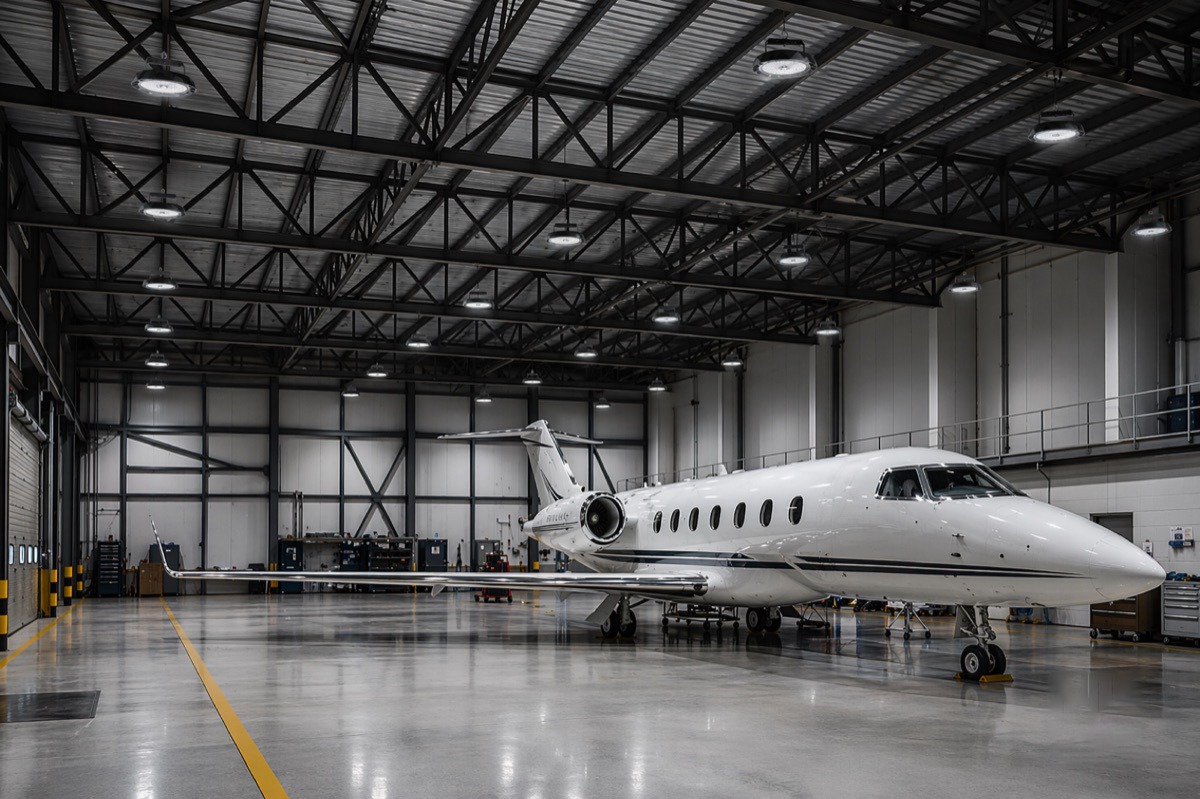

DIAMOND is a premium high-bay LED luminaire featuring a diamond die-cut lighting design that combines superior thermal management with high-efficiency optics. Its die-cast aluminum body and polycarbonate lens deliver uniform illumination in large-volume industrial and commercial spaces.
Available in 100W, 150W, 200W, and 240W variants producing up to 40,800 lumens at a class-leading 170 lm/W. Supports 60° / 90° / 120° beam options and 0-10V / 1-10V / PWM / resistor dimming protocols.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.97 @ 220V · >0.90 @ 100–277V |
| THD | <10 @ 220V · <20 @ 100–277V |
| Surge Protection | Internal DM 6KV / CM 6KV · External 10KV / 20KV |
| Electrical Class | Class I |
| Dimming | 0–10V · 1–10V · PWM · Resistor |
| Flicker-Free | Optional |
| Working Temperature | -30°C to +50°C (ta 45°C) |
| Operating Humidity | 10–90% RH |
| Ingress Protection | IP65-ready (ensure cable sealing) |
| Dimensions (100W) | D 280 × H 122 mm |
| Dimensions (150W) | D 320 × H 123 mm |
| Dimensions (200 / 240W) | D 360 × H 123 mm |
| Housing | Die-casting Aluminum |

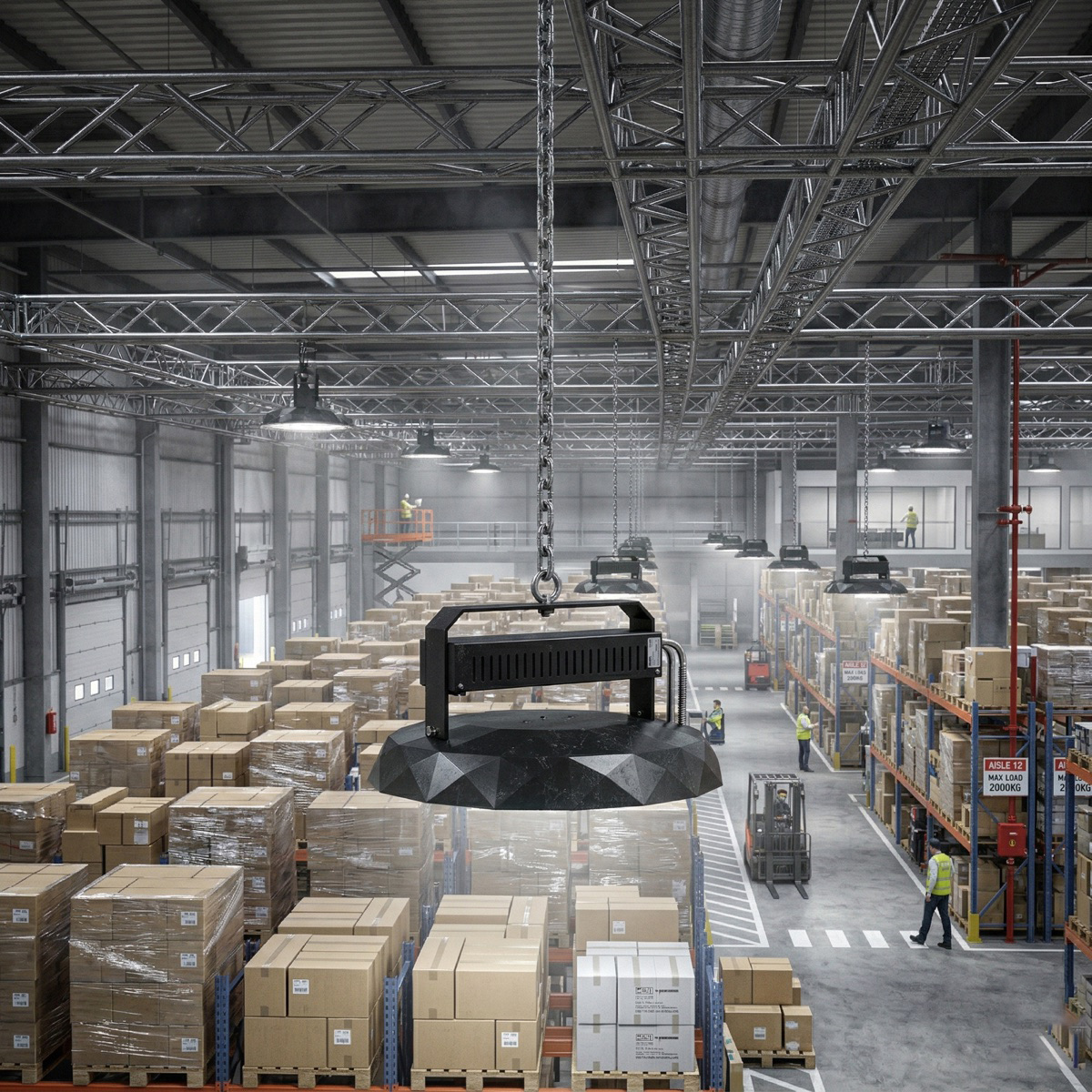

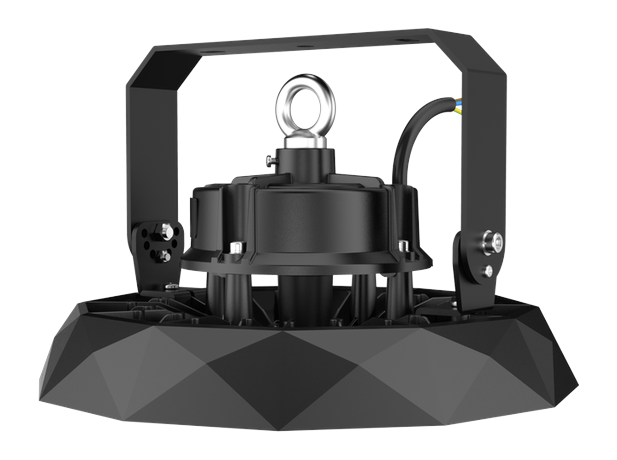

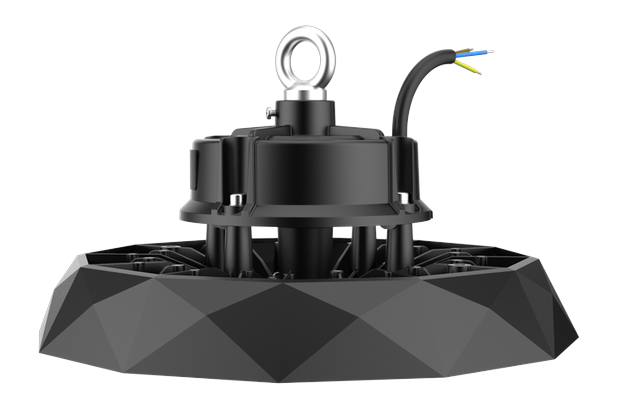

| Mounting | Loop Hanging · Bracket Mounting |
| Optics | Polycarbonate (PC) |
| Body Finish | Electrostatic Polyester Powder Coating |
| Body Color | RAL 9017 Black |
| Design | Diamond die-cut lighting pattern |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >70 · Optional >80 |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | System Lumen | Efficiency | Beam Angles | CRI |
|---|---|---|---|---|---|
| NLC-DI 100W | 100W | 17,000 lm | 170 lm/W | 60° / 90° / 120° | >70 |
| NLC-DI 150W | 150W | 25,500 lm | 170 lm/W | 60° / 90° / 120° | >70 |
| NLC-DI 200W | 200W | 34,000 lm | 170 lm/W | 60° / 90° / 120° | >70 |
| NLC-DI 240W | 240W | 40,800 lm | 170 lm/W | 60° / 90° / 120° | >70 |
* Values based on CCT 4000K | ±10% tolerance | Ensure IP65 protection when connecting the cable
