Wall Pack · Canopy
712S
Canopy Lighting for Busy Spaces.
IP65
IK10
100 lm/W
9.2 kg
Colours
220–240V / 110–277V
5-Year Warranty
10–25W
Power
Up to 2,500 lm
Lumens
100 lm/W
Efficacy
50,000h
Lifetime
Canopy Lighting for Busy Spaces.

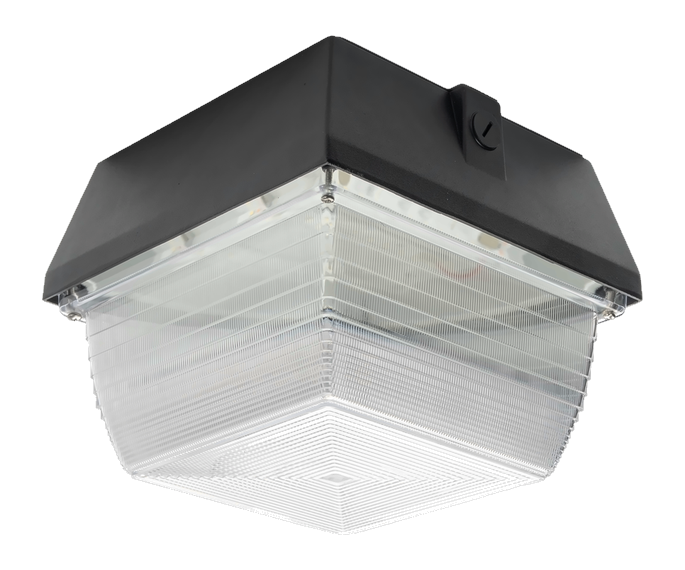

712S is a surface-mounted canopy luminaire designed for indoor and outdoor applications where reliability and even illumination are essential. Its die-cast aluminum body resists impacts and weather, while the PMMA diffuser spreads light uniformly.
Rated IP65 / IK10 and available from 10W to 25W, it suits parking garages, factories, canopies, workshops, electro-mechanical rooms and storage facilities.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.98 |
| THD | <10 |
| Working Temperature | 55°C |
| Electrical Class | Class I |
| Ingress Protection | IP65 |
| Impact Resistance | IK10 |
| Lifetime | Up to 50,000h |
| CRI | >80 |
| Housing | Die-Cast Aluminum |
| Mounting | Surface |
| Diffuser | PMMA |
| Dimensions | 225 x 166 x 185 mm |
| Weight | 9.2 kg |
| LED Type | SMD |
| Lifetime | 50,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V Dimming · DALI |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-712S 10W | 10W | 1,000 lm | 100 lm/W | 120° | >80 |
| NLC-712S 15W | 15W | 1,500 lm | 100 lm/W | 120° | >80 |
| NLC-712S 25W | 25W | 2,500 lm | 100 lm/W | 120° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
