Powerful Efficiency, Built to Last

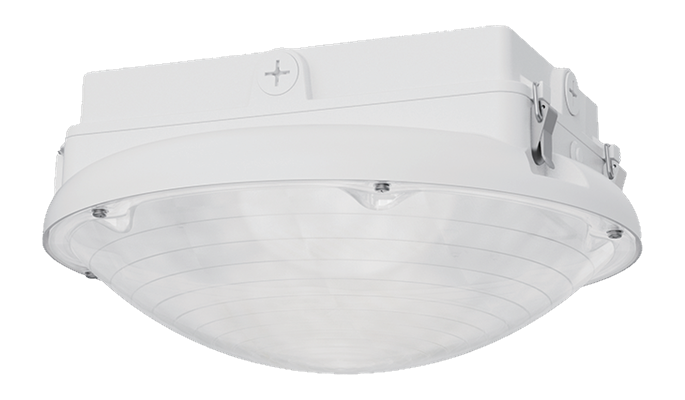

BUBBLE is a high-efficiency LED canopy luminaire built for industrial and commercial environments. Its die-cast aluminum housing with superior heat dissipation, polycarbonate optic, and IP65 / IK08 rating deliver reliable performance in demanding indoor and semi-outdoor conditions.
Available in 21W, 30W, 40W, 60W, and 70W variants delivering up to 150 lm/W and up to 10,500 lumens at 160° beam. Supports 0-10V / PWM / resistor dimming and features a 100,000-hour L70B50 lifespan.
| Input Voltage | 100–277VAC · 50/60Hz |
| Power Factor | >0.95 @ 220V · >0.90 @ 100–277V |
| THD | <10 @ 220V · <20 @ 100–277V |
| Surge Protection | Internal DM 6KV / CM 10KV · External 10KV / 20KV |
| Electrical Class | Class I |
| Dimming | 0–10V · PWM · Resistor |
| Flicker-Free | Optional |
| Working Temperature | -40°C to +50°C (ta 45°C) |
| Operating Humidity | 20–90% RH |
| Ingress Protection | IP65 |
| Impact Resistance | IK08 |
| Dimensions | W1 162 / W2 290 × H1 164 / H2 89 × L 238 mm |
| Housing | Die-cast Aluminum |
| Mounting | Ceiling / Pendant (multiple installation options) |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black · White · Grey |
| Heat Dissipation | Superior aluminum heat sink |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 100,000h · L80B20 > 50,000h |
| CRI | Standard >70 · Optional >80 |
| Switching Cycles | >25,000 times |
| Emergency Backup | Optional |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | System Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-00 21W | 21W | 3,150 lm | 150 lm/W | 160° | >70 |
| NLC-00 30W | 30W | 4,500 lm | 150 lm/W | 160° | >70 |
| NLC-00 40W | 40W | 6,000 lm | 150 lm/W | 160° | >70 |
| NLC-00 60W | 60W | 9,000 lm | 150 lm/W | 160° | >70 |
| NLC-00 70W | 70W | 10,500 lm | 150 lm/W | 160° | >70 |
* Values based on CCT 4000K | ±10% tolerance | Ensure IP65-rated sealing when connecting the cable
