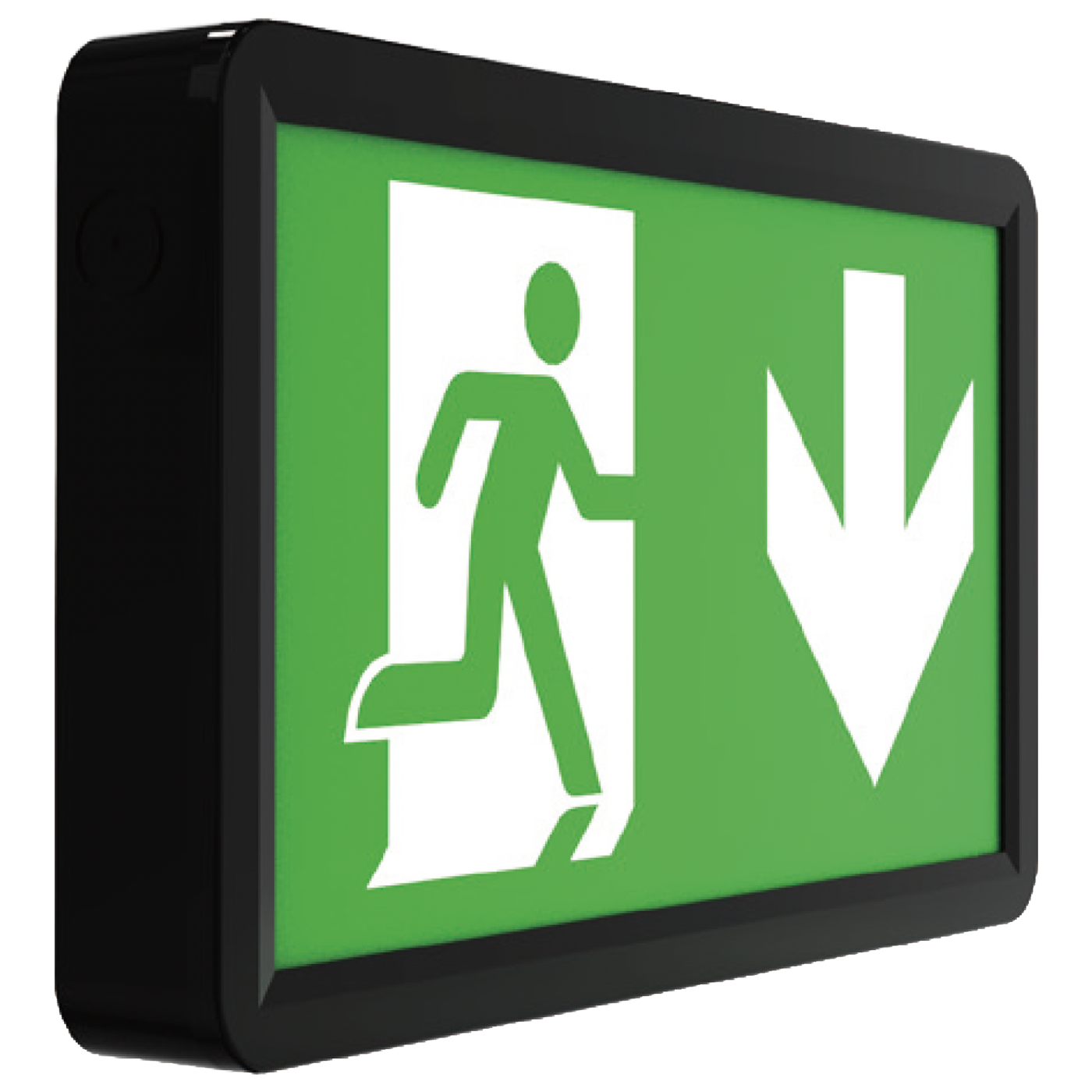

Slim 30 m LED panel exit sign box, manual / self-test.
EVAC L is a slim LED panel exit sign box with uniform back-light and a 30 m viewing distance, available in maintained and non-maintained modes. Back and side entry suit wall or surface mounting, and the pictogram is replaceable and customizable. Offered in white or black finish.
2000V surge protection, UL94V0 flame-retardant body, two pictograms included. CB / CE verified.
| Source | LED |
| LED Source | Lumileds 2835R |
| Power / Lumens | 1.0W · 150 lm |
| Input Voltage | 200–240V · 50/60Hz |
| Emergency Backup | >3 Hours |
| Operating Mode | Maintained & Non-Maintained |
| Test Mode | Dual-mode: Manual + Self-test |
| Mounting | Wall / Surface |
| Housing | 850°C UL94V0 flame-retardant polycarbonate |
| Ingress Protection | IP20 |
| Weight | 410 g |
| Dimensions | 331 × 187 × 39 mm |
| Body Colour | White / Black |
| Working Temperature | 0–50°C |
| Warranty | 5 yr product · 4 yr battery |
| Standards | CB · CE · IEC 60598 |
| Battery | LiFePO4 IFpR19/66 3.2V 1600mAh |
| Viewing Distance | 30 m |
| Housing | 850°C UL94V0 flame-retardant polycarbonate |
| Mounting | Wall / Surface |
| Body Colour | White / Black |
| Operating Mode | Maintained & Non-Maintained |
| E4D43 | 150 lm · 4W |
| Entry | Back & side entry |
| Pictogram | Replaceable / customizable |
Contact our engineering team for detailed photometric data, custom configurations, and ordering codes.
