IP 65 with UGR below 22, 26W to 40W at 120 lm/W

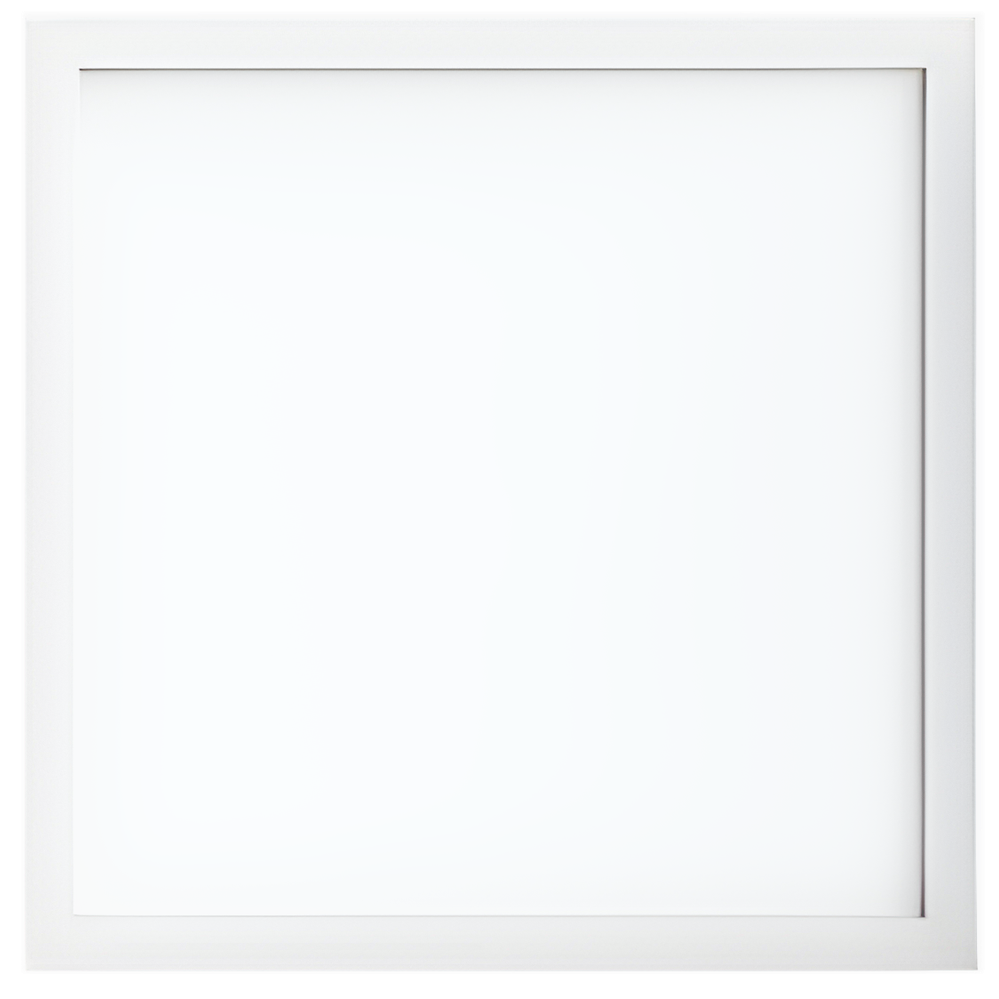

TIGHT is a commercial LED luminaire rated IP 65 with a UGR below 22, offered at 26W, 30W, 36W and 40W. All four versions run at 120LM/W for a system output of 3120LM to 4800LM, with a 110° beam angle, a standard CRI above 80 and an optional CRI above 90. It runs on 220-240VAC at 50/60 Hz, holds a power factor above 0.9 with THD below 20, and uses SMD2835 sources rated for 50,000h.
| Supply Voltage | 220-240VAC | 50/60 Hz |
| Power Factor | >0.9 |
| THD | <20 |
| Protection Class | Class II |
| IP Rating | IP 65 |
| Light Source | SMD2835 |
| Efficiency | 120LM/W |
| CRI | Standard: >80 / Optional: >90 |
| Beam Angle | 110° |
| UGR | <22 |
| Lifetime | 50,000h |
| CCT Options | 3000K, 4000K, 5000K, 6500K |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI | Source |
|---|---|---|---|---|---|---|
| NLC-TIT | 26W | 120LM/W | 3120LM | 110° | Standard: >80 / Optional: >90 | SMD2835 |
| NLC-TIT | 30W | 120LM/W | 3600LM | 110° | Standard: >80 / Optional: >90 | SMD2835 |
| NLC-TIT | 36W | 120LM/W | 4320LM | 110° | Standard: >80 / Optional: >90 | SMD2835 |
| NLC-TIT | 40W | 120LM/W | 4800LM | 110° | Standard: >80 / Optional: >90 | SMD2835 |
* Values as published in the NLC product catalogue
