LED luminaire from 20W to 40W at 120LM/W, with 220-240VAC or 28-40VDC input.

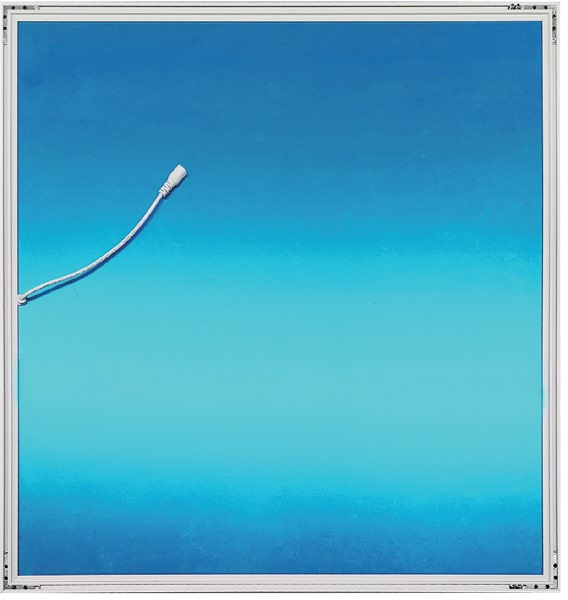

Frameless is an IP 40, Class II LED luminaire available at 20W, 24W, 30W, 36W and 40W, all rated at 120LM/W over a 110 degree beam angle, from 2400LM up to 4800LM. It uses an SMD2835 source with colour consistency within 6 SDCM and CRI above 80 as standard or above 90 as an option, in 3000K, 4000K, 5000K and 6500K. It accepts 220-240VAC or 28-40VDC at 50/60 Hz, with a power factor above 0.9, THD below 20 and a rated life of 50,000 hours.
| Input Voltage | 220-240VAC / 28-40VDC |
| Frequency | 50/60 Hz |
| Power Factor | >0.9 |
| THD | <20 |
| Protection Class | Class II |
| Ingress Protection | IP 40 |
| Light Source | SMD2835 |
| CCT | 3000K / 4000K / 5000K / 6500K |
| Colour Consistency | <6 SDCM |
| CRI | Standard: >80, Optional: >90 |
| Lifetime | 50,000h |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-FLS | 20W | 120LM/W | 2400LM | 110° | Standard: >80, Optional: >90 |
| NLC-FLS | 24W | 120LM/W | 2880LM | 110° | Standard: >80, Optional: >90 |
| NLC-FLS | 30W | 120LM/W | 3600LM | 110° | Standard: >80, Optional: >90 |
| NLC-FLS | 36W | 120LM/W | 4320LM | 110° | Standard: >80, Optional: >90 |
| NLC-FLS | 40W | 120LM/W | 4800LM | 110° | Standard: >80, Optional: >90 |
* Values as published in the NLC product catalogue
