Emergency luminaire with LiFePO4 battery and 3 to 4 hours duration

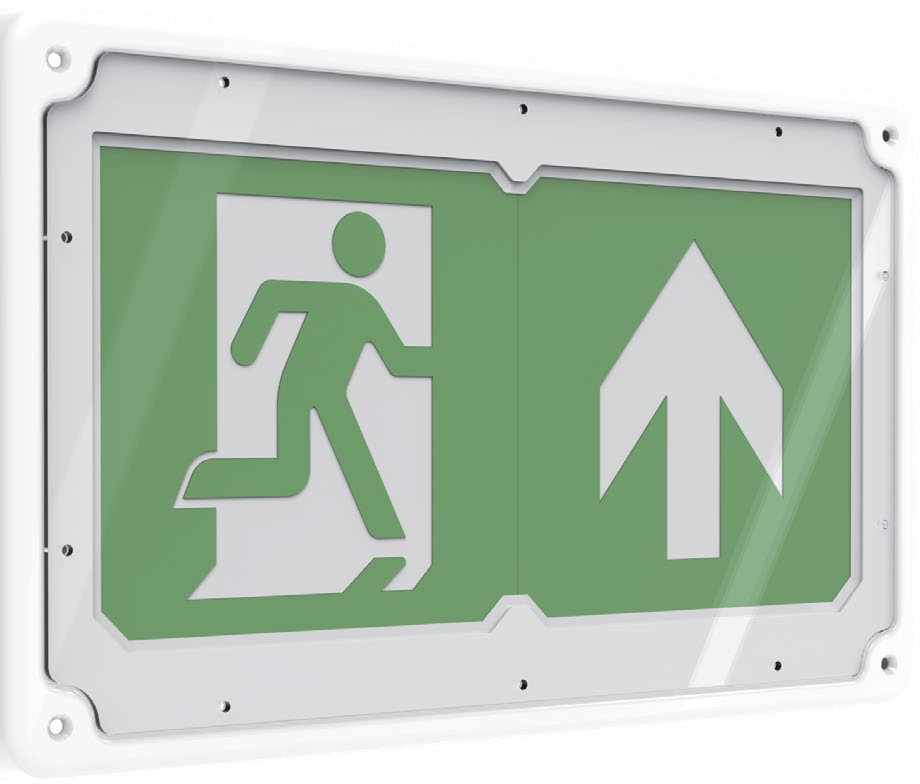

Stampede is a 3W emergency LED luminaire delivering 80LM at 27 LM/W over a 110° beam angle, with a LiFePO4 battery rated for 3 to 4 hours of duration time. It is rated IP65 and Class I and operates on 200-240VAC at 50/60Hz with a power factor above 0.7. It is offered in 3000K, 4000K and 5000K, with CRI above 80 as standard or above 90 on request, and a rated life of 100,000 hours. Emergency operation and a sensor are marked on the catalog spread.
| Input Voltage | 200-240VAC | 50/60Hz |
| Power Factor | >0.7 |
| Protection Class | Class I |
| Battery | LiFePO4 |
| Duration Time | 3-4 Hours |
| Ingress Protection | IP65 |
| Efficiency | 27LM/W |
| CRI | Standard: >80 / Optional: >90 |
| Beam Angle | 110° |
| Lifetime | 100,000h |
| CCT | 3000K Warm / 4000K Daylight / 5000K Daylight |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-STA | 3W | 27LM/W | 80LM | 110° | Standard: >80 / Optional: >90 |
* Values as published in the NLC product catalogue
