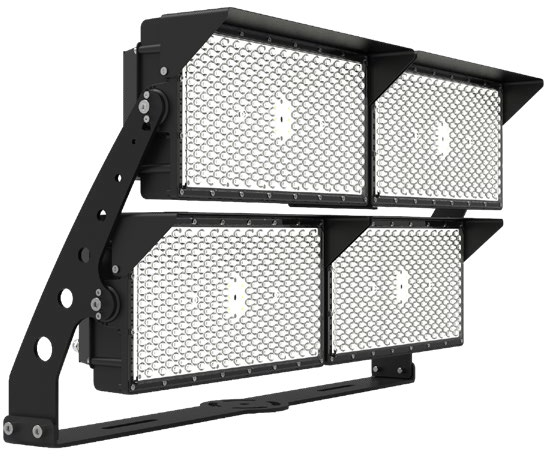

250W to 1500W industrial LED luminaire at 150 LM/W
Artias is an industrial LED luminaire offered at 250W, 500W, 750W, 1000W and 1500W with a rated efficiency of 150 LM/W, giving system outputs of 37500LM to 225000LM from SMD3030 LEDs. The catalog lists beam angles of 10°, 25°, 45°, 60° and 90°, a CRI above 70 as standard with above 80 optional, and a rated life of 50,000h. It is rated IP66 and IK10, is Class I, runs on 100-277VAC at 50/60Hz with a power factor above 0.95, and is finished in black.
| Input Voltage | 100-277VAC | 50/60Hz |
| Power Factor | > 0.95 |
| Protection Class | Class I |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Housing Colour | Black |
| Beam Angle Options | 10°, 25°, 45°, 60°, 90° |
| Light Source | SMD3030 |
| Efficiency | 150 LM/W |
| CRI | Standard: >70, Optional: >80 |
| Lifetime | 50,000h |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI | Source |
|---|---|---|---|---|---|---|
| NLC-AS | 250W | 150LM/W | 37500LM | 10° / 25° / 45° / 60° / 90° | Standard: >70, Optional: >80 | SMD3030 |
| NLC-AS | 500W | 150LM/W | 75000LM | 10° / 25° / 45° / 60° / 90° | Standard: >70, Optional: >80 | SMD3030 |
| NLC-AS | 750W | 150LM/W | 112500LM | 10° / 25° / 45° / 60° / 90° | Standard: >70, Optional: >80 | SMD3030 |
| NLC-AS | 1000W | 150LM/W | 150000LM | 10° / 25° / 45° / 60° / 90° | Standard: >70, Optional: >80 | SMD3030 |
| NLC-AS | 1500W | 150LM/W | 225000LM | 10° / 25° / 45° / 60° / 90° | Standard: >70, Optional: >80 | SMD3030 |
* Values as published in the NLC product catalogue
