Shaping Water with Light.

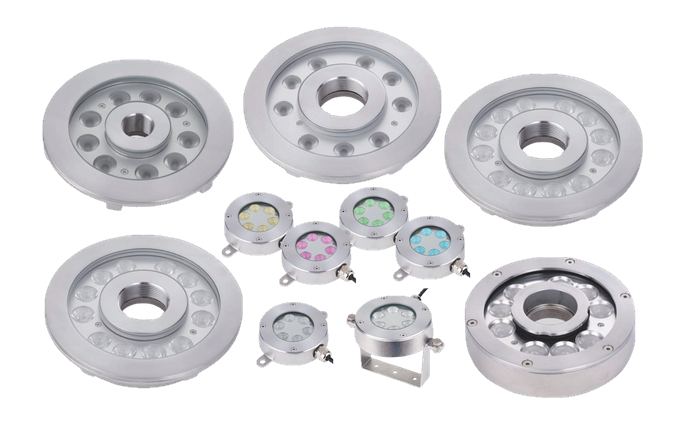

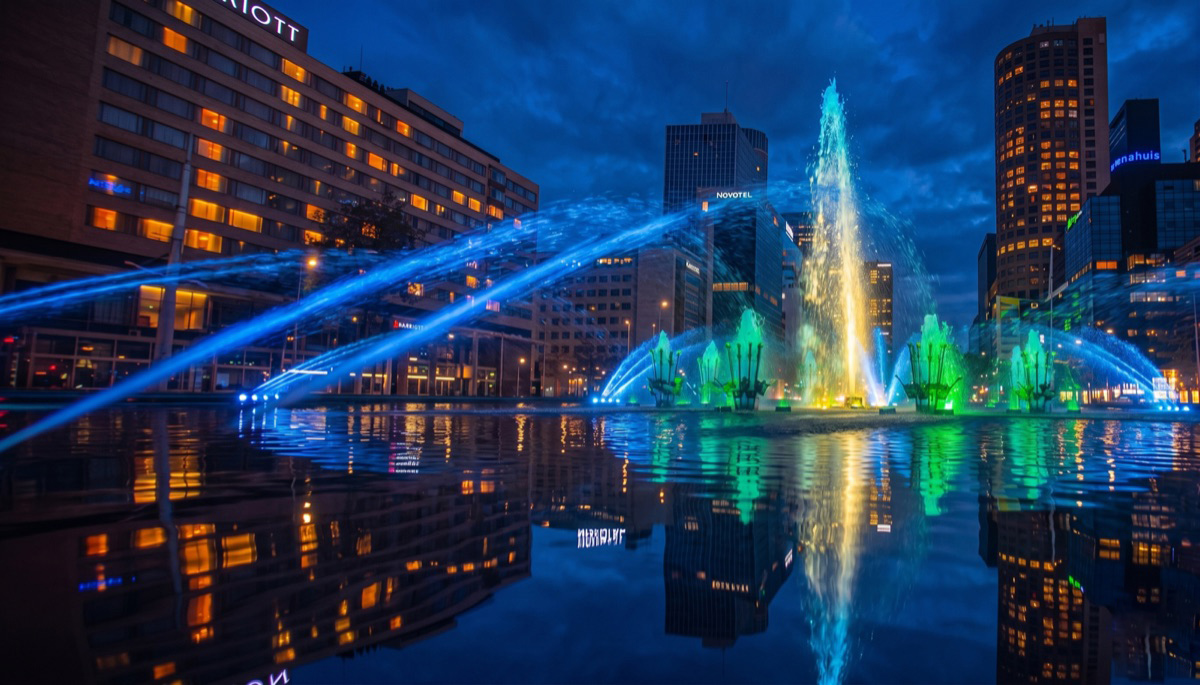

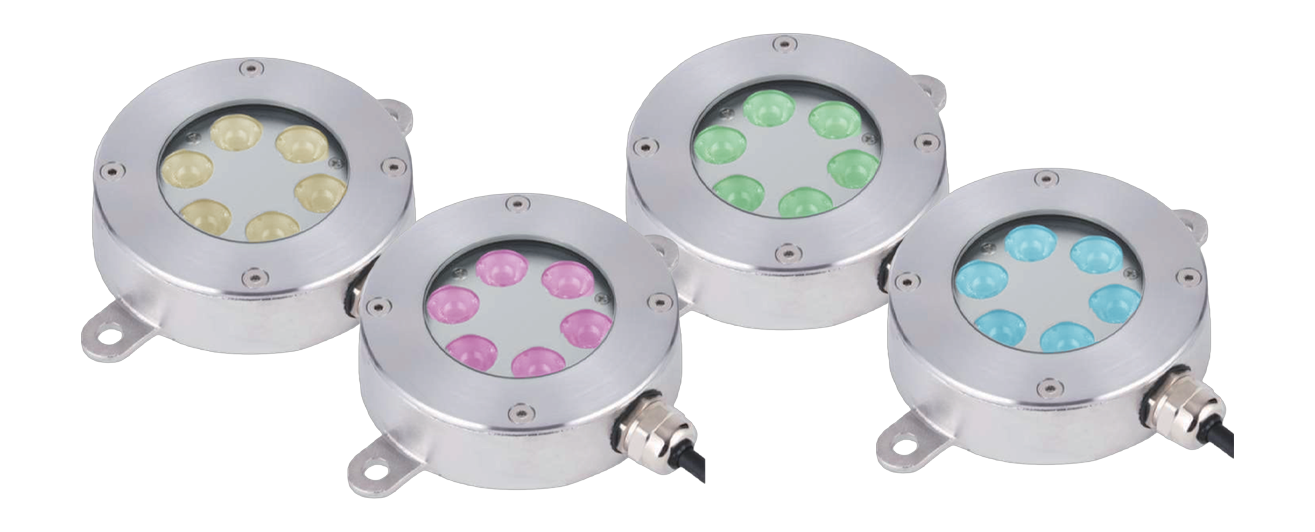

SPLASHY is a underwater luminaire developed for fountains and decorative water features. Engineered with 316 stainless steel housing and ultra-white tempered glass, it delivers consistent submerged illumination at IP68 with IK09 impact resistance, ideal for public spaces, landscapes and architectural projects where performance and visual impact are equally important.
Available in single-color, RGB and RGBW configurations from 12W to 24W with 9 beam-angle options, integrated waterjet pipe fittings (G 1½″ and G ¾″ taper), and full DMX/DALI dimming support.
| Input Voltage | DC 12V / 24V |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class III |
| Dimming | On/Off · Triac · 1-10V · DALI · DMX512 (built-in/external) · PWM |
| Working Temperature | -20°C to +50°C |
| Ingress Protection | IP68 (submersible) |
| Impact Resistance | IK09 |
| Beam Angles | 10° / 15° / 25° / 45° / 60° / 120° / 10×35° / 10×45° / 10×60° |
| Housing | 316 Stainless Steel |

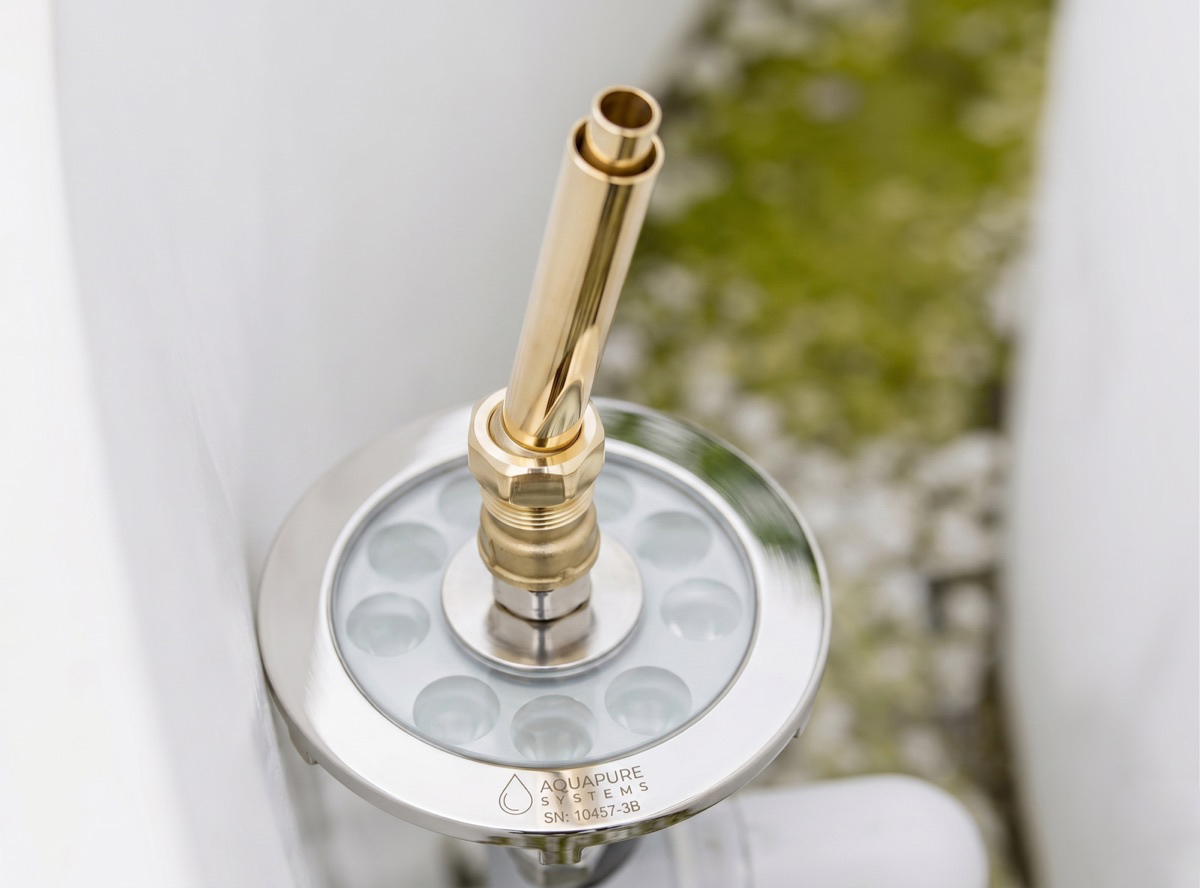

| Mounting | Many fountain mounting options + integrated waterjet pipe (G 1½″ / G ¾″ taper) |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP67 Copper Nickel-Coated (or 316 SS optional) |
| LED Type | SMD3535 |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-SA12W | 12W | 900 lm | 10°–120° | ≥80 | 6-LED · RGB/RGBW option |
| NLC-SA18W | 18W | 1,350 lm | 10°–120° | ≥80 | 9-LED · RGB/RGBW option |
| NLC-SA24W | 24W | 1,800 lm | 10°–120° | ≥80 | 12-LED · RGB/RGBW option |
* Values based on CCT 3000K | ±10% tolerance
