Where Water Meets Light.

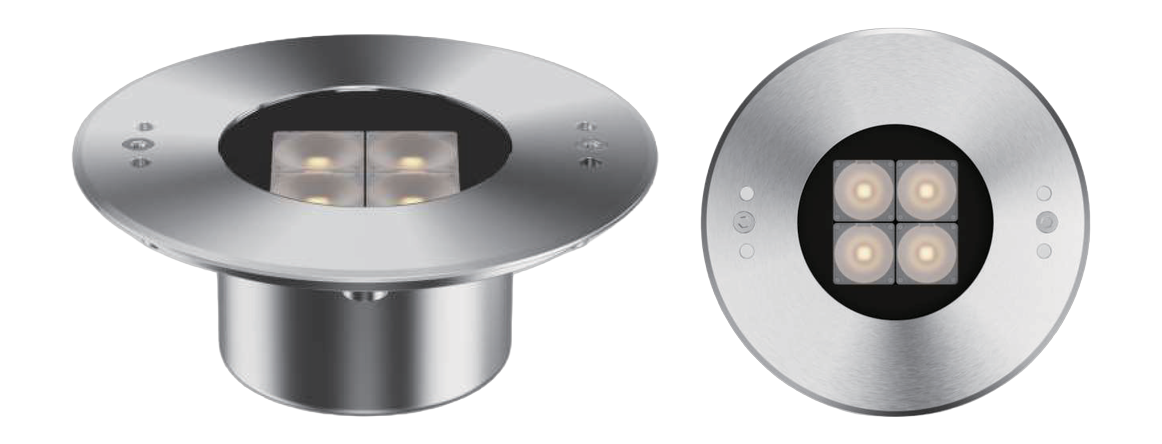

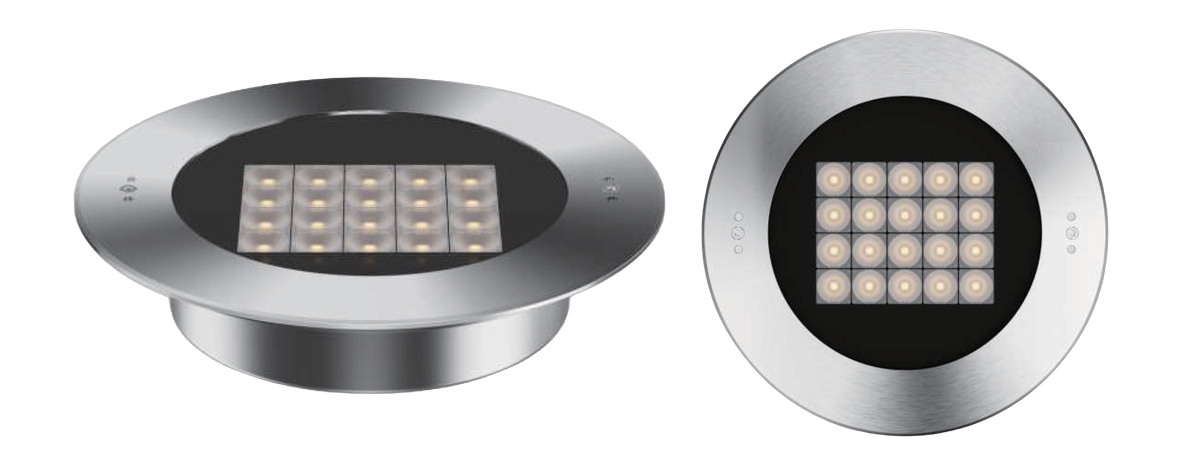

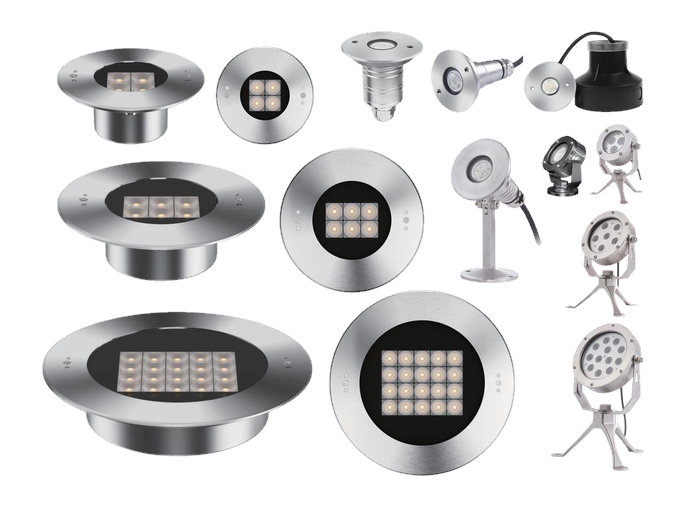

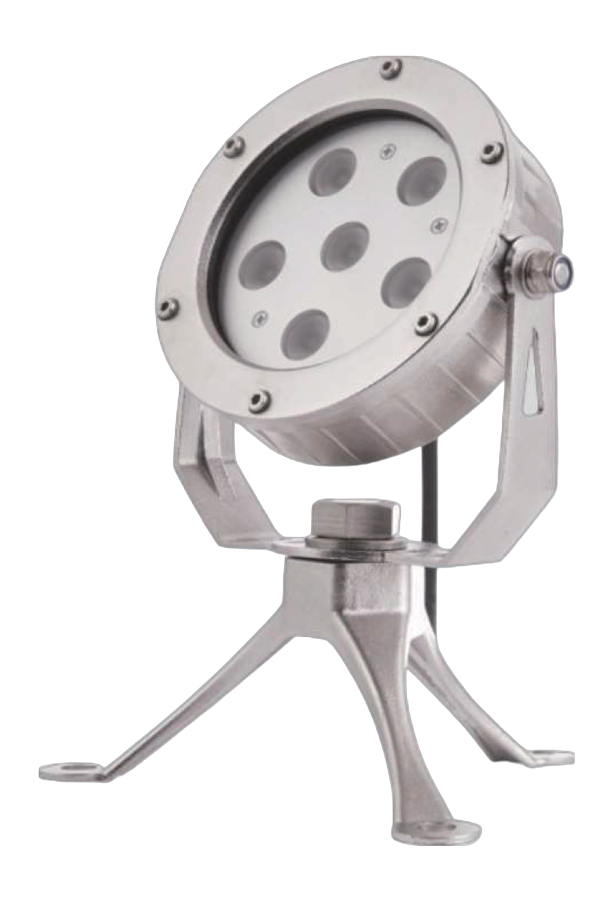

DOLPHINE is an elegant underwater pool light that enhances water features with refined illumination and a sleek, integrated design. Engineered with 316 stainless steel housing and ultra-white tempered glass, it withstands continuous submersion at IP68 with IK09 impact resistance.
Available in single-color, RGB and RGBW configurations from 2W to 36W, with full DMX/DALI dimming and 9 beam-angle options for spotlights, washes and feature accents.
| Input Voltage | DC 12V / 24V |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class III |
| Dimming | On/Off · DMX · DALI · DMX512 (built-in/external) |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 100% RH (submersible) |
| Ingress Protection | IP68 |
| Impact Resistance | IK09 |
| Beam Angles | 10° / 15° / 25° / 45° / 60° / 120° / 10×35° / 10×45° / 10×60° |
| Housing | 316 Stainless Steel |

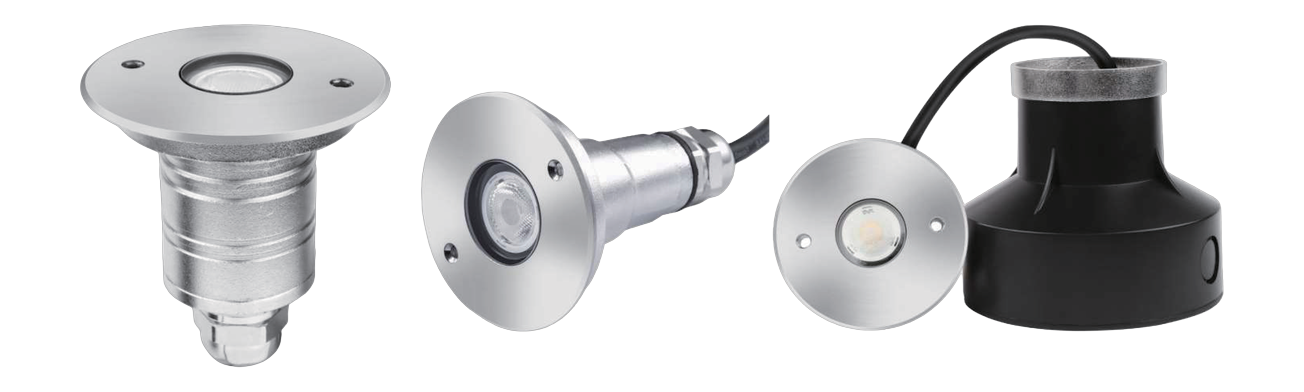

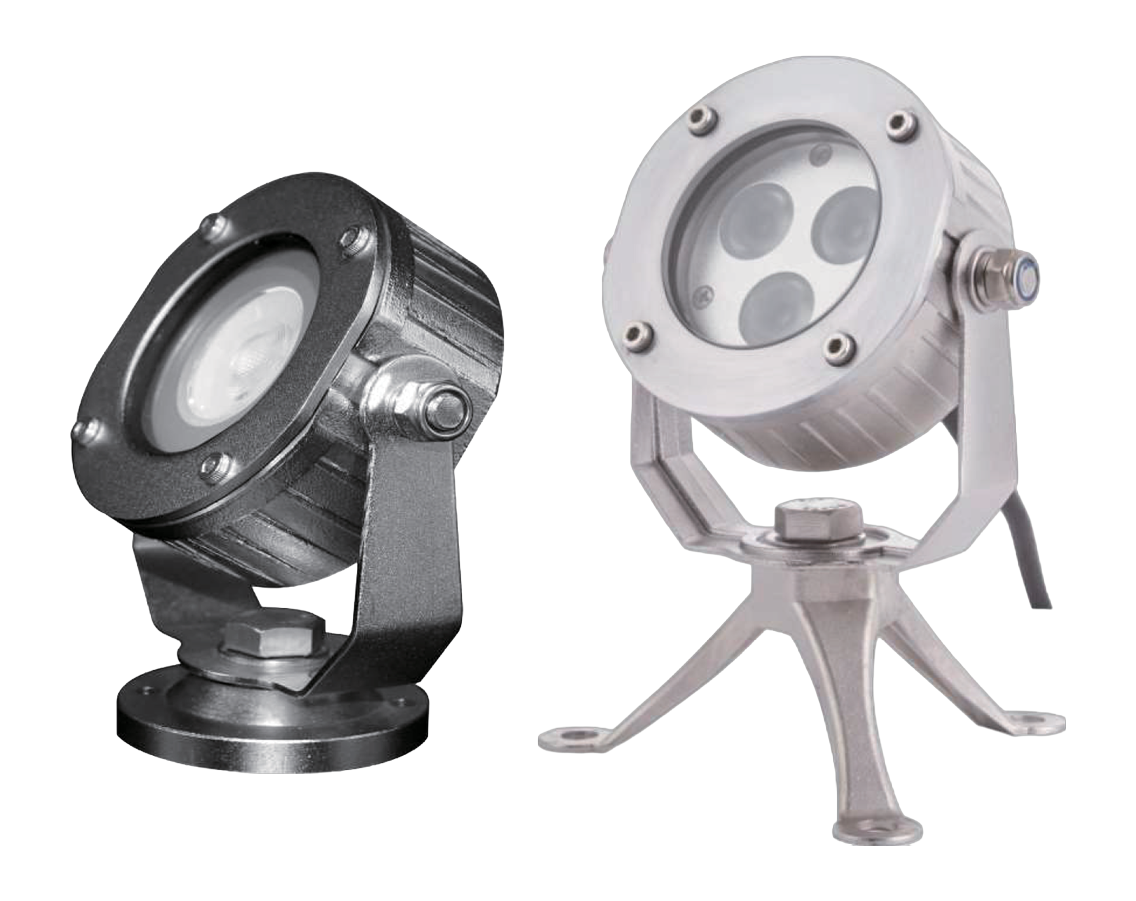

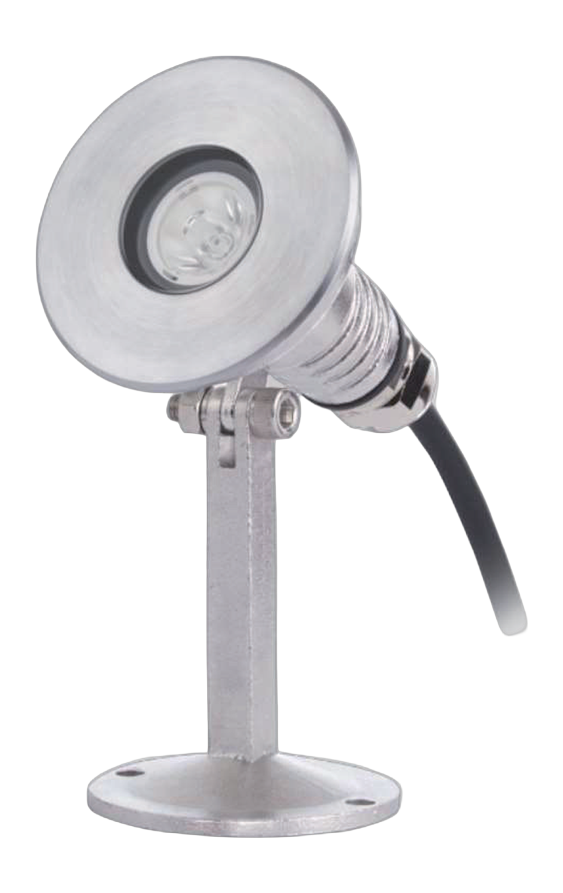

| Mounting | Multiple options |
| Light Window | Ultra-white Tempered Glass |
| Cable Gland | IP67 Copper Nickel-Coated (or 316 SS optional) |
| LED Type | SMD3535 |
| Lifetime | L70B50 > 30,000h |
| Switching Cycles | >15,000 times |
| CRI | Standard >80 · Optional >90 |
| Warranty | 3 Years (extendable to 5) |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-DO02W | 2W | 150 lm | 10°–120° | ≥80 | Single LED |
| NLC-DO03W | 3W | 225 lm | 10°–120° | ≥80 | Single LED |
| NLC-DO06W | 6W | 450 lm | 10°–120° | ≥80 | Single / RGB / RGBW |
| NLC-DO08W | 8W | 600 lm | 10°–120° | ≥80 | 4-LED · RGBW option |

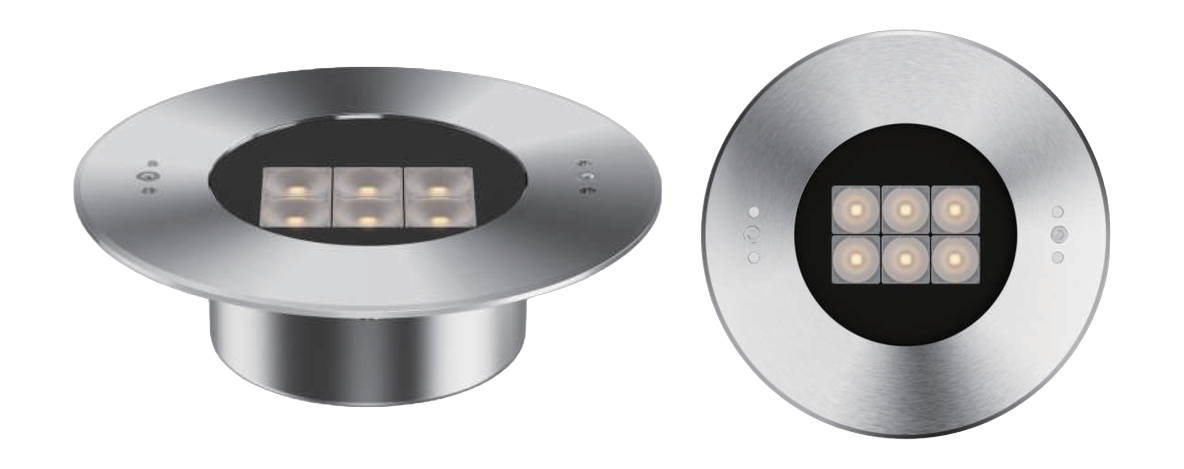

| NLC-DO12W | 12W | 900 lm | 10°–120° | ≥80 | 6-LED · RGBW option |
| NLC-DO15W | 15W | 1,125 lm | 10°–120° | ≥80 | 6-LED · RGBW option |

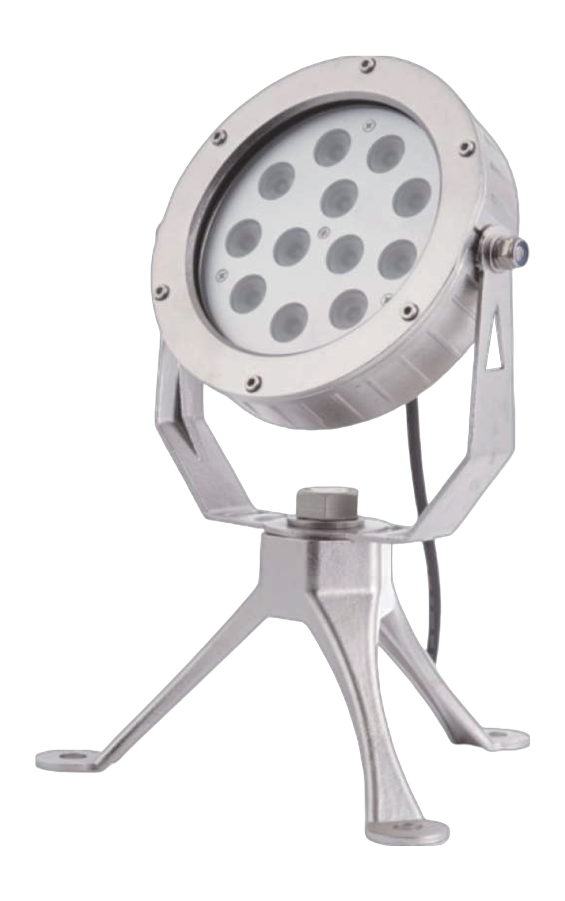

| NLC-DO24W | 24W | 1,800 lm | 10°–120° | ≥80 | 12-LED · RGBW option |
| NLC-DO36W | 36W | 2,700 lm | 10°–120° | ≥80 | 18-LED · RGBW option |
* Values based on CCT 3000K | ±10% tolerance
