Elegant Post Top Lighting for Parks and Urban Spaces

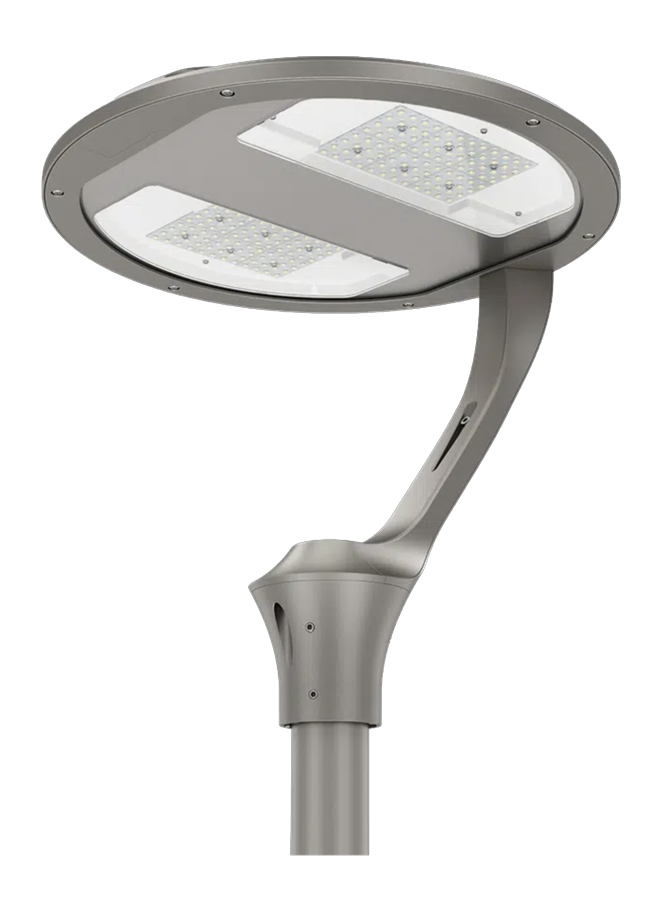

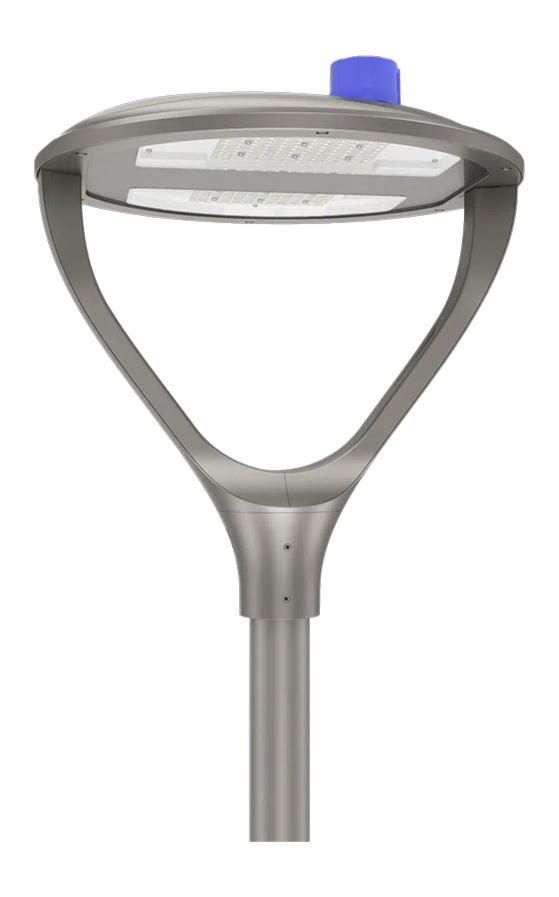

The SLEEK Post Top is an elegant pole-mounted luminaire that brings a refined, architectural presence to parks, gardens, and urban landscapes. With up to 130 lm/W efficiency, IP65 protection, and a die-cast aluminum housing, it pairs graceful form with the durability outdoor spaces demand.
| Input Voltage | 100–240VAC | 50/60Hz |
| Power Factor | >0.9 |
| THD | <15% |
| Surge Protection | 2KV (L-N), 4KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Operating Humidity | 10–85% RH |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Housing | Die-Cast Aluminum |
| Mounting | Post Top (Ø60 mm Spigot) |
| Optics | PC Lens |
| Body Finish | Powder-Coated |
| LED Type | SMD3030 |
| Lifetime | L70B50 >50,000h |
| Dimming | Optional 0-10V |
| Switching Cycles | >50,000 |
| Emergency Backup | Optional |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SK-PT | 30W | 130 lm/W | 3,900 lm | 120° | >70 std · >80 opt |
| NLC-SK-PT | 40W | 130 lm/W | 5,200 lm | 120° | >70 std · >80 opt |
| NLC-SK-PT | 60W | 130 lm/W | 7,800 lm | 120° | >70 std · >80 opt |
* Values based on CCT 4000K | ±10% tolerance
