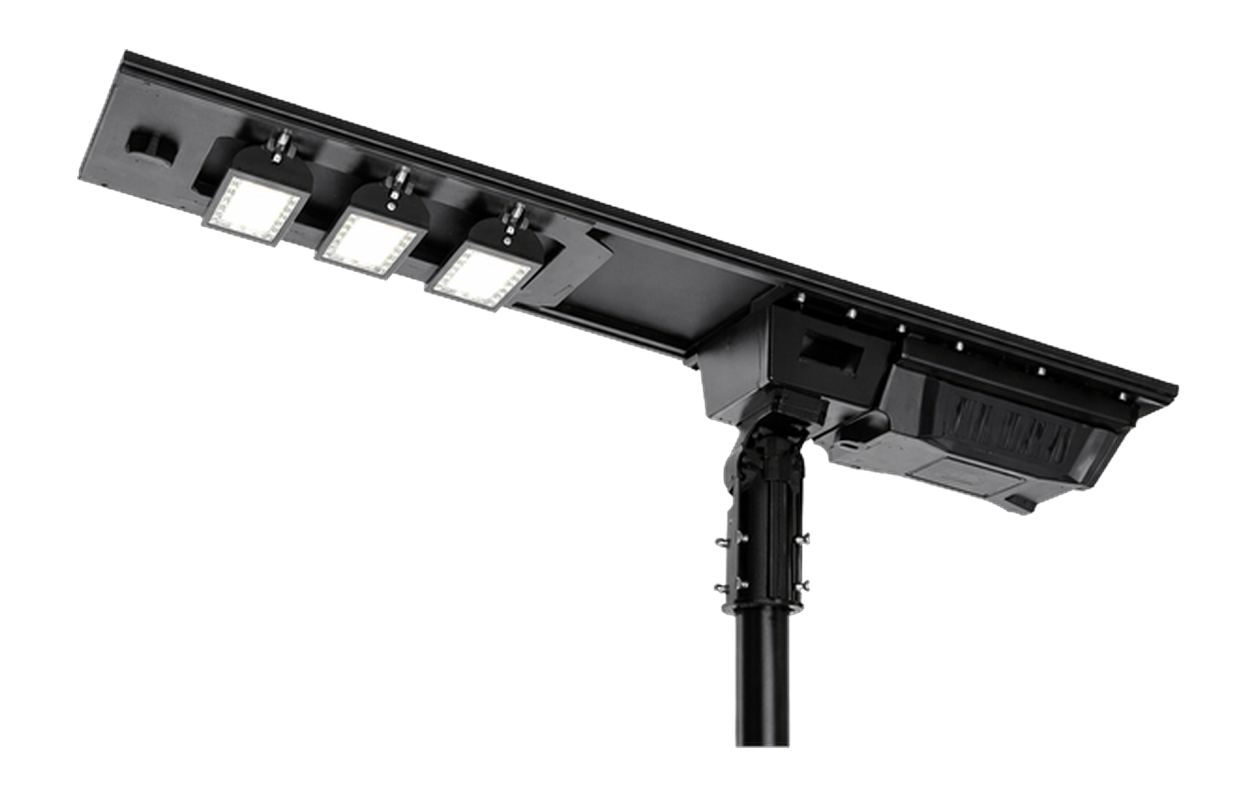

Integrated solar street luminaire with PV, battery and LED in a single unit.
The S401 is an all-in-one solar LED street light from NLC's ST Series, integrating the PV panel, battery and LED luminaire into a single post-top unit. Available in 30W, 50W, 80W, 100W and 120W with an efficacy of 200 lm/W, delivering up to 24,000 lumens.
Built with a die-cast aluminum housing and polycarbonate lens, rated IP65 / IK08 and backed by a 5-year warranty. Charging time is 6–8 hours via an 18V solar panel, with optional dimming, photocell, timing, intelligent power saving and microwave/PIR sensor control.
| Power | 30W / 50W / 80W / 100W / 120W |
| Lumen Output | 6,000 – 24,000 LM |
| Efficacy | 200 Lumens / Watt |
| Power Factor | 0.98 |
| THD | < 10 |
| Solar Panel Voltage | 18V |
| Charging Time | 6 – 8 Hours |
| CRI | > 80 |
| Life Time | 72,000 Hours |
| Housing | Die cast aluminum |
| Lens | Polycarbonate |
| Mounting | Post top |
| Weight | 12 – 26 Kg |
| Internal Protection | IP 65 |
| Impact Strength | IK 08 |
| Working Temperature | 60°C |
| Warranty | 5 Years |
| 30W | 910 × 366 × 106 mm · 6,000 LM |
| 50W | 1210 × 366 × 106 mm · 10,000 LM |
| 80W | 1060 × 550 × 110 mm · 16,000 LM |
| 100W | 1145 × 550 × 110 mm · 20,000 LM |
| 120W | 1390 × 550 × 110 mm · 24,000 LM |
| Dimming | Available |
| Photocell Sensor | Available |
| Timing | Available |
| Intelligent Power Saving | Available |
| Motion Sensor | Microwave or PIR |
| Solar Panel Voltage | 18V |
| Charging Time | 6 – 8 Hours |
| Mounting | Post top |
| Applications | Outdoor roads & area lighting |
| Environmental Note | Free of any hazardous materials |
Contact our engineering team for detailed photometric data, custom configurations, and ordering codes.
