PL Series · Panel Light

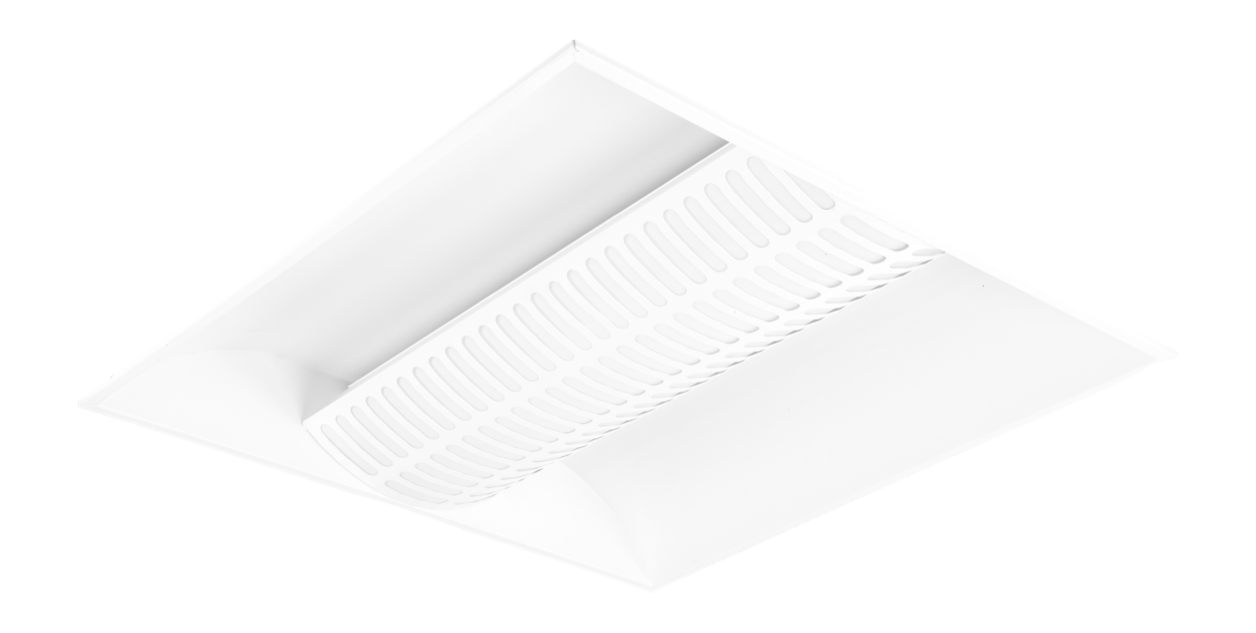

PL-03
Larger Recessed Panel Light.
IP20
IK05
110 lm/W
5.2–8.7 kg
Colours
220–240V / 110–277V
5-Year Warranty
40–80W
Power
Up to 8,800 lm
Lumens
110 lm/W
Efficacy
72,000h
Lifetime
Larger Recessed Panel Light.
PL-03 is a larger recessed false-ceiling panel light from the same PL family, sized for bigger spaces, same iron-phosphated sheet construction and PMMA diffuser.
Offered in 40W / 60W / 80W with 110 lm/W efficiency, IP20 / IK05 protection, and flexible-size plus dimming options.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.96 |
| THD | <10 |
| Working Temperature | 50°C |
| Electrical Class | Class I |
| Ingress Protection | IP20 |
| Impact Resistance | IK05 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Iron Phosphated Sheet |
| Mounting | Recessed · False Ceiling |
| Diffuser | PMMA |
| Weight | 5.2–8.7 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · IP54 · Surface / Pendant · Flexible Size · Air Plenum · Hygienic |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PL-03 40W | 40W | 4,400 lm | 110 lm/W | 110° | >80 |
| NLC-PL-03 60W | 60W | 6,600 lm | 110 lm/W | 110° | >80 |
| NLC-PL-03 80W | 80W | 8,800 lm | 110 lm/W | 110° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
