PL Series · Panel Light

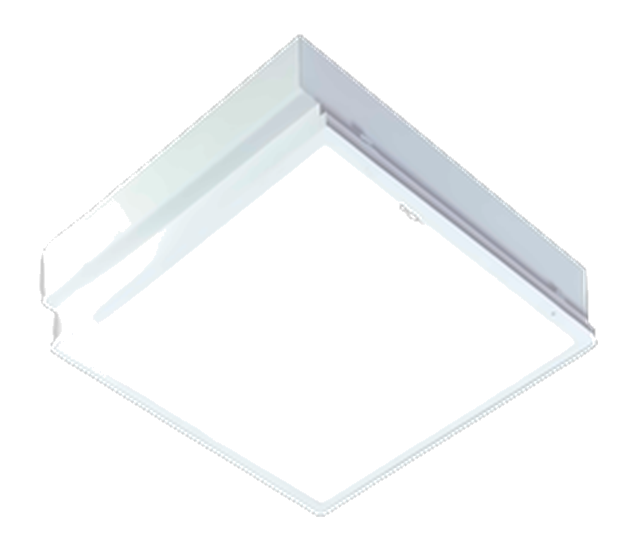

PL-02
Recessed Panel Light with Iron-Phosphate Frame.
IP44
IK05
135 lm/W
5.2–8.7 kg
Colours
220–240V / 110–277V
5-Year Warranty
30–90W
Power
Up to 12,150 lm
Lumens
135 lm/W
Efficacy
72,000h
Lifetime
Recessed Panel Light with Iron-Phosphate Frame.
PL-02 is a recessed false-ceiling panel light built for offices, clinics, classrooms, corridors and retail spaces. Iron-phosphated sheet housing with PMMA diffuser delivers uniform, glare-controlled illumination.
Available from 30W to 90W with 135 lm/W efficiency, IP44 / IK05 protection and options for IP65 variant, surface/pendant mounting, flexible sizes, air-plenum rating and hygienic-location configurations.
| Input Voltage | 220–240V / 110–277V · 50/60Hz |
| Power Factor | 0.96 |
| THD | <10 |
| Working Temperature | 55°C |
| Electrical Class | Class I |
| Ingress Protection | IP44 |
| Impact Resistance | IK05 |
| Lifetime | Up to 72,000h |
| CRI | >80 |
| Housing | Iron Phosphated Sheet |
| Mounting | Recessed · False Ceiling |
| Diffuser | PMMA |
| Dimensions | 30W: 30×120×5.6 cm · 45W/58W: 60×60×5.6 cm · 75W/90W: 60×120×5.6 cm |
| Weight | 5.2–8.7 kg |
| LED Type | SMD |
| Lifetime | 72,000h |
| CRI | >80 |
| Options | Emergency 3Hr · 0-10V · DALI · IP65 · Surface / Pendant · Flexible Size · Air Plenum · Hygienic |
| Model | Power | Lumen | Efficiency | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PL-02 30W | 30W | 4,050 lm | 135 lm/W | 110° | >80 |
| NLC-PL-02 45W | 45W | 6,075 lm | 135 lm/W | 110° | >80 |
| NLC-PL-02 58W | 58W | 7,830 lm | 135 lm/W | 110° | >80 |
| NLC-PL-02 75W | 75W | 10,125 lm | 135 lm/W | 110° | >80 |
| NLC-PL-02 90W | 90W | 12,150 lm | 135 lm/W | 110° | >80 |
* Certifications: SASO 2902 · UL Listed · LM79 · IST/MT · TM21 · Photobiological
