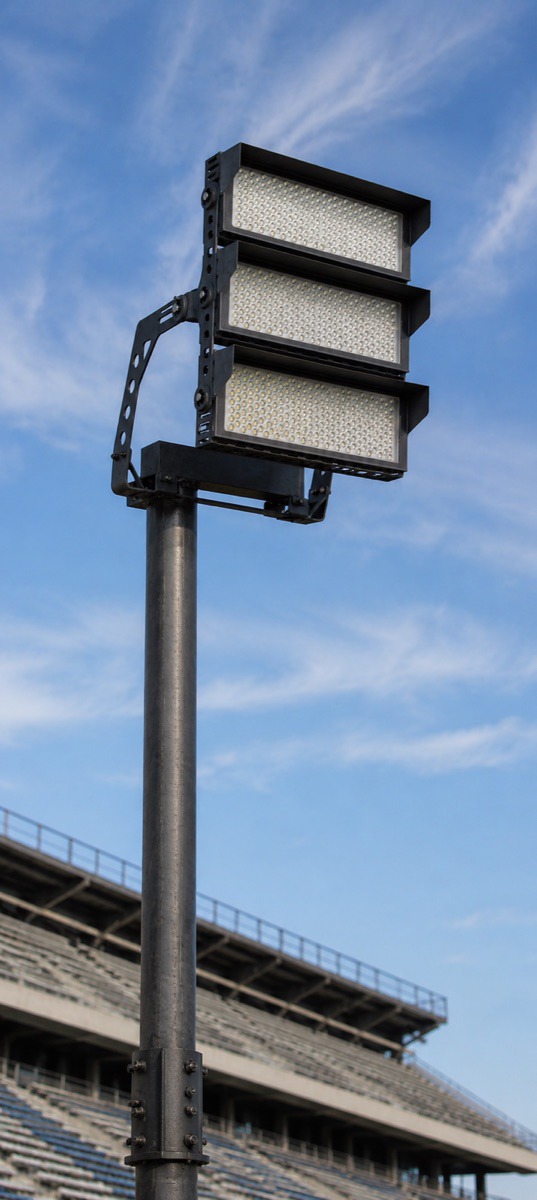

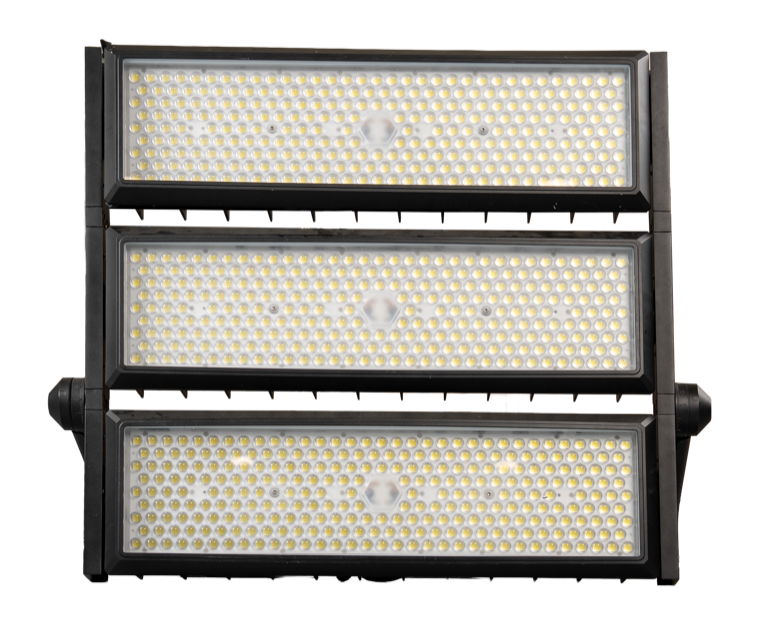

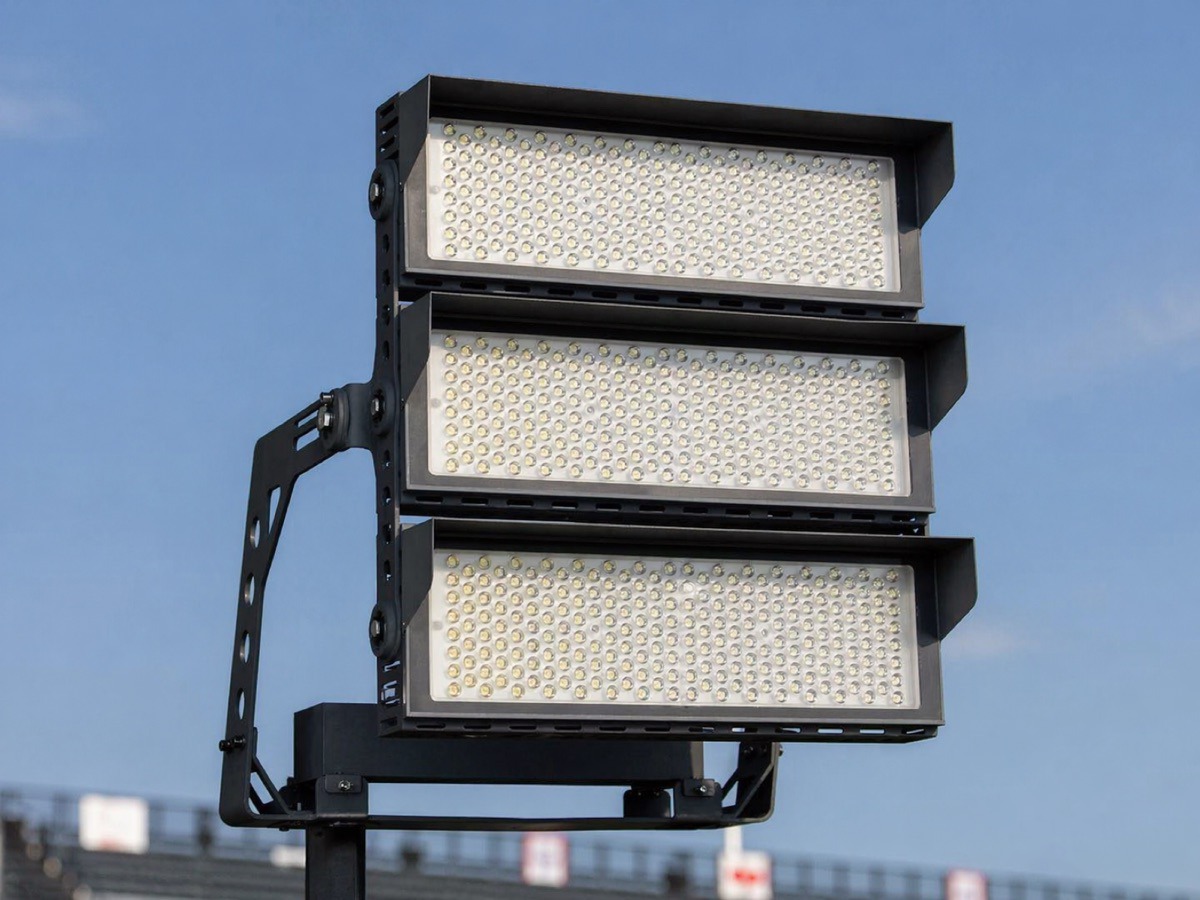

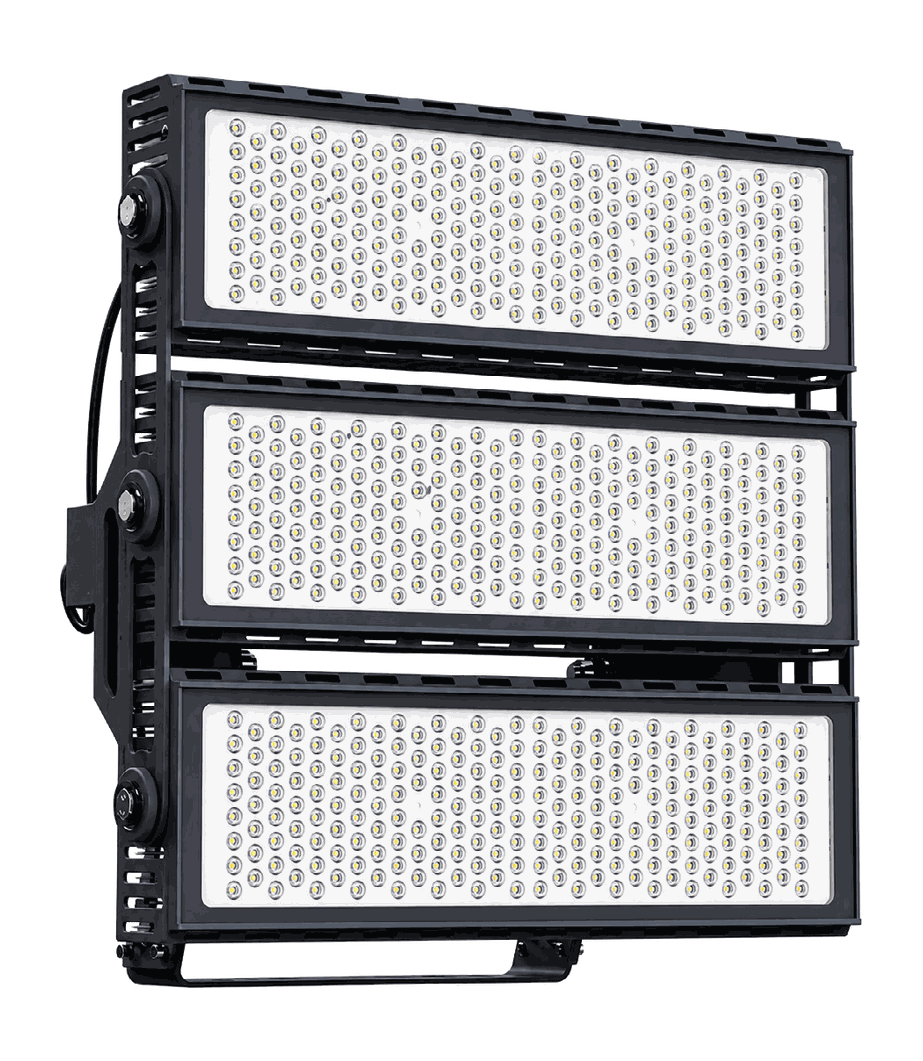

Stadium Light
BEACON
Specifications coming soon.
-
Power
-
Lumens
-
Efficiency
-
Beam Angle
-
CRI
-
Lifetime
Specifications coming soon.
Product details for BEACON will be added soon. Please contact us for current specifications and availability.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Dimensions | 6 shapes, see Features tab |
| Housing | Cold Rolled Steel |
| Mounting | Recessed / Surface / Suspended |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black · Gray · White |
| LED Type | SMD5050 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | - |
| Block (NLC-CHB) | L1196 × W296 × H12 mm |
| Line (NLC-CHL) | L1200 × W155 × H24.5 mm |
| Master (NLC-CHM) | L596 × W596 × H25.5 / H12 mm |
| Hexa (NLC-CHH) | L550 × W635 × H26.2 mm |
| Way (NLC-CHW) | L596 × W596 × H25.5 / H12 mm |
| Square (NLC-CHS) | L596 × W596 × H25.5 / H12 mm |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-CHB (Block) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHL (Line) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHM (Master) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHH (Hexa) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHW (Way) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHS (Square) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
* Values based on CCT 4000K | ±10% tolerance
