Crisp and Clear Illumination for Every Corner

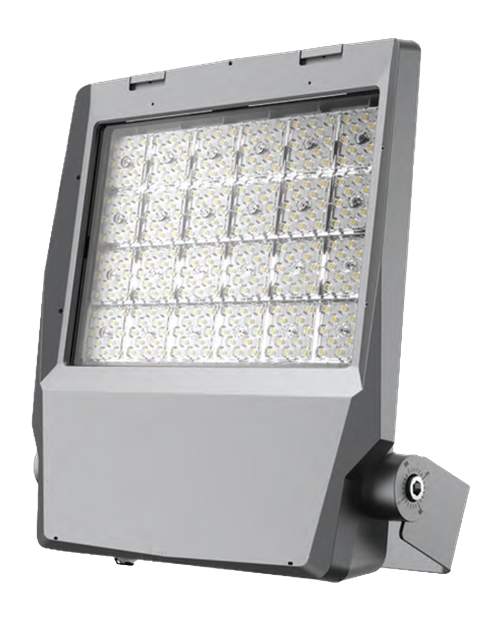

The PLAZMA flood light offers high efficiency with multiple beam angles including an asymmetric option for specialised illumination. Available from 50W to 200W, it is suited for tunnels, billboards, stadiums, and industrial facilities.
| Input Voltage | 100–277VAC | 50/60Hz |
| Power Factor | >0.95 @ 220V / >0.90 @ 100–277V |
| THD | <10 @ 220V / <20 @ 100–277V |
| Surge Protection | Internal: DM 6KV/CM 10KV, External: 10KV/20KV |
| Electrical Class | Class I |
| Working Temperature | -30°C to +50°C |
| Operating Humidity | 10–85% RH |
| Dimensions | 50/100W: 386H×300L×78W mm · 150/200W: 390H×485L×95.5W mm |
| Housing | Die-cast Aluminum |
| Mounting | Bracket / Pole Mounting |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | SMD3030 |
| Lifetime | L70B50 >50,000h | L80B20 >30,000h |
| Dimming | 0-10V / PWM / Resistor |
| Switching Cycles | >25,000 |
| Emergency Backup | Optional |
| Flicker-Free | نعم |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PL | 50W | 140 lm/W | 7,000 lm | 13° / 30° / 60° / 90° / Asymmetric | >70 std · >80 opt |
| NLC-PL | 100W | 140 lm/W | 14,000 lm | 13° / 30° / 60° / 90° / Asymmetric | >70 std · >80 opt |
| NLC-PL | 150W | 140 lm/W | 21,000 lm | 13° / 30° / 60° / 90° / Asymmetric | >70 std · >80 opt |
| NLC-PL | 200W | 140 lm/W | 28,000 lm | 13° / 30° / 60° / 90° / Asymmetric | >70 std · >80 opt |
* Values based on CCT 4000K | ±10% tolerance
* Asymmetric beam option available
