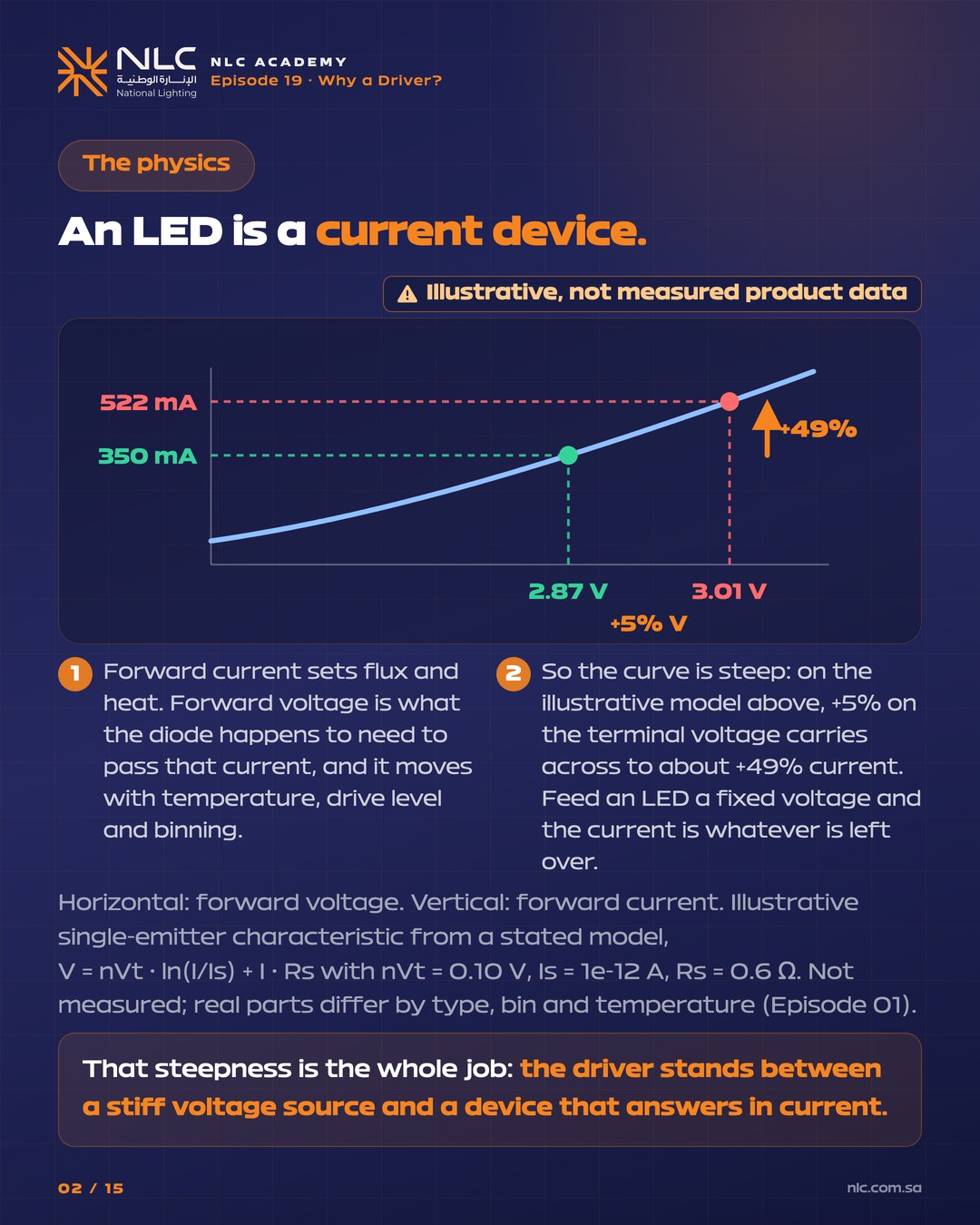

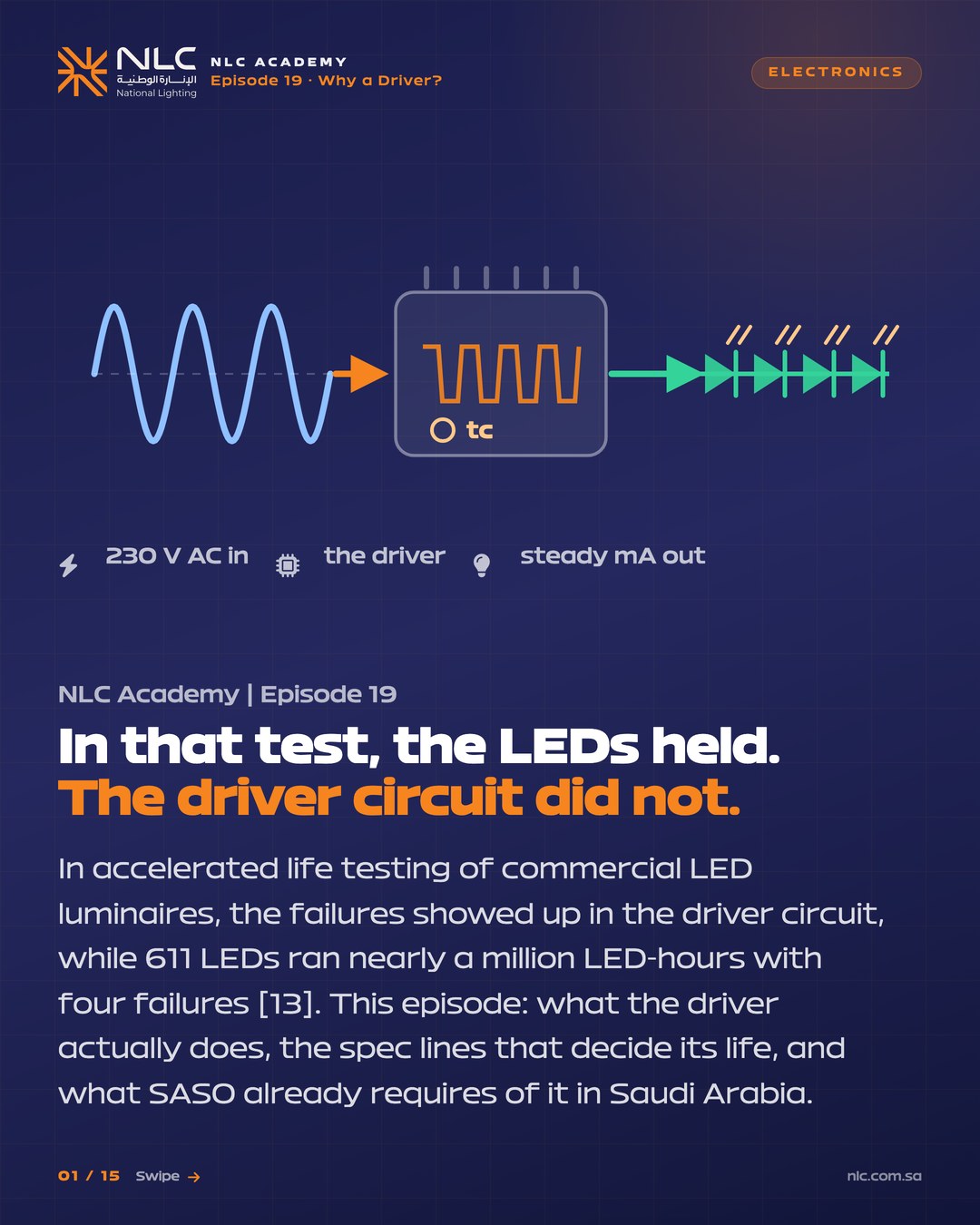

An LED is a current-controlled diode. The grid is voltage-controlled AC. The driver is the bridge, and it decides life expectancy, dimming behaviour, and surge survival. Half of a premium fixture's price is in this one box.
Four ideas to carry into the next specification conversation you have.

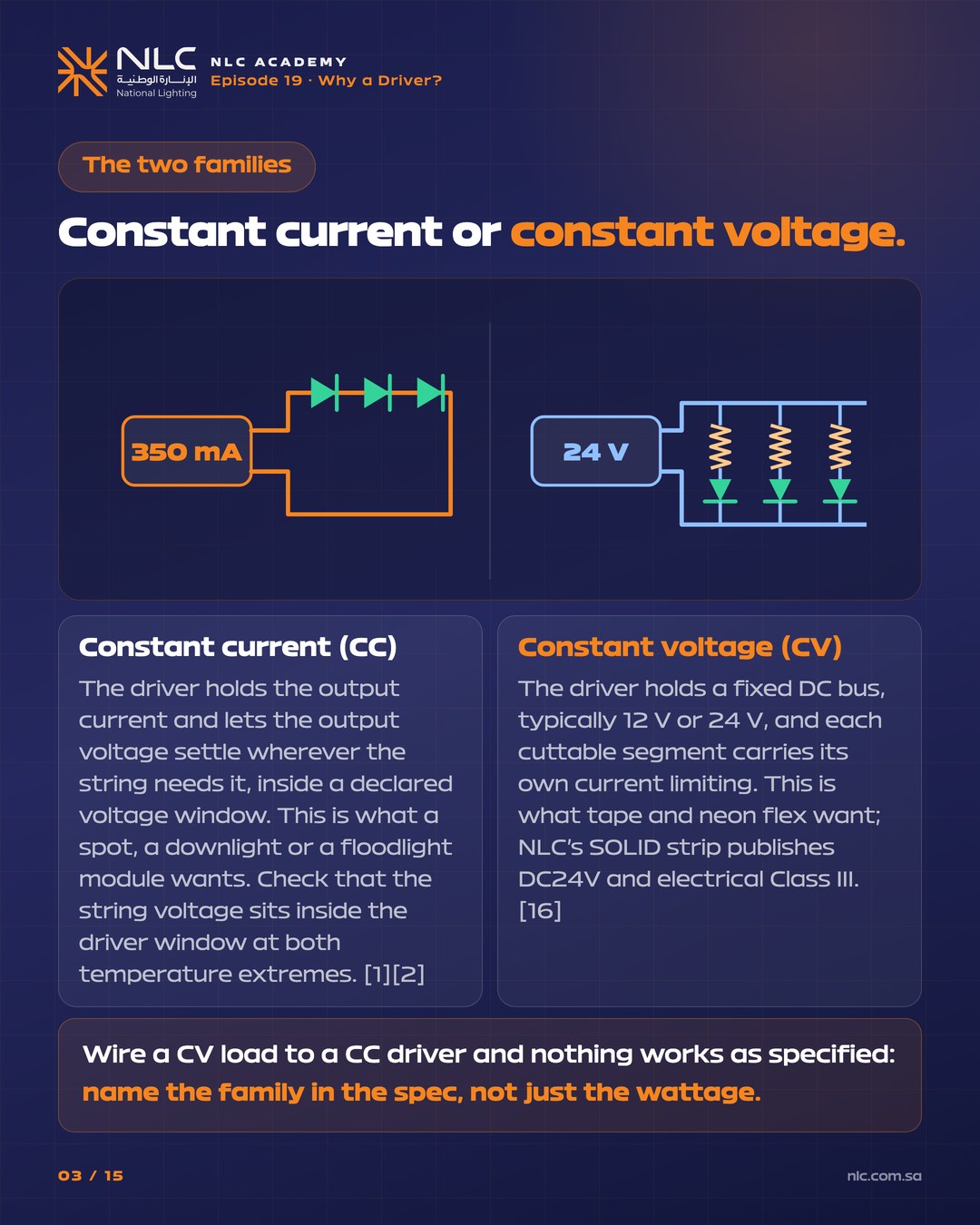

Modern LED drivers regulate output current (mA), not voltage. The voltage adjusts to whatever string the load needs. CC = predictable lumens.
LED tape and modular signage typically want a fixed DC voltage (12V or 24V) and have their own per-LED resistors. CV drivers serve those.
Class I drivers need protective earth, used in metal fixtures. Class II are double-insulated, used in plastic-bodied or recessed fixtures. Don't mix.
Phase-cut (TRIAC) for residential retrofits. 0-10 V for commercial. DALI for control systems. PWM for fine colour. Each demands a different driver.
Typical specifications for premium LED drivers. Cheap drivers undershoot all these.
| Spec line | Premium target | Reference |
|---|---|---|
| Efficiency | > 90% at full load | ENERGY STAR / IEC 62384 |
| Power factor | > 0.95 (full) · > 0.90 (50% dim) | IEC 61000-3-2 Class C |
| THD | < 10% (full) · < 20% (50% dim) | IEC 61000-3-2 |
| Lifetime | ≥ 50,000 h at Tc ≤ rated | IEC 62384 + LM-80 (LEDs) |
| Surge withstand | ≥ 4 kV L-N / 6 kV L-PE | IEC 61547 / 61000-4-5 |
| Output ripple | < 5% at full load | IEEE 1789 (flicker) |
| Dimming range | 1% to 100% linear | DALI-2 / 0-10V / DT8 |
| Warranty | ≥ 5 years (premium) | Manufacturer's letter |
Five gaps between budget and premium LED drivers.
Most driver failures start with the input electrolytic cap. Its life halves every 10 °C above rated. A premium driver uses 105 °C-rated long-life caps; a budget one uses 85 °C caps. Same fixture, 30,000 h vs 100,000 h life.
A driver claiming 1-100% dimming may actually drop to 30% with PWM gating below that, visible flicker on camera, low-end lumen non-linearity. Always verify with a flicker meter (FPF, SVM) at low dim levels.
TRIAC dimmers (Lutron, Leviton, Saudi Schneider) interact differently with each driver brand. A spec saying "dimmable" without naming the dimmer model is broken. The driver datasheet has a compatibility matrix, use it.
LM-80 covers the LED; IEC 62384 covers the driver. A driver tested for L70 at Tc = 75 °C running at Tc = 90 °C in your fixture will fail in half the rated life. Spec a temperature probe location on the body marked tc.
Premium specs require the driver to be field-replaceable through an access plate, not potted into the fixture. When the driver dies at year 8, you change a 200 SAR component, not a 2,000 SAR fixture. Field-replaceable drivers cost 5–10% more, and save 50% lifecycle cost.
Every NLC fixture ships with a Tridonic, Philips/Signify, Inventronics, or Osram driver in a field-replaceable carrier, warranted 5 years.
