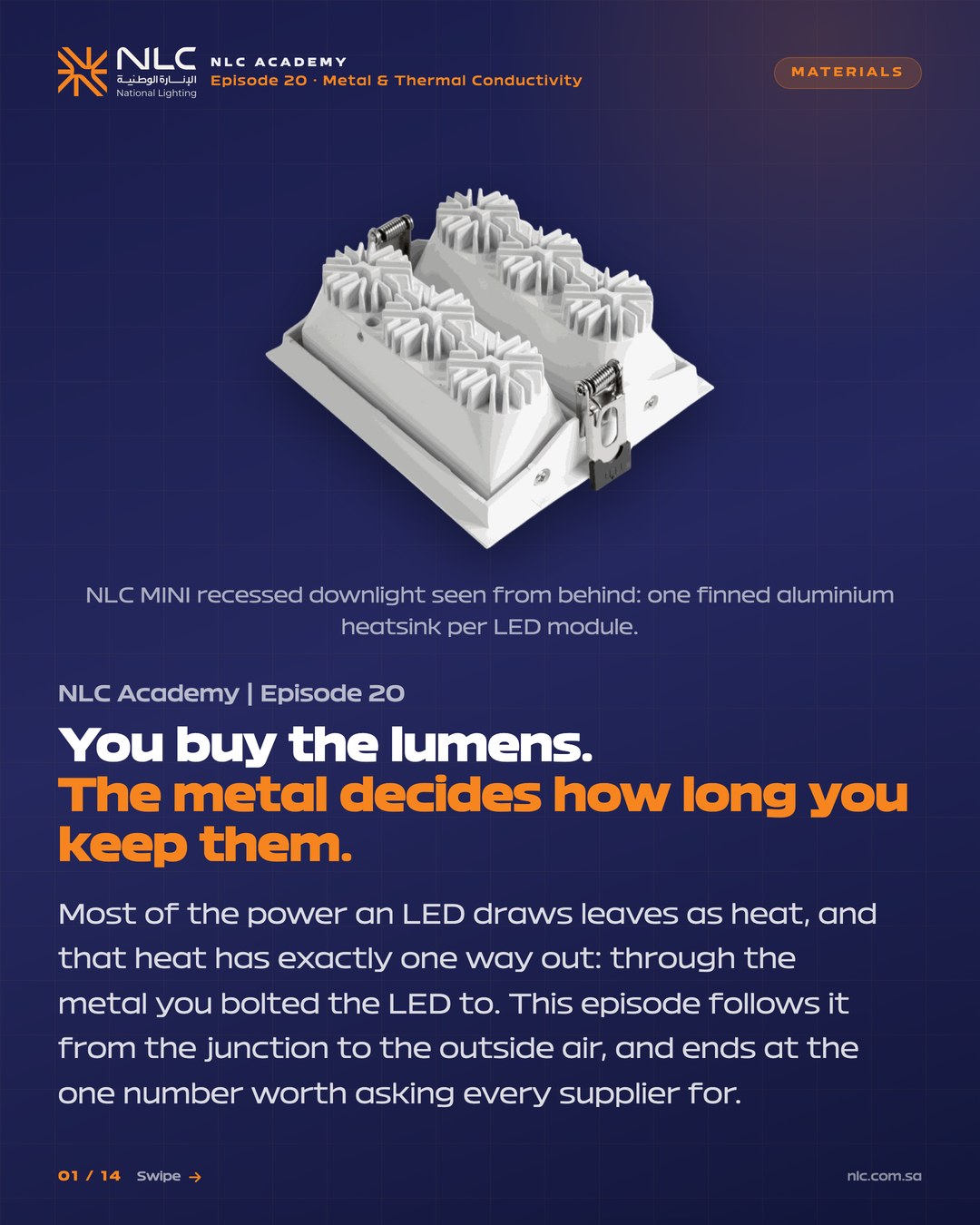

Metal & thermal, an LED's life depends on the metal around it

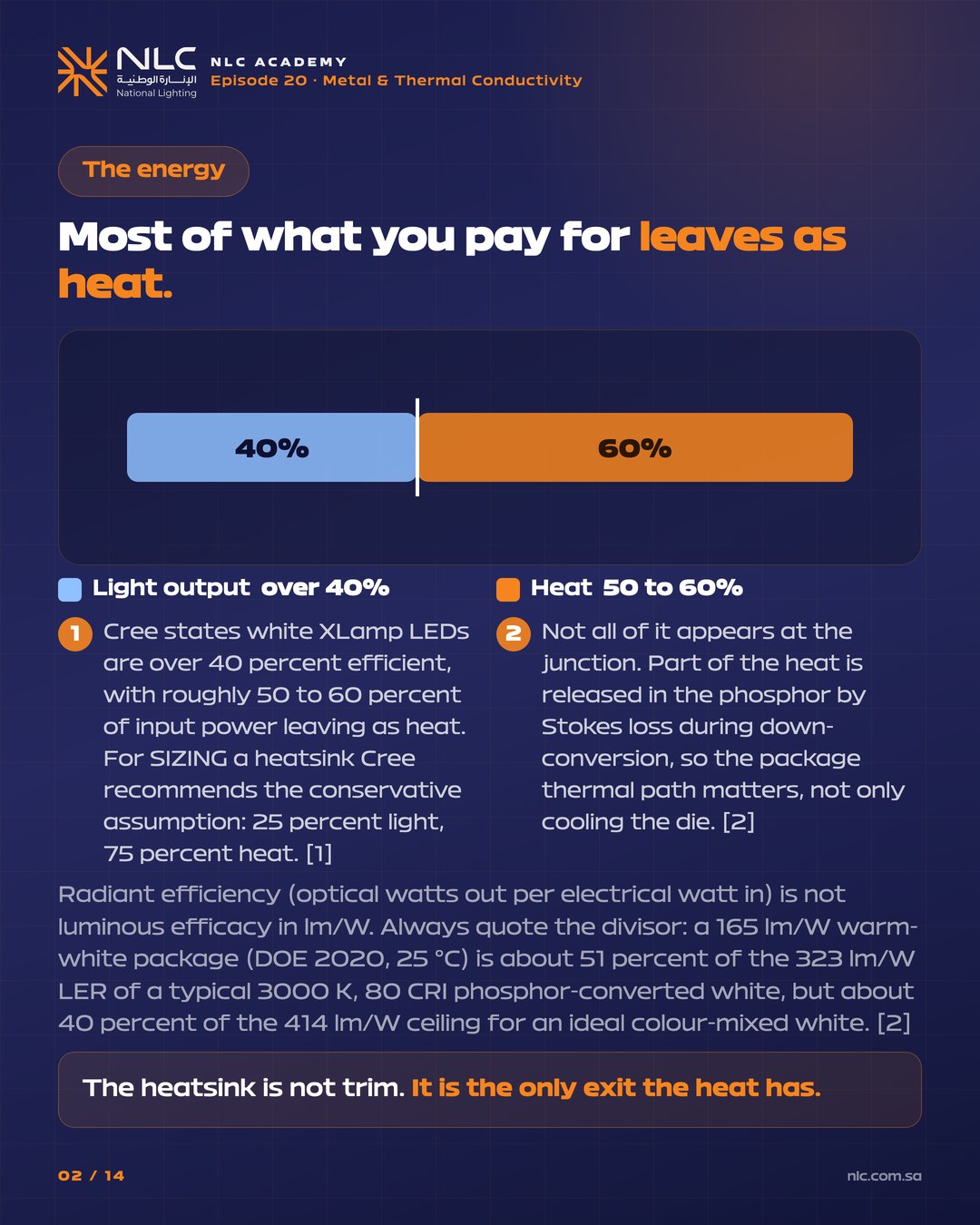

An LED converts 30–50% of input power to light. The rest becomes heat, at the junction. If that heat doesn't leave the chip, the chip dies. The aluminium housing isn't decoration, it's the lifeline.

Animated explainer, press play to watch the concepts now; the filmed cut publishes once production wraps.

What you'll walk away with

Four ideas to carry into the next specification conversation you have.

01

Junction temperature (Tj) is the kill switch.

LED life data (LM-80) is reported at Tj. Every 10 °C above rated Tj cuts useful life roughly in half. Spec a maximum Tj, then size the heatsink.

02

Aluminium thermal conductivity varies 5× by alloy.

Pure Al (1100) ≈ 220 W/m·K. Cast Al (A380) ≈ 100. Extruded 6063 (the usual heatsink) ≈ 200. Pick the alloy for the job.

03

Surface area beats mass.

A 1 kg fin-dense heatsink dissipates more than a 2 kg solid block. Fin spacing 5–8 mm for natural convection; closer for forced air.

04

TIM is invisible but critical.

Thermal Interface Material between LED MCPCB and heatsink. Without it, the air gap at the contact undoes everything. Spec a graphite/ceramic pad or thermal grease.

Aluminium alloys × thermal performance

Thermal conductivity at 25 °C, typical use in lighting fixtures.

Alloy Conductivity · process Typical use
1100 (pure)220 W/m·K · sheetReflectors, decorative
6063 (extruded)200 W/m·K · extrusionLinear heatsinks · streetlight pole-arm
6061 (structural)170 W/m·K · machinedCustom heatsinks · brackets
A380 (die-cast)96 W/m·K · pressure die-castHighbay shell · outdoor housings
A360 (die-cast premium)120 W/m·K · pressure die-castPremium downlight bodies
ADC12 (Japanese standard)92 W/m·K · die-castAsian-market fixtures
Copper (Cu)385 W/m·K · sheet/machinedPCB inserts · premium projects

From chip to ambient, the thermal path

Five thermal-design ideas that separate good fixtures from great ones.

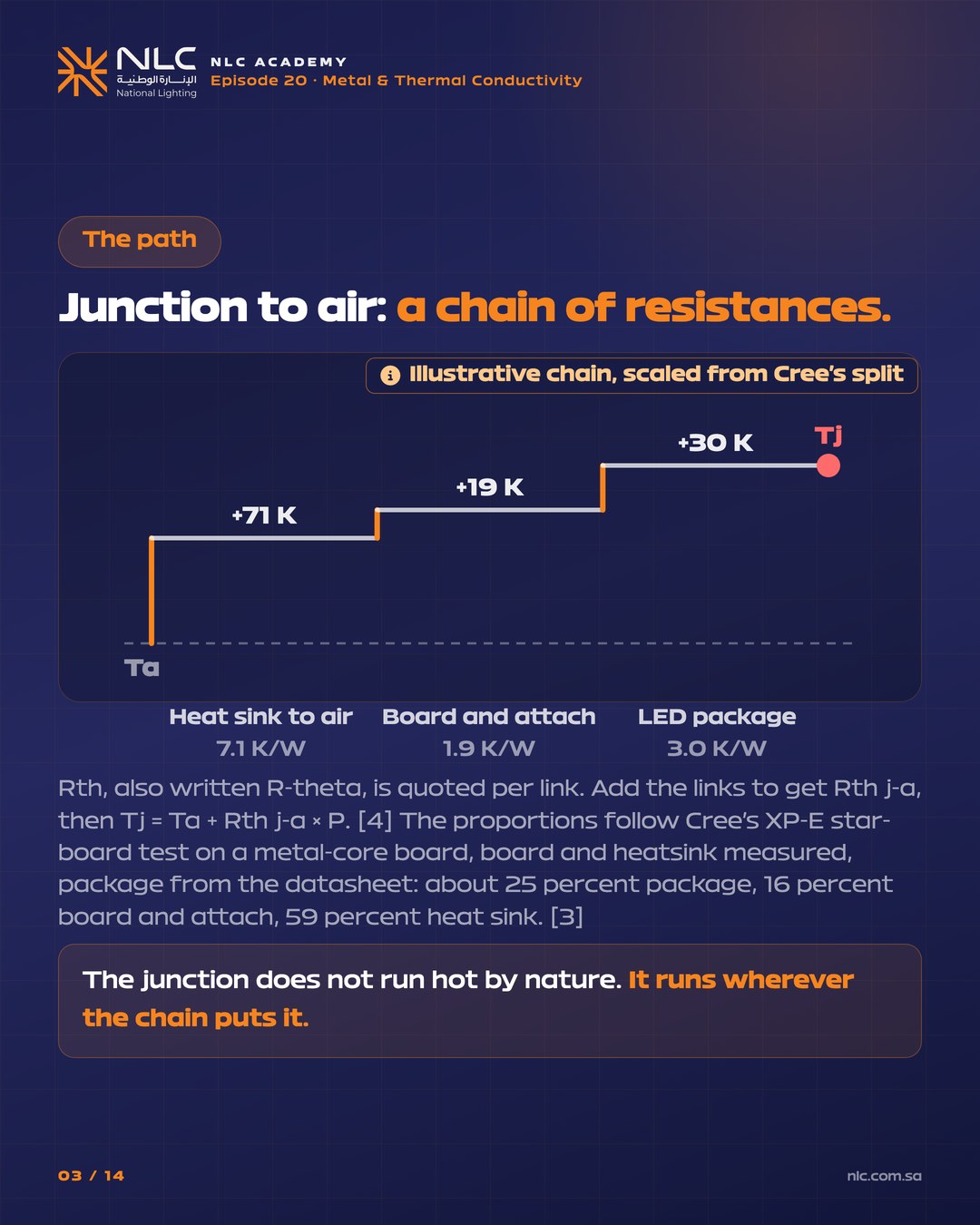

R-theta is the thermal resistance chain.

Heat travels Tj → solder → MCPCB → TIM → heatsink → ambient. Each interface adds thermal resistance (°C/W). A premium fixture totals < 5 °C/W; a budget one > 12 °C/W. At 10 W heat dissipation that's a 50 °C vs 120 °C rise, and the LED life ratio that follows.

MCPCB is the unsung hero.

A Metal-Core PCB has a thin dielectric on aluminium (1.5 W/m·K dielectric) instead of FR4 (0.3 W/m·K). Heat flows ~5× better. Premium fixtures use 2 mm aluminium-core MCPCB; budget ones use 1 mm FR4 with thermal vias, much worse thermal path.

Heatsink geometry follows physics, not aesthetics.

Natural convection wants tall, vertically oriented fins with 5–8 mm spacing. The fin height should be ~3× the spacing for optimal boundary-layer thinning. A horizontal heatsink loses 40% capacity vs the same area vertical.

Outdoor: black, not anodised, except for IR.

A bare aluminium heatsink has 0.05 emissivity, terrible at radiating heat. Anodised black raises it to 0.85, adding ~10% to total dissipation. Black powder-coat is fine; do not specify mirror-polished outdoor heatsinks. Inside an enclosed fixture, surface finish matters less.

Test the thermal path with a thermocouple, not a brochure.

Drill an M3 hole at the spec'd "tc" point. Run the fixture at rated current in a 25 °C ambient. After 30 minutes, the thermocouple reading should match the datasheet ±2 °C. If not, the fixture is under-spec'd thermally, even if it looks identical to a brand you trust.
