Medium Voltage

Medium Voltage Package Substations

Built with Schneider Electric: RM6, SM AirSeT, Trihal, PrismaSeT
Free engineering tools
Amperage Cable sizing Voltage drop Lux Power factor Solar EV Charger Transformer LED Savings CCTV
Open Tools

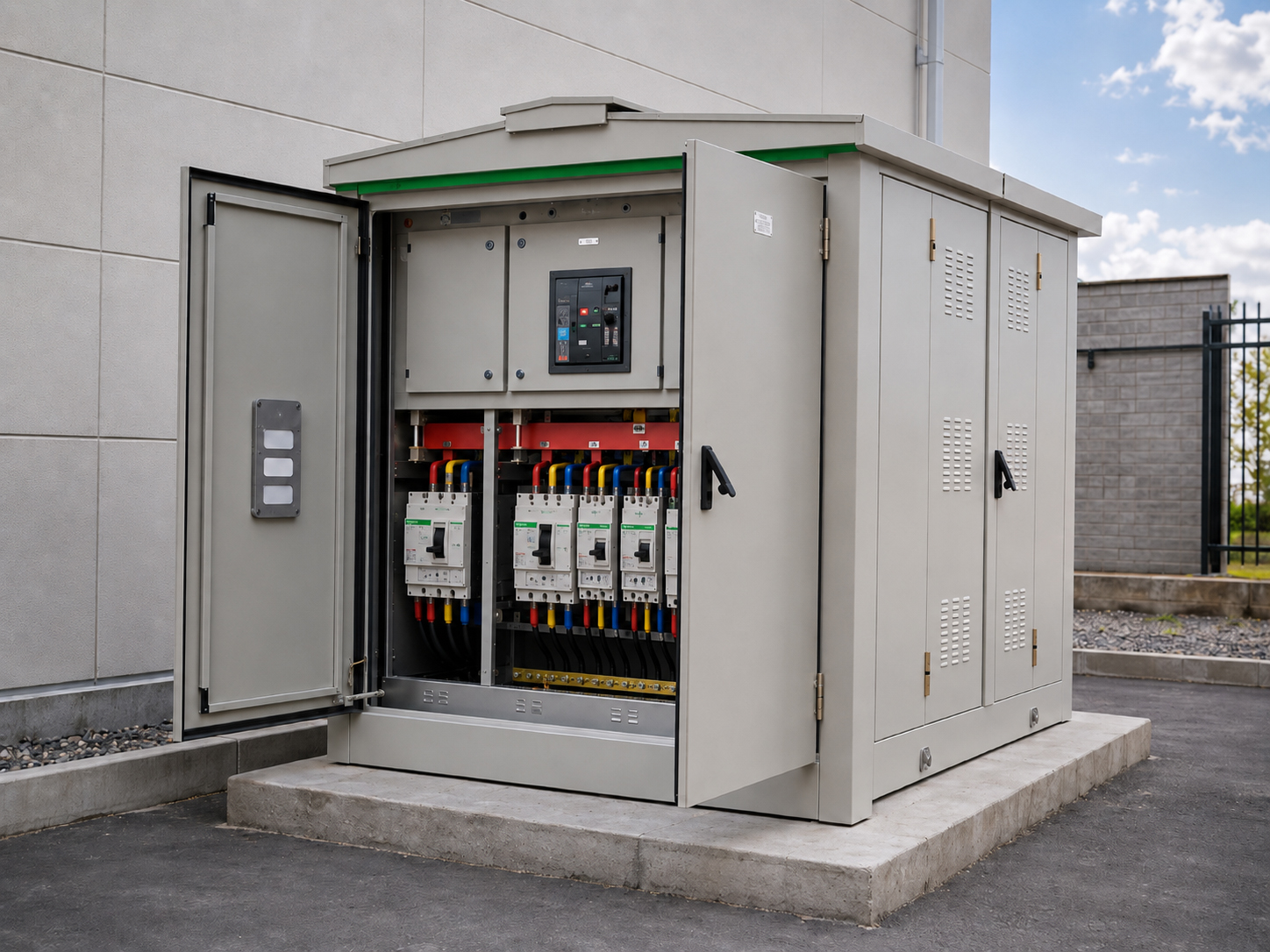

A package substation combines an MV ring main unit, distribution transformer, and LV switchboard inside a single metal kiosk or concrete enclosure. The complete unit is factory-built, factory-tested, and shipped to site for fast installation, ideal for outdoor or remote locations.

Schneider Electric's MV/LV package substations integrate RM6 or SM AirSeT switchgear, Trihal cast-resin transformers, and PrismaSeT LV panels in a single weatherproof enclosure, ready for direct cable connection on site.

Schneider Electric Source

For full technical specifications, datasheets, and certifications, refer to Schneider Electric's official product range:

RM6, SM AirSeT, Trihal, PrismaSeT

Package Substation

Key Features

  • Factory-built and tested as one assembly
  • RM6 or SM AirSeT MV ring main unit
  • Trihal dry-type or oil-filled transformers
  • PrismaSeT LV switchboard
  • Steel kiosk or concrete enclosure options

Typical Applications

  • Compounds, residential developments
  • Industrial sites and warehouses
  • Solar farms and infrastructure projects
  • Urban distribution networks

Need a quote for Medium Voltage Package Substations?

Send us your project specs. Our power engineers will respond with a configured proposal.

Request a Quote All Power & Control Engineering Tools
FAQ

Frequently asked questions

What does a package substation include?

A package substation combines an MV ring main unit, distribution transformer, and LV switchboard inside a single metal kiosk or concrete enclosure.

Is it assembled and tested before delivery?

Yes. The complete unit is factory-built, factory-tested, and shipped to site for fast installation, making it ideal for outdoor or remote locations.

Which components are integrated in NLC's package substations?

They integrate RM6 or SM AirSeT MV switchgear, Trihal cast-resin (dry-type) or oil-filled transformers, and PrismaSeT LV panels in a single weatherproof enclosure.

What enclosure options are available?

Steel kiosk or concrete enclosure options are offered, ready for direct cable connection on site.

Where are package substations typically used?

Typical applications include compounds and residential developments, industrial sites and warehouses, solar farms and infrastructure projects, and urban distribution networks.

What are the advantages of a packaged substation over a built-up substation?

Because the MV switchgear, transformer, and LV panel are factory-built and factory-tested as one assembly, site work is reduced to placing the kiosk and connecting cables, which shortens installation time and improves quality control.

Can NLC tailor the rating and configuration to my project?

Yes. The MV ring main unit, transformer rating, LV switchboard, and enclosure type are configured to each project's load and site conditions, with dry-type or oil-filled transformer options.

Are package substations suitable for outdoor installation in the Gulf climate?

Yes. The steel kiosk or concrete enclosure is weatherproof and designed for outdoor or remote locations, making it well suited to demanding outdoor environments.
