Lighting panels are dedicated distribution boards built for lighting circuits. They group MCBs, contactors, and lighting controllers (KNX, DALI, or relay-based) so that scenes, dimming, and timers can be programmed centrally for an entire floor or zone.

Schneider Electric's KNX system, combined with Acti9 protection and iACT lighting contactors, enables programmable scene control, daylight harvesting, and BMS integration in a single panel.

Schneider Electric Source

For full technical specifications, datasheets, and certifications, refer to Schneider Electric's official product range:

KNX, Acti9, iACT, Easy9, ComPact NSX, EasyPact CVS

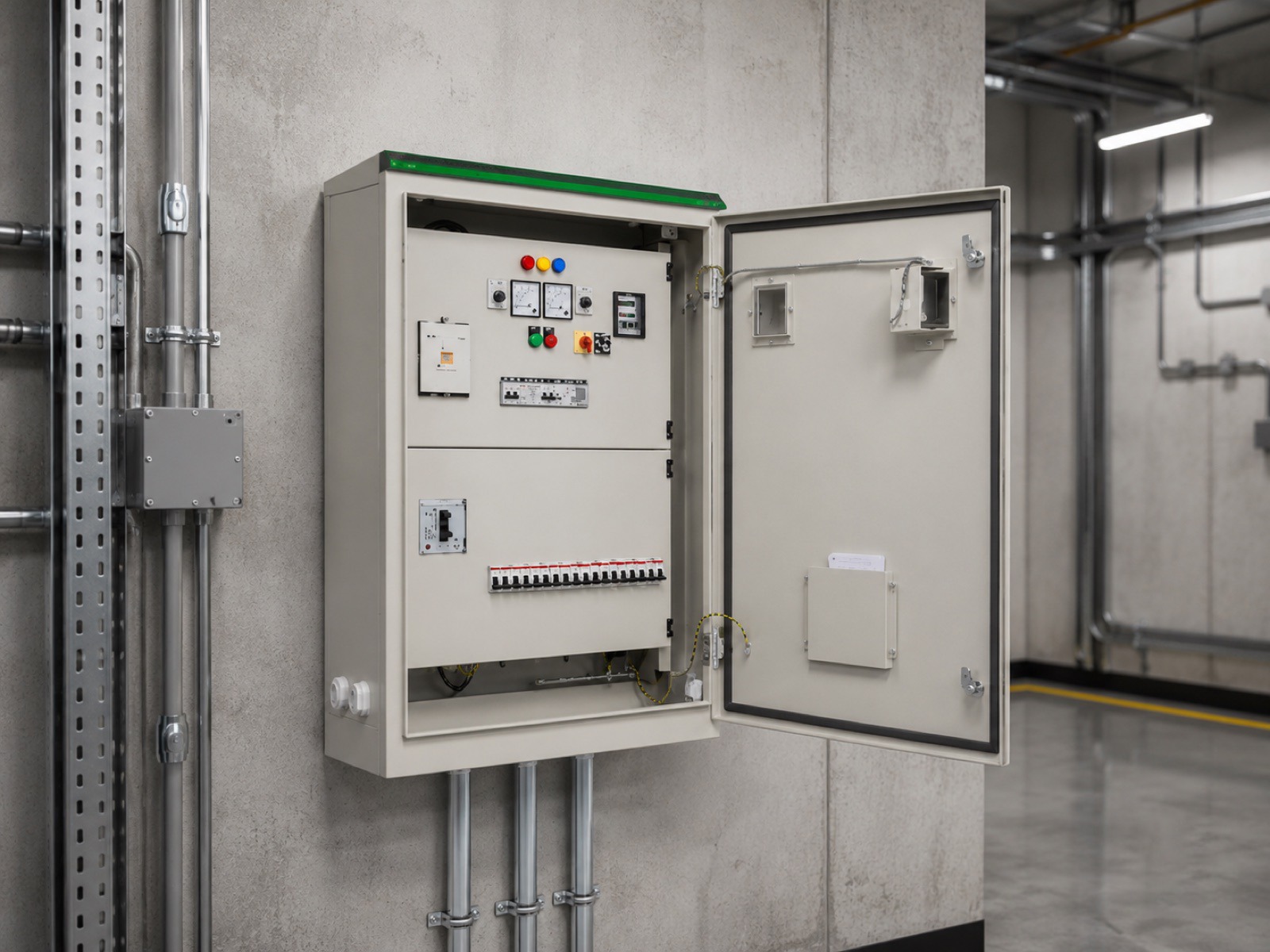

Lighting control panel

Key Features

  • KNX and DALI lighting control integration
  • iACT lighting contactors and timers
  • Scene programming and daylight harvesting
  • BMS / SCADA integration via gateways
  • Manual override and emergency lighting circuits

Typical Applications

  • Office and commercial lighting
  • Hospital corridors and clinical areas
  • Retail malls and hospitality venues
  • Public buildings, mosques, and cultural sites

Need a quote for Lighting Panels?

Send us your project specs. Our power engineers will respond with a configured proposal.

Request a Quote All Power & Control Engineering Tools
FAQ

Frequently asked questions

What is a lighting panel?

Lighting panels are dedicated distribution boards built for lighting circuits. They group MCBs, contactors, and lighting controllers (KNX, DALI, or relay-based) so scenes, dimming, and timers can be programmed centrally for an entire floor or zone.

Which Schneider Electric system powers NLC's lighting panels?

Schneider Electric's KNX system, combined with Acti9 protection and iACT lighting contactors, enables programmable scene control, daylight harvesting, and BMS integration in a single panel.

What lighting control features do these panels offer?

They support KNX and DALI lighting control integration, iACT lighting contactors and timers, scene programming and daylight harvesting, and BMS / SCADA integration via gateways.

Do lighting panels include manual override and emergency circuits?

Yes. The panels provide manual override and emergency lighting circuits.

Where are lighting panels typically used?

Typical applications include office and commercial lighting, hospital corridors and clinical areas, retail malls and hospitality venues, and public buildings, mosques, and cultural sites.

Can lighting panels integrate with a BMS or SCADA system?

Yes. The panels support BMS / SCADA integration via gateways, allowing lighting scenes, dimming, and timers to be coordinated with the wider building management system.

Do the panels support both KNX and DALI lighting control?

Yes. They support KNX and DALI lighting control integration, with iACT lighting contactors and timers, scene programming, and daylight harvesting.

How do I request a configured lighting panel from NLC?

Send us your lighting layout and control requirements. Our power engineers will respond with a configured proposal based on the Schneider Electric KNX, Acti9, iACT, Easy9, ComPact NSX, and EasyPact CVS ranges.
