Low Voltage

Automatic Transfer Switches (ATS)

Built with Schneider Electric: TransferPacT Active, MasterPact NW/MTZ, EasyPact MVS, ComPact NS, EasyPact CVS
Free engineering tools
Amperage Cable sizing Voltage drop Lux Power factor Solar EV Charger Transformer LED Savings CCTV
Open Tools

An Automatic Transfer Switch monitors the utility supply and, on detection of a fault or outage, sends a start signal to the standby generator and transfers the load automatically. When utility power returns, the ATS switches back and shuts down the generator.

Schneider Electric's TransferPacT Active ATS provides programmable transfer logic, voltage and frequency monitoring, and onboard event logging, available with ComPact MCCB or MasterPact ACB switching elements.

Schneider Electric Source

For full technical specifications, datasheets, and certifications, refer to Schneider Electric's official product range:

TransferPacT Active, MasterPact NW/MTZ, EasyPact MVS, ComPact NS, EasyPact CVS

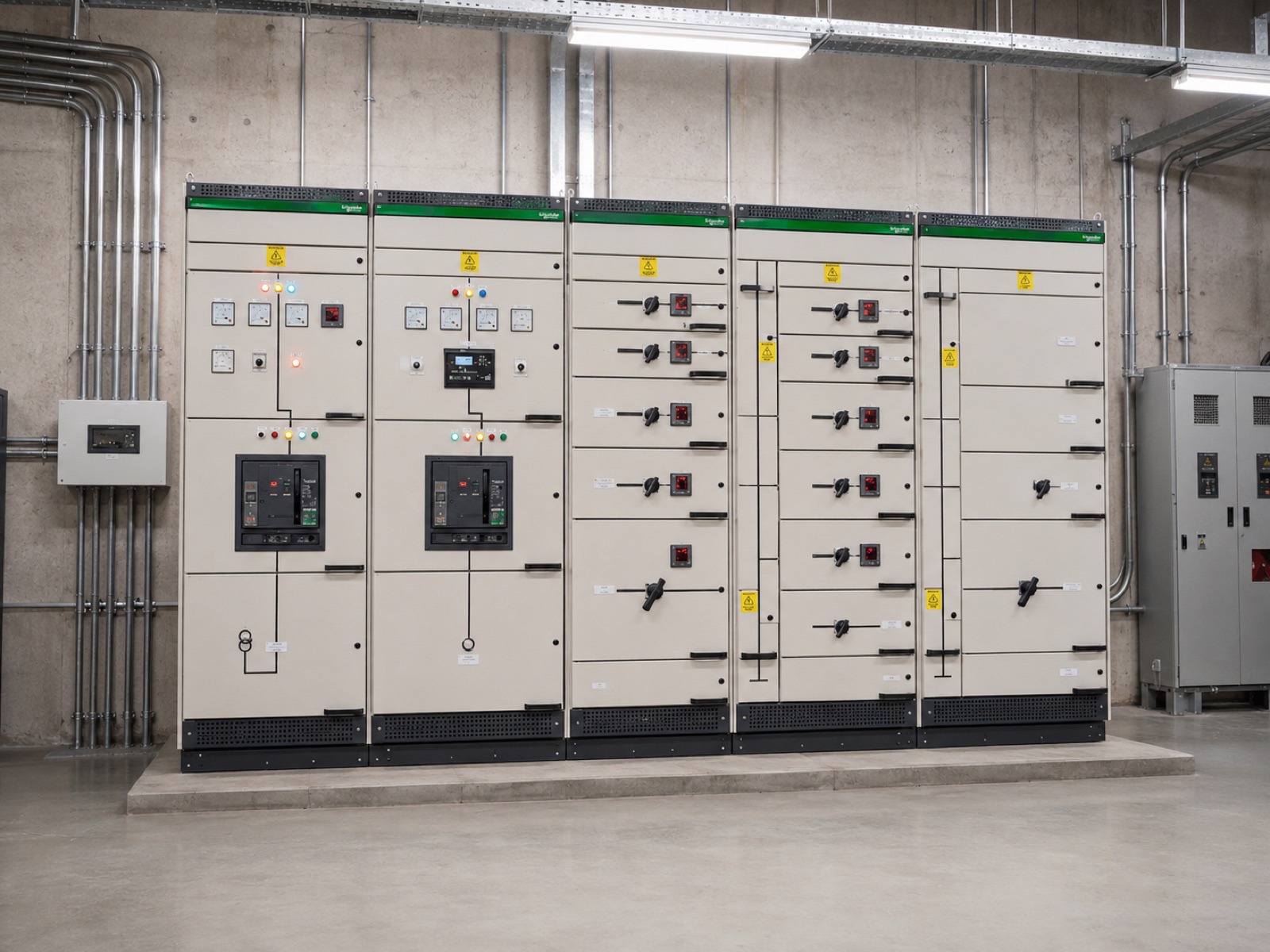

ATS panel installation

Key Features

  • Programmable utility / generator transfer logic
  • Voltage, frequency, and phase monitoring
  • Adjustable transfer and re-transfer time delays
  • Modbus communication and BMS integration
  • Up to 6300 A current rating

Typical Applications

  • Hospitals and healthcare facilities
  • Data centres and telecom sites
  • Government and security buildings
  • Hotels, airports, and 24/7 commercial sites

Need a quote for Automatic Transfer Switches (ATS)?

Send us your project specs. Our power engineers will respond with a configured proposal.

Request a Quote All Power & Control Engineering Tools
FAQ

Frequently asked questions

How does an Automatic Transfer Switch (ATS) work?

An ATS monitors the utility supply and, on detecting a fault or outage, sends a start signal to the standby generator and transfers the load automatically. When utility power returns, it switches back and shuts the generator down.

What is the maximum current rating of NLC's ATS?

NLC's Automatic Transfer Switches are rated up to 6300 A.

Which Schneider Electric products are NLC's ATS built with?

They are built with Schneider Electric's TransferPacT Active, MasterPact NW/MTZ, EasyPact MVS, ComPact NS, and EasyPact CVS ranges, available with ComPact MCCB or MasterPact ACB switching elements.

Can the ATS integrate with a building management system?

Yes. The ATS offers Modbus communication and BMS integration, alongside programmable transfer logic and voltage, frequency, and phase monitoring.

Where are NLC's ATS systems typically used?

Typical applications include hospitals and healthcare facilities, data centres and telecom sites, government and security buildings, and hotels, airports, and 24/7 commercial sites.

Can the transfer and re-transfer time delays be adjusted?

Yes. The ATS provides adjustable transfer and re-transfer time delays, alongside programmable transfer logic, so the changeover can be tuned to the generator and load behaviour on each site.

Is the ATS supplied with ACB or MCCB switching elements?

Both options are available. The TransferPacT Active ATS can be configured with ComPact MCCB switching elements or MasterPact ACB switching elements depending on the current rating and project requirements.

How do I request a configured ATS proposal from NLC?

Send us your project specifications, including supply ratings and load details. Our power engineers will respond with a configured proposal based on the Schneider Electric TransferPacT Active, MasterPact NW/MTZ, EasyPact MVS, ComPact NS, and EasyPact CVS ranges.
