IP65 industrial luminaire from 13W to 58W at 120LM/W, with emergency and sensor options

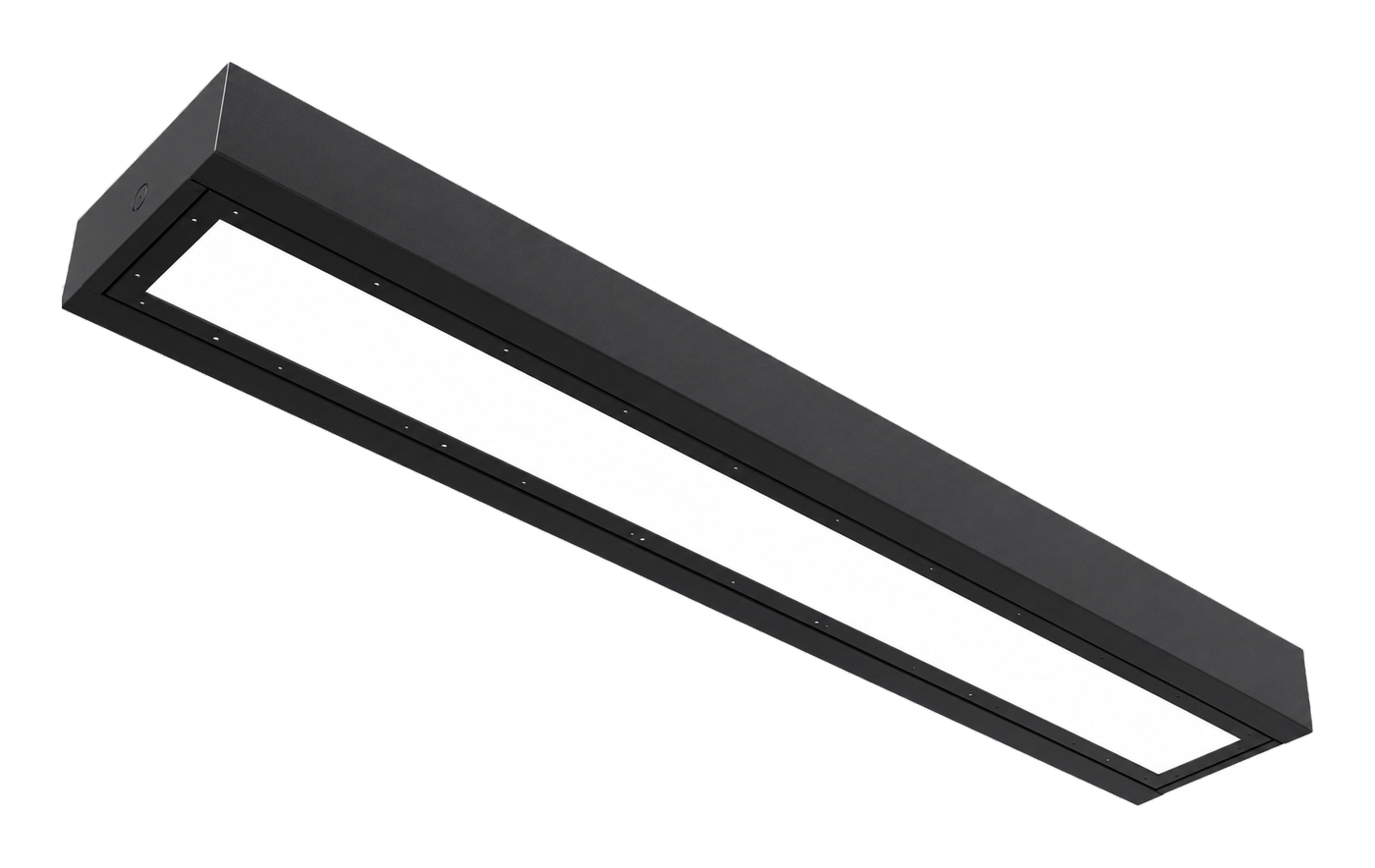

Vigilant is an IP65 industrial luminaire offered in ten wattage steps from 13W to 58W, all at 120LM/W and a 108° beam angle, giving 1560LM to 6960LM. It runs on 200-240VAC at 50/60Hz as a Class I fitting with a power factor above 0.7, and the spread lists emergency and sensor versions. Colour temperatures are 3000K, 4000K and 5000K, with CRI above 80 as standard or above 90 on request, and a rated life of 100,000h.
| Input Voltage | 200-240VAC | 50/60Hz |
| Power Factor | >0.7 |
| Protection Class | Class I |
| Ingress Protection | IP65 |
| Efficiency | 120LM/W |
| CRI | Standard: >80 / Optional: >90 |
| Beam Angle | 108° |
| Lifetime | 100,000h |
| CCT Options | 3000K (Warm), 4000K (Daylight), 5000K (Daylight) |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-VI | 13W | 120LM/W | 1560LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 15W | 120LM/W | 1800LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 18W | 120LM/W | 2160LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 21W | 120LM/W | 2520LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 27W | 120LM/W | 3240LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 32W | 120LM/W | 3840LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 38W | 120LM/W | 4560LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 41W | 120LM/W | 4920LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 50W | 120LM/W | 6000LM | 108° | Standard: >80 / Optional: >90 |
| NLC-VI | 58W | 120LM/W | 6960LM | 108° | Standard: >80 / Optional: >90 |
* Values as published in the NLC product catalogue
