LED Flexibles
MOSAIC-ASM
DC24V IP67 CSP LED strip with yellowing-resistant lens
IP67
Class III
Yellowing resistant lens
18W
Power
1,738-1,880 lm
Lumens
97-104 lm/W
Efficiency
50×70° / 12°
Beam Angle
>90
CRI
35,000h
Lifetime
DC24V IP67 CSP LED strip with yellowing-resistant lens

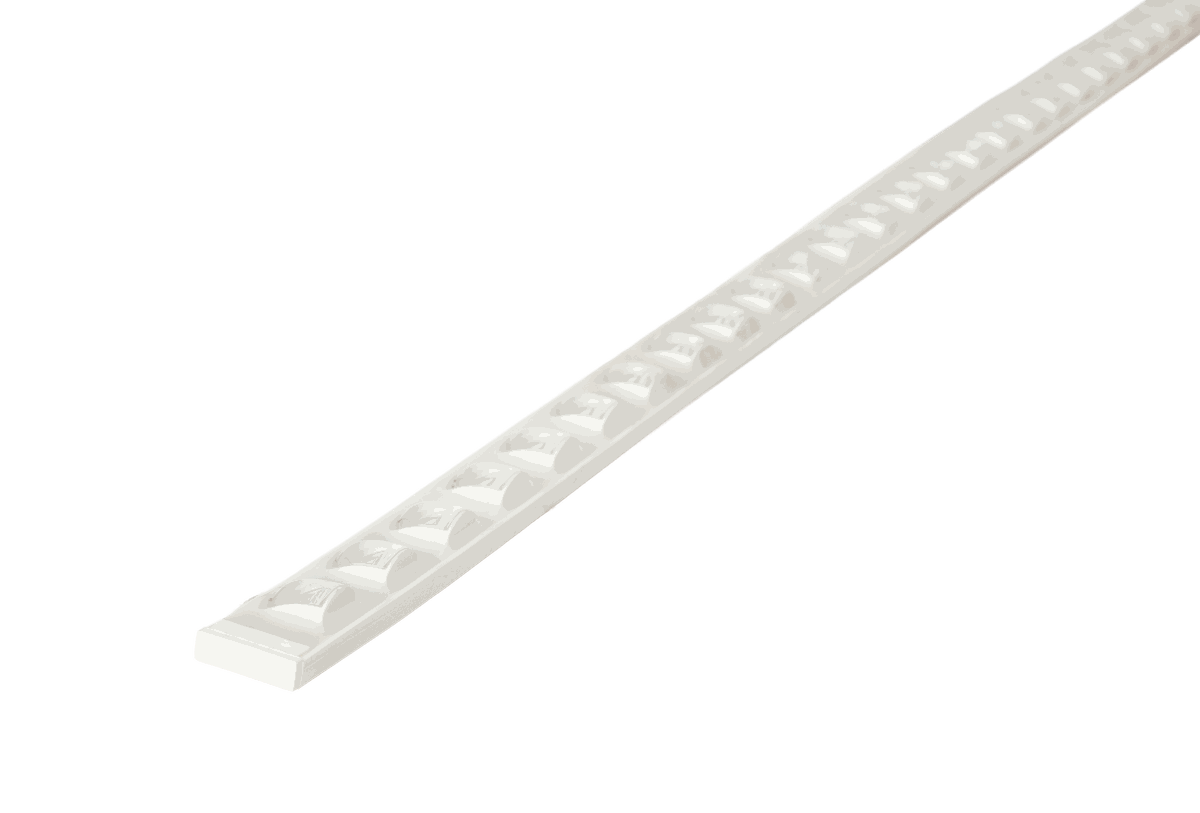

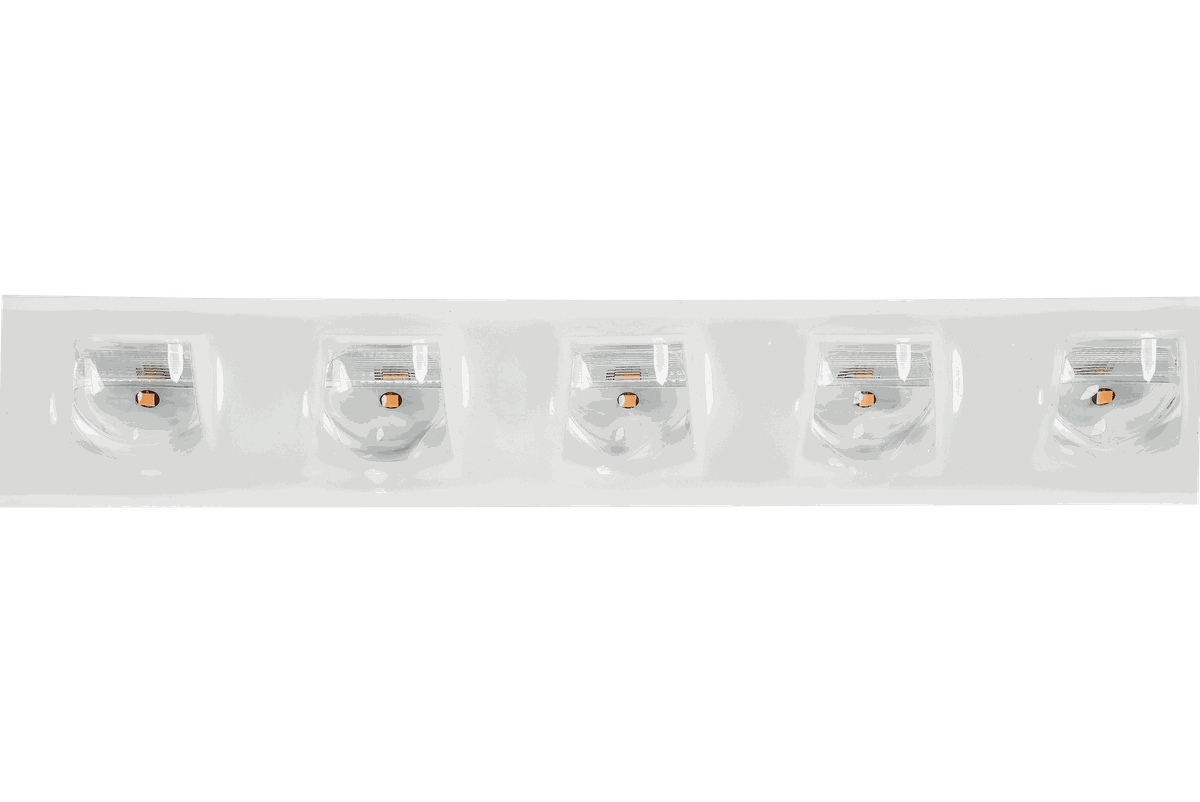

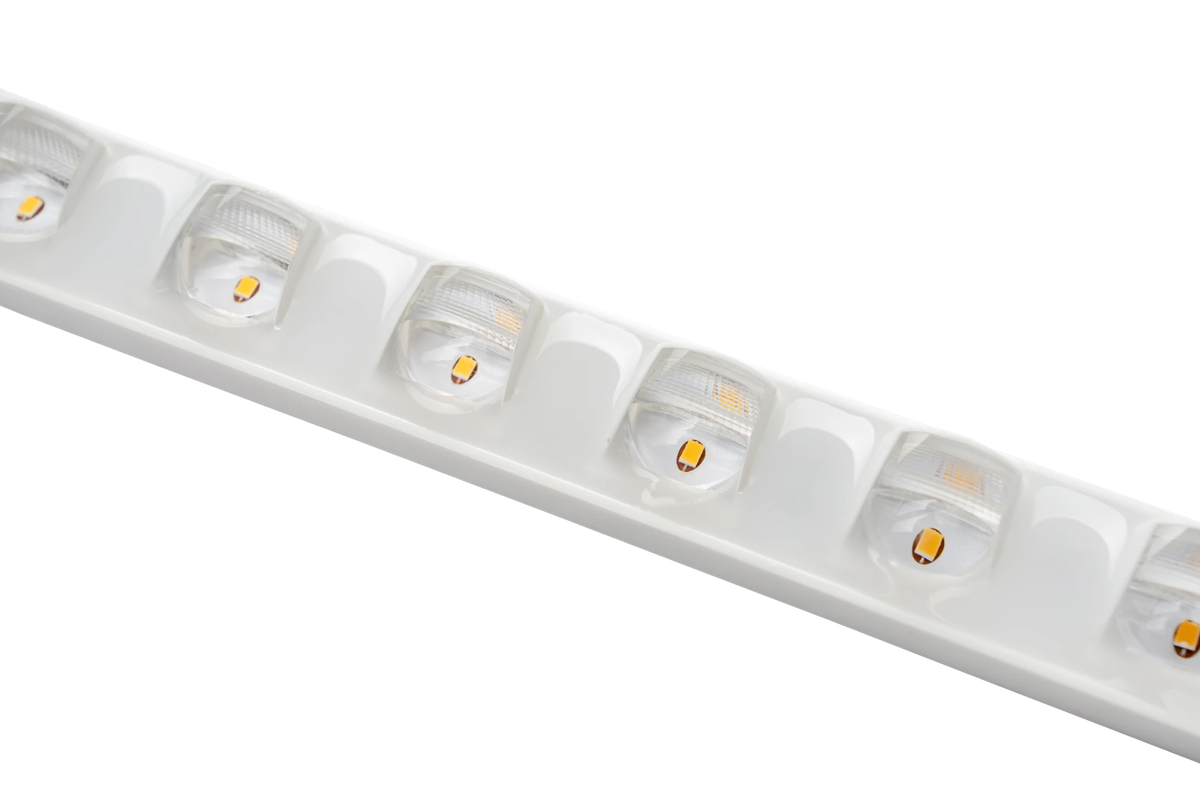

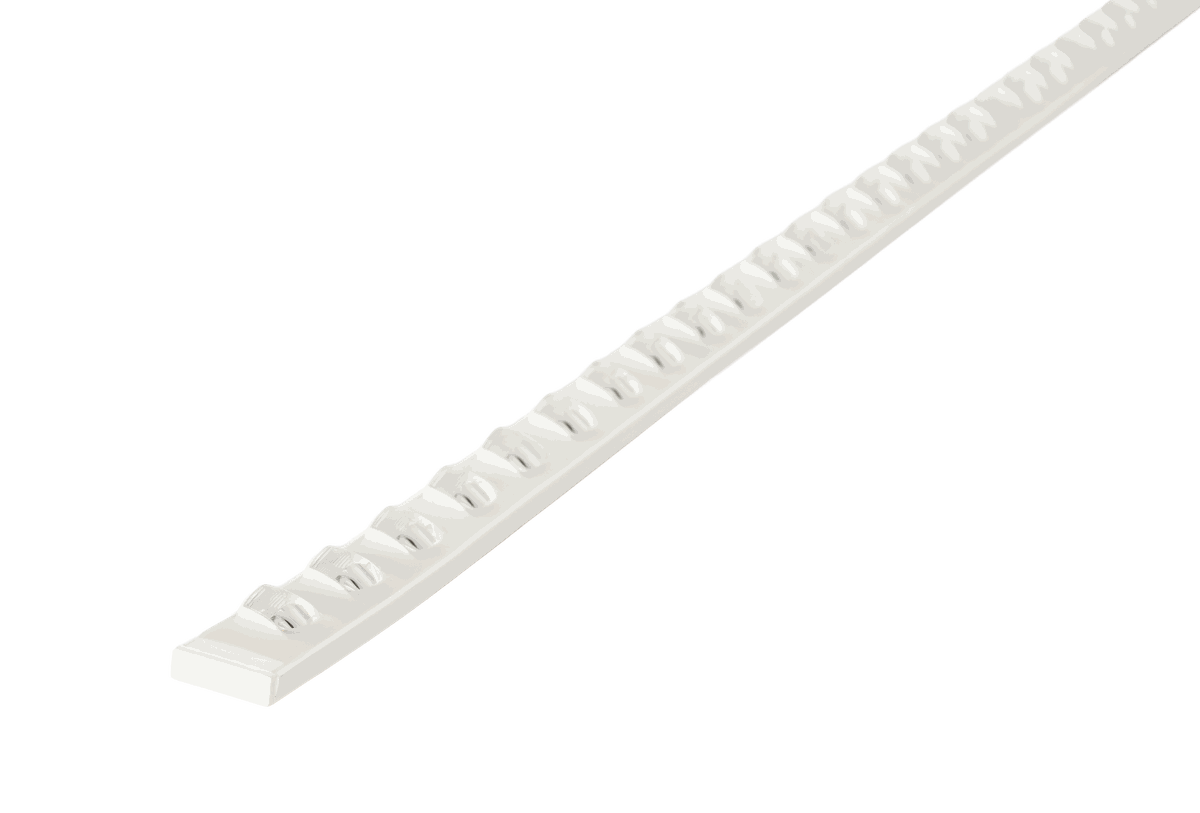

MOSAIC-ASM is a DC24V, IP67 LED strip built with CSP LEDs and a yellowing-resistant lens. It is rated 18W with 1,738 to 1,880 lm, CRI above 90 and a 35,000h lifetime.
Maximum run is 5m. Model NLC-MOS.
| Input Voltage | DC24V |
| Electrical Class | Class III |
| LED Type | CSP LEDs |
| Ingress Protection | IP67 |
| Lens | Yellowing resistant |
| Lifetime | 35,000h |
| Max Run | 5 m |
| Beam Angle | 50×70° / 12° |
| CRI | Standard >90 |
| Model | Power | Efficiency | Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MOS | 18W | 97-104 lm/W | 1,738-1,880 lm | 50×70° / 12° | >90 |
* Values from the NLC catalog (Commercial Lights), page 138
