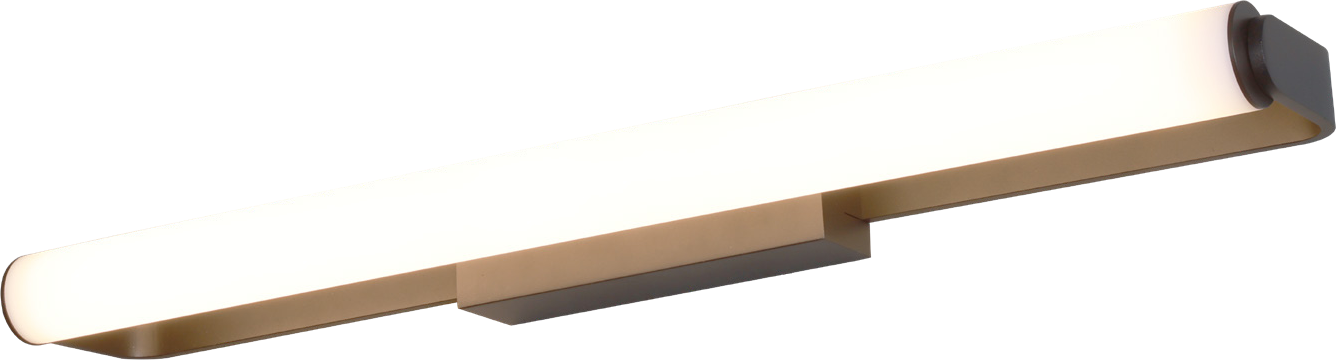

IP 65 luminaire in 12W, 15W and 20W at 75 lm/W, in four finishes.
Moderna is an IP 65, Class II luminaire available in 12W, 15W and 20W, rated 900, 1125 and 1500 lumens at 75 lm/W with a 217 degree distribution. It runs on 220-240VAC, 50/60 Hz with a power factor above 0.9 and THD below 10, uses SMD LEDs at 4000K, and offers CRI of >80 as standard or >90 as an option. Rated life is 30,000 hours, and the catalog lists Black, Silver, White and Gold finishes.
| Input Voltage | 220-240VAC |
| Frequency | 50/60 Hz |
| Power Factor | >0.9 |
| THD | <10 |
| Insulation Class | Class II |
| Ingress Protection | IP 65 |
| Finishes | Black, Silver, White, Gold |
| Light Source | SMD |
| CCT | 4000K (Daylight) |
| CRI | Standard: >80, Optional: >90 |
| Lifetime | 30,000h |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MRA | 12W | 75LM/W | 900LM | 217° | Standard: >80, Optional: >90 |
| NLC-MRA | 15W | 75LM/W | 1125LM | 217° | Standard: >80, Optional: >90 |
| NLC-MRA | 20W | 75LM/W | 1500LM | 217° | Standard: >80, Optional: >90 |
* Values as published in the NLC product catalogue
