Track module with adjustable cylinder spots

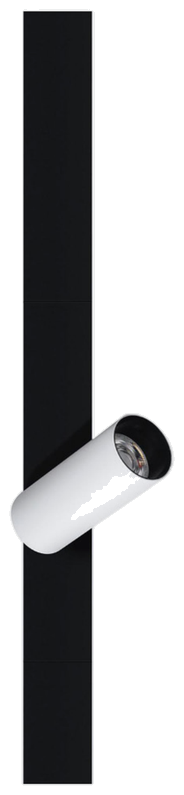

MARCO TRACK turns the MARCO profile into a track system: cylinder spotlights mount on a 283mm module and rotate and tilt to follow displays. Each module delivers 12.7W and 1,366 lm with 12°, 24°, or 38° beams, and assemblies scale from 45W to 122W and up to 12,940 lm at CRI ≥90.
The module powers from the same 220V channel as every MARCO SYSTEM component, so track heads, line modules, and sensors can share one continuous profile.
| Model | NLC-MO |
| Size (L×W×H) | 283 × 55 × 140mm |
| Module Power | 12.7W |
| Module Flux | 1,366 lm |
| Operating Voltage | 36.5V |
| Current | 350mA |
| CRI | >90 |
| Material | Die-cast / Extruded Aluminum |
| Input Voltage | 220–240V · 50/60Hz |
| CCT | 3000K · 4000K |
| Beam Angle | 12° / 24° / 38° |
| IP Rating | IP40 |
| Service Life | LM80 > 50,000h |
| Dimming | DALI (optional) |
| Model | Power | Luminous Flux | CCT | CRI | Beam |
|---|---|---|---|---|---|
| NLC-MO-45W-3K | 45W | 4,760 lm | 3000K | 90 | 120°/38° |
| NLC-MO-58W-3K | 58W | 4,760 lm | 3000K | 90 | 120°/38° |
| NLC-MO-90W-3K | 90W | 9,520 lm | 3000K | 90 | 120°/38° |
| NLC-MO-122W-3K | 122W | 12,940 lm | 3000K | 90 | 120°/38° |
All models: IP40 · 220V input · LM80 > 50,000h. 4000K available on request.
