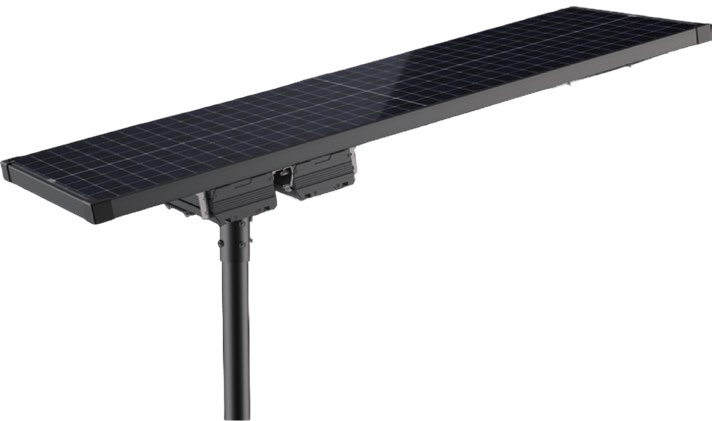

Solar LED luminaire with monocrystalline silicon solar panels, LiFePO4 battery and microwave motion sensor.
Integray is a solar LED luminaire specified with monocrystalline silicon solar panels, a LiFePO4 battery and a microwave motion sensor, rated IP 65 and IK08. It is offered at 60W, 80W and 120W, producing 12600LM, 16000LM and 22800LM at 210LM/W, 200LM/W and 190LM/W respectively from an SMD 3030/5050 source over a 150 by 75 degree distribution. Colour temperatures are 3000K, 4000K, 5700K and 6500K, CRI is above 70 as standard and above 80 optional, rated life is 50,000 hours, and the catalog states it resists up to level 13 typhoon conditions.
| Input Voltage | DC 12V / DC 24V | 50/60Hz |
| Battery | LiFePO4 |
| Solar Panel | Monocrystalline silicon |
| Control | Microwave motion sensor |
| Ingress Protection | IP 65 |
| Wind Resistance | Resist up to level 13 typhoon |
| Impact Resistance | IK08 |
| LED Source | SMD 3030/5050 |
| Efficiency | 190LM/W - 210LM/W |
| CRI | Standard: >70 | Optional: >80 |
| Lifetime | 50,000h |
| Colour Appearance | 3000K Candlelight, 4000K Warm, 5700K Daylight, 6500K Daylight |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI | Source |
|---|---|---|---|---|---|---|
| NLC-INT | 60W | 210LM/W | 12600LM | 150°×75° | Standard: >70 | Optional: >80 | SMD 3030/5050 |
| NLC-INT | 80W | 200LM/W | 16000LM | 150°×75° | Standard: >70 | Optional: >80 | SMD 3030/5050 |
| NLC-INT | 120W | 190LM/W | 22800LM | 150°×75° | Standard: >70 | Optional: >80 | SMD 3030/5050 |
* Values as published in the NLC product catalogue
