Innovative Shapes, Powerful Light
The CHESS designer luminaire brings architectural creativity to ceiling lighting with six distinct shapes, Block, Line, Master, Hexa, Way, and Square. Available for recessed, surface, or suspended mounting, it suits offices, hospitals, educational facilities, and hospitality spaces where light becomes part of the interior design.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 10–85% RH |
| Ingress Protection | IP20 |
| Dimensions | 6 shapes, see Features tab |
| Housing | Cold Rolled Steel |
| Mounting | Recessed / Surface / Suspended |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black · Gray · White |
| LED Type | SMD5050 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | - |
| Block (NLC-CHB) | L1196 × W296 × H12 mm |
| Line (NLC-CHL) | L1200 × W155 × H24.5 mm |
| Master (NLC-CHM) | L596 × W596 × H25.5 / H12 mm |
| Hexa (NLC-CHH) | L550 × W635 × H26.2 mm |

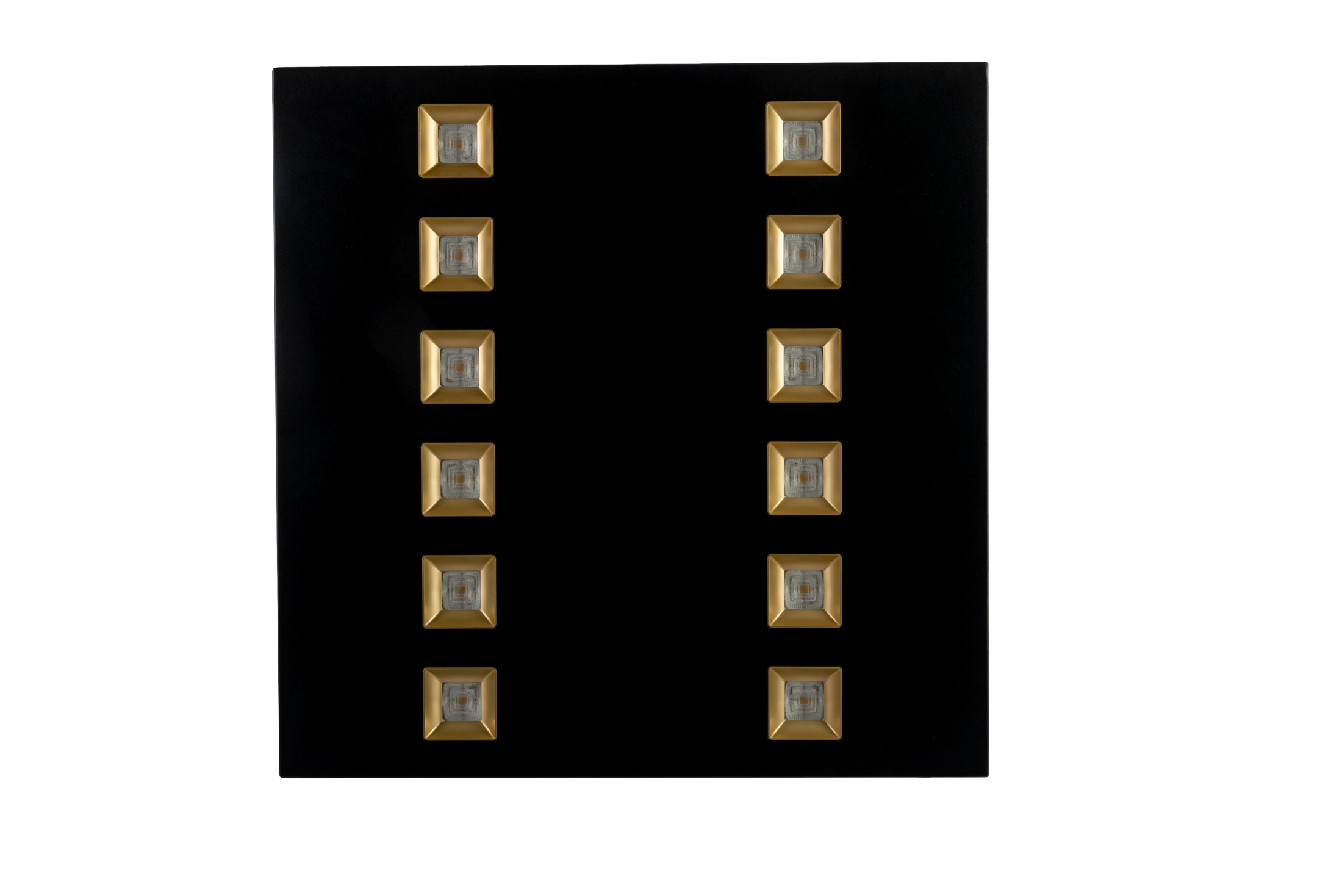

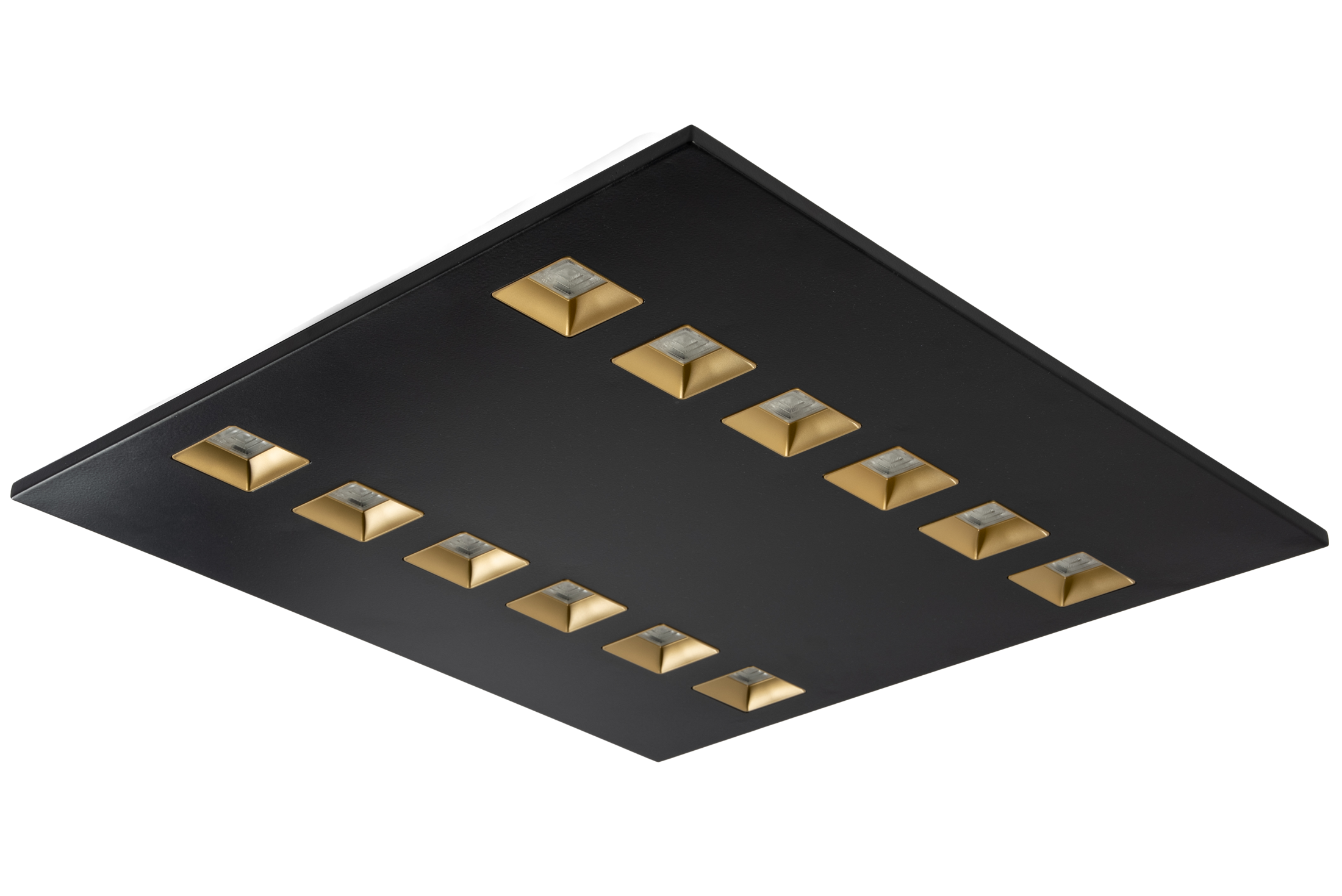

| Way (NLC-CHW) | L596 × W596 × H25.5 / H12 mm |
| Square (NLC-CHS) | L596 × W596 × H25.5 / H12 mm |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-CHB (Block) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHL (Line) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHM (Master) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHH (Hexa) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHW (Way) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
| NLC-CHS (Square) | 35W | 100 lm/W | 3,500 lm | 40° | >80 std · >90 opt |
* Values based on CCT 4000K | ±10% tolerance
