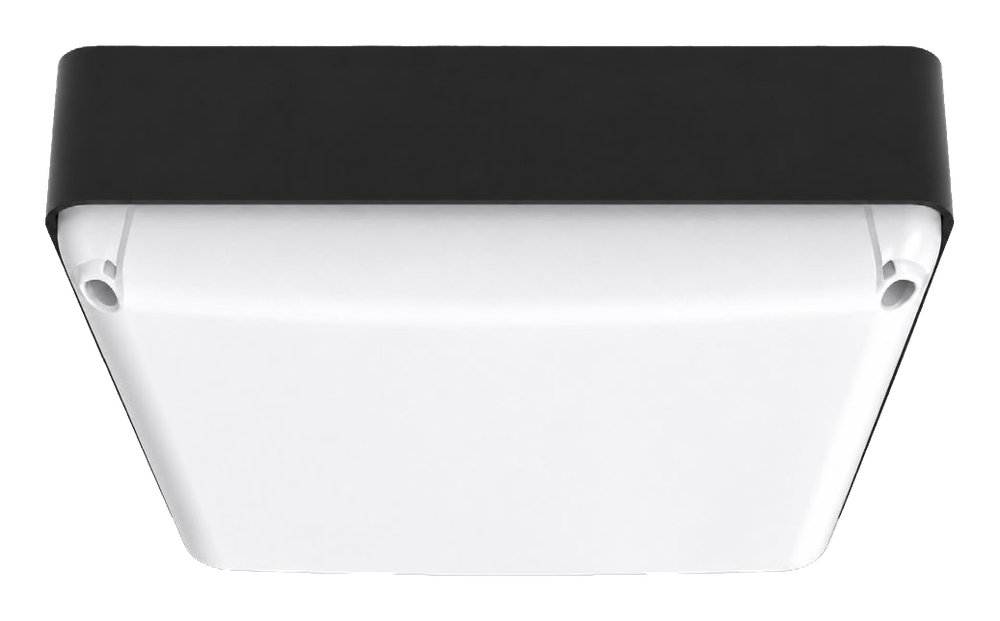

12W to 20W IP65 industrial luminaire at 120 LM/W
Bobcat is an industrial LED luminaire rated IP65 and available at 12W, 16W and 20W, producing 1440LM, 1920LM and 2400LM respectively at 120 LM/W. It runs on 200-240VAC at 50/60Hz as a Class I fitting with a power factor above 0.7, has a 125° beam angle, and is offered in 3000K, 4000K and 5000K with a CRI above 80 as standard and above 90 optional. Emergency and sensor versions are listed, and the rated life is 100,000h.
| Input Voltage | 200-240VAC | 50/60Hz |
| Power Factor | > 0.7 |
| Protection Class | Class I |
| Ingress Protection | IP65 |
| Available Options | Emergency, Sensor |
| Efficiency | 120 LM/W |
| CRI | Standard: >80, Optional: >90 |
| CCT | 3000K Warm, 4000K Daylight, 5000K Daylight |
| Lifetime | 100,000h |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-BO | 12W | 120LM/W | 1440LM | 125° | Standard: >80, Optional: >90 |
| NLC-BO | 16W | 120LM/W | 1920LM | 125° | Standard: >80, Optional: >90 |
| NLC-BO | 20W | 120LM/W | 2400LM | 125° | Standard: >80, Optional: >90 |
* Values as published in the NLC product catalogue
