Light that Lasts, Performance you Trust.

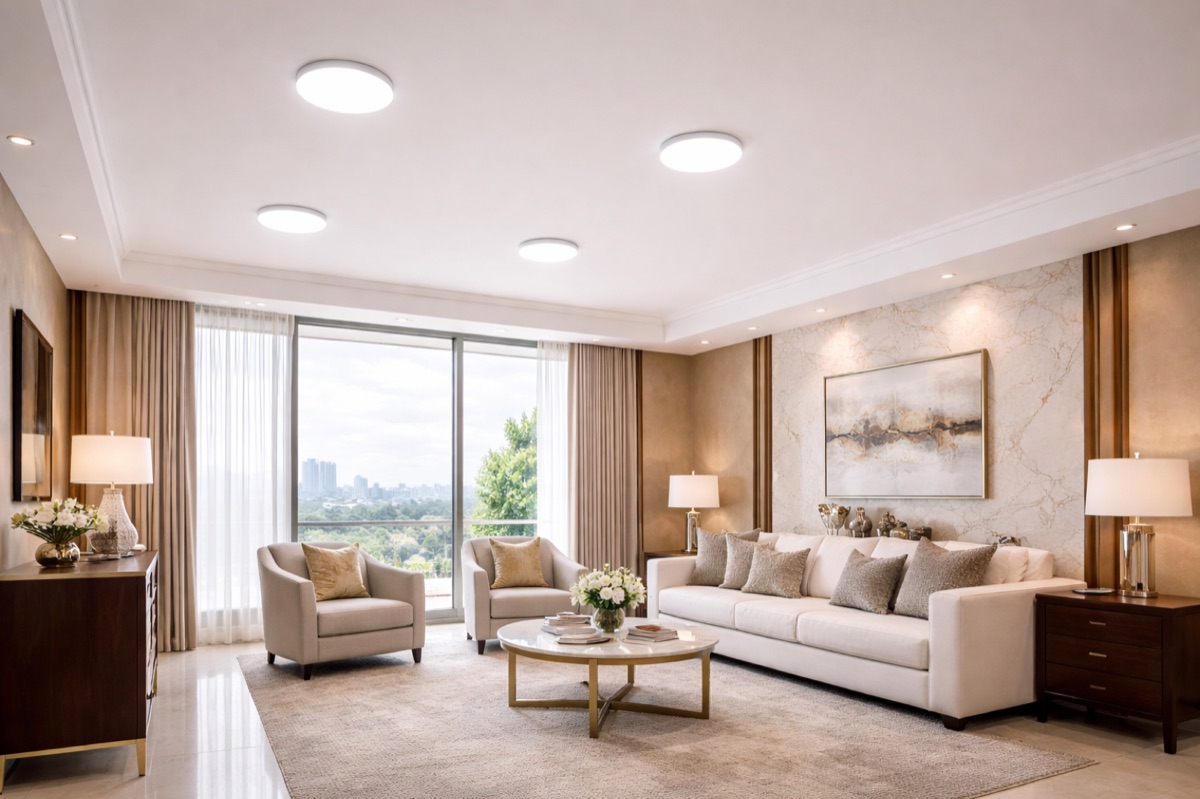

HARMONY is a high-efficiency surface-mounted or pendant LED panel that combines powerful illumination with energy efficiency. Sleek modern look and reliable performance, the perfect choice for quality and sustainability.
Two optical options: NLC-HP (Microprismatic diffuser, UGR <19) and NLC-HO (Opal diffuser). Available in 20W and 40W with optional dimming and emergency backup. SDCM <3 ensures consistent color across multiple fixtures.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Dimming | Optional |
| Emergency Backup | Optional |
| UGR | <19 (Microprismatic) |
| SDCM | <3 |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP44 / IP54 |
| Switching Cycles | >25,000 times |
| Dimensions (20W) | D300 × H64.30 mm (Microprismatic) / D300 × H69.30 mm (Opal) |
| Dimensions (40W) | D400 × H56 mm |
| Housing | Polycarbonate |
| Mounting | Surface Mounted / Hanging Pendant |
| Optics | Opal Diffuser or Microprismatic Diffuser |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Matte White · Matte Black |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 50,000h | L80B20 > 30,000h |
| Switching Cycles | >25,000 times |
| CRI | Standard >90 · Optional >95 |
| Flicker Free | Yes |
| Warranty | 5 Years |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-HP 20W (Microprismatic) | 20W | 2,960 lm | 110° | ≥90 | 148 lm/W · UGR <19 |
| NLC-HP 40W (Microprismatic) | 40W | 5,920 lm | 110° | ≥90 | 148 lm/W · UGR <19 |
| NLC-HO 20W (Opal) | 20W | 2,960 lm | 110° | ≥90 | 148 lm/W |
| NLC-HO 40W (Opal) | 40W | 5,920 lm | 110° | ≥90 | 148 lm/W |
* Values based on CCT 3000K | ±10% tolerance
