Heavy-Duty Construction for Demanding Environments
Built for demanding industrial environments, the STONY high bay delivers up to 140 lm/W with suspended, pole, and bracket mounting options. UV-resistant polycarbonate optics and IP65/IK08 ratings make it the right choice for factories, warehouses, and sport facilities.
| Input Voltage | 100–277VAC | 50/60Hz |
| Power Factor | >0.97 @ 220V / >0.90 @ 100–277V |
| THD | <10 @ 220V / <20 @ 100–277V |
| Surge Protection | Internal: DM 6KV/CM 10KV, External: 10KV/20KV |
| Electrical Class | Class I |
| Working Temperature | -20°C to +50°C |
| Dimensions | 100W: 270D×140H mm · 150W: 300D×140H mm · 200/240W: 400D×145H mm |
| Housing | Die-cast Aluminum |

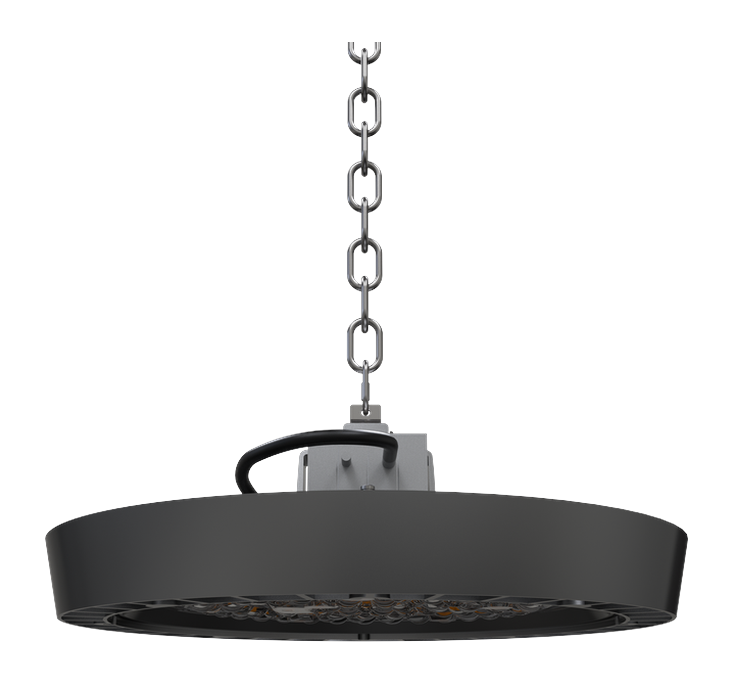

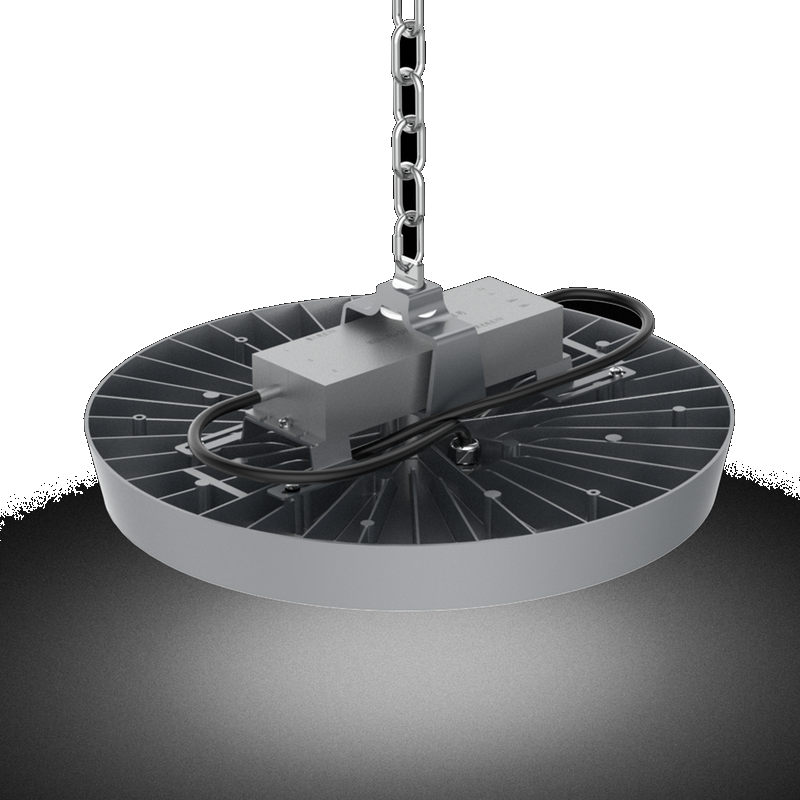

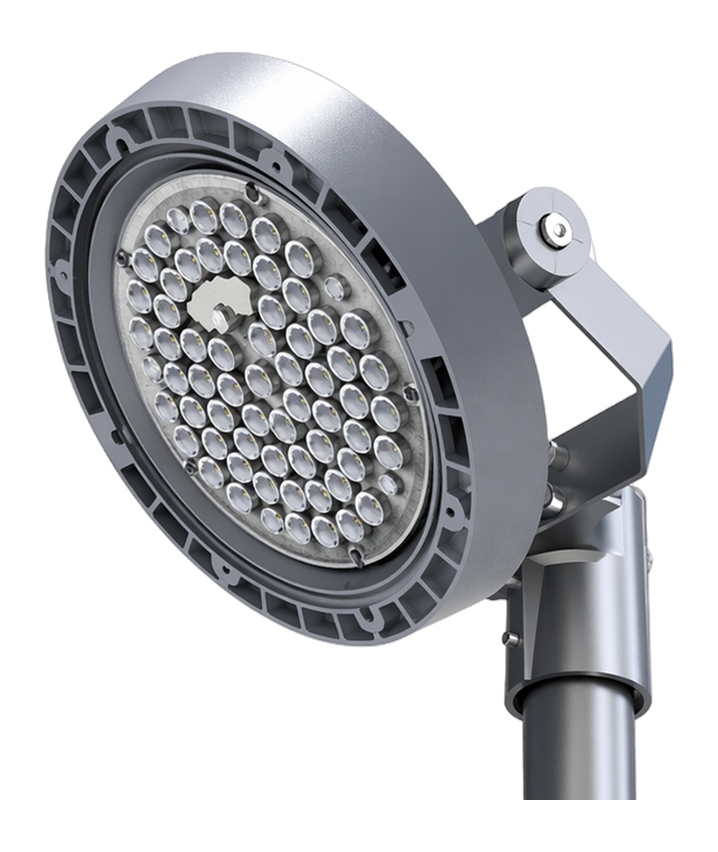

| Mounting | Suspended / Pole / Bracket Mounting |
| Optics | Polycarbonate UV-resistant |
| Body Finish | Powder-Coated |
| LED Type | SMD2835 |
| Lifetime | L70B50 >50,000h | L90B10 >25,000h |
| Dimming | 0-10V / PWM / Resistor |
| Switching Cycles | >25,000 |
| Emergency Backup | Optional |
| Flicker-Free | نعم |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SY | 100W | 140 lm/W | 14,000 lm | 60°/90° | >70 std · >80 opt |
| NLC-SY | 150W | 140 lm/W | 21,000 lm | 60°/90° | >70 std · >80 opt |
| NLC-SY | 200W | 140 lm/W | 28,000 lm | 60°/90° | >70 std · >80 opt |
| NLC-SY | 240W | 140 lm/W | 33,600 lm | 60°/90° | >70 std · >80 opt |
* Values based on CCT 4000K | ±10% tolerance
